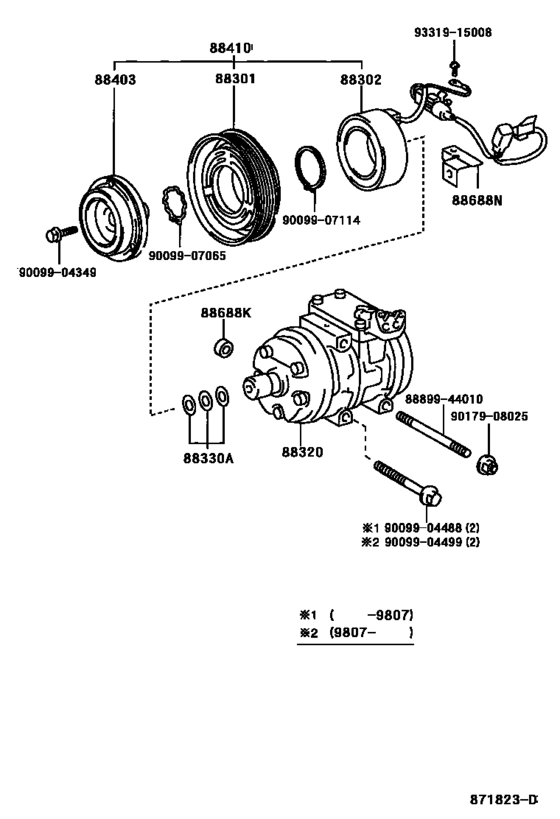

Heating & Air Conditioning - Compressor ([09.1997 - ] (9709- )CXM10) Diagram Toyota IPSUM
- Year
- 1997 - 1998
- Sales region
- Japan
- Frame
- CXM10
- grade
- E
- ENGINE
- 3CTE
- TRANSMISSION
- ATM
- From
- 09.1997
- To
- 04.1998
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-44010
Rotor Sub-Assy, Magnet Clutch
[08.1997 - 07.1998] CXM10,SXM1# |
88412-44010 |
— | ||
|
88302
|
88302
88411-2A030 Stator Sub-Assy, Magnet Clutch[08.1997 - 07.1998] CXM10,SXM1# |
88411-2A030 |
US $79.67 |
||
| replacement | |||||
|
88302
|
88302
88411-02030 Stator Sub-Assy, Magnet Clutch[08.1997 - 07.1998] CXM10,SXM1# |
88411-02030 |
US $294.80 |
||
|
88320
|
88320
88320-44030
Compressor Assy, Cooler
[09.1997 - 04.1998] CXM10..E |
88320-44030 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-44H90
Compressor Assy, Cooler
[09.1997 - 04.1998] CXM10..E |
88320-44H90 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[08.1997 -] CXM10,SXM1# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-30290 Hub Sub-Assy, Magnet Clutch[08.1997 - 07.1998] CXM10,SXM1# |
88403-30290 |
from US $86.66 |
||
|
88410
|
88410
88410-44010
Clutch Assy, Magnet
[08.1997 - 07.1998] CXM10,SXM1# |
88410-44010 |
— | ||
|
88688K
|
88688K
88688-44100
Bracket, Cooler Compressor
[09.1997 - 07.1998] CXM10 |
88688-44100 |
— | ||
|
88688N
|
88688N
88688-2D800
Bracket, Cooler
[09.1997 - 07.1998] CXM10 |
88688-2D800 |
— | ||
|
8889944010
|
8889944010
88899-44010
Bolt, Stud(For Fc Cooling Water Pump)
|
88899-44010 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009904488
|
9009904488
90099-04488 New Genuine Part |
90099-04488 |
US $4.37 |
||
|
9009904499
|
9009904499
90099-04499 New Genuine Part |
90099-04499 |
US $3.06 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9017908025
|
9017908025
90179-08025 Nut, Cap(For Cylinder Head Cover) |
90179-08025 |
from US $0.92 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
