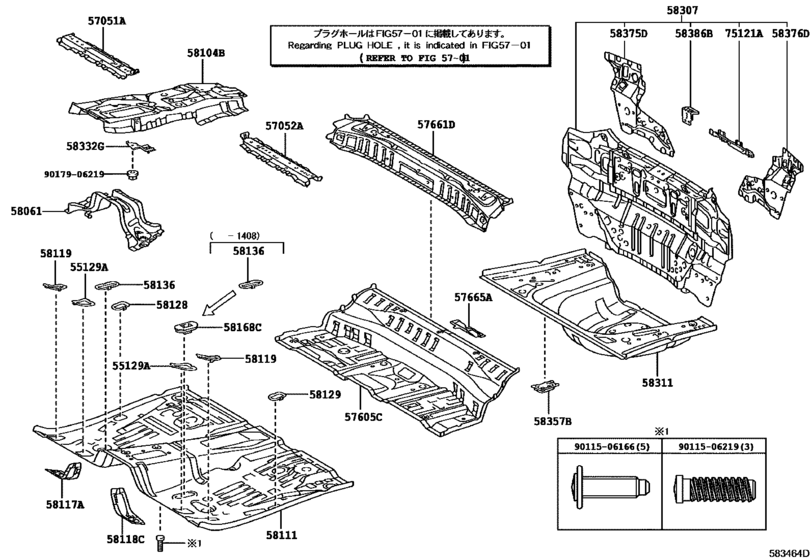

Floor Pan & Lower Back Panel ([11.2008 - ] (0811- )) Diagram Toyota IQ
- Year
- 2010 - 2016
- Sales region
- Japan
- Frame
- NGJ10
- grade
- 130G
- ENGINE
- 1NRFE
- TRANSMISSION
- MTM
- From
- 11.2010
- To
- 03.2016
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55129A
|
55129A
55129-74010 Cover, Front Floor HoleFRONT FLOOR HOLE [11.2008 -] KGJ10,NGJ10 右側 |
55129-74010 |
US $3.93 |
||
|
55129A
|
55129A
55139-74010 Cover, Front Floor HoleFRONT FLOOR HOLE [11.2008 -] KGJ10,NGJ10 左側 |
55139-74010 |
US $3.93 |
||
|
57051A
|
57051A
57051-74010 Member Sub-Assy, Front Floor Cross, RhFRONT FLOOR CROSS, RH [11.2008 -] KGJ10,NGJ10 |
57051-74010 |
US $47.03 |
||
|
57052A
|
57052A
57052-74010 Member Sub-Assy, Front Floor Cross, LhFRONT FLOOR CROSS, LH [11.2008 -] KGJ10,NGJ10 |
57052-74010 |
US $47.03 |
||
|
57605C
|
57605C
57605-74011 Member Sub-Assy, Rear Floor CrossREAR FLOOR CROSS [03.2010 -] KGJ10,NGJ10 |
57605-74011 |
US $270.82 |
||
|
57661D
|
57661D
57606-74010 Member, Rear Floor Cross, FrontREAR FLOOR CROSS, FRONT [11.2008 -] KGJ10,NGJ10 |
57606-74010 |
US $148.51 |
||
|
57665A
|
57665A
57665-74010 Reinforcement, Rear Floor Crossmember, No.2REAR FLOOR CROSSMEMBER, NO.2 [11.2008 -] KGJ10,NGJ10 |
57665-74010 |
US $10.77 |
||
|
58061
|
58061
58061-74010 Support Sub-Assy, Fuel Tank, FrontFUEL TANK, FRONT [11.2008 - 04.2011] KGJ10,NGJ10 |
58061-74010 |
US $66.10 |
||
| replacement | |||||
|
58061
|
58061
58061-74011 Support Sub-Assy, Fuel Tank, Front[11.2008 - 04.2011] KGJ10,NGJ10 |
58061-74011 |
US $66.10 |
||
|
58061
|
58061
58061-74011 Support Sub-Assy, Fuel Tank, Front[05.2011 - 11.2012] KGJ10,NGJ10 |
58061-74011 |
US $66.10 |
||
|
58061
|
58061
58061-74012 Support Sub-Assy, Fuel Tank, Front[11.2012 -] KGJ10,NGJ10 |
58061-74012 |
US $55.04 |
||
|
58104B
|
58104B
58104-74011 Bracket Sub-Assy, Front Seat Mounting, Inside, Lh[06.2010 -] KGJ10,NGJ10 |
58104-74011 |
US $99.01 |
||
|
58111
|
58111
58111-74010 Pan, Front FloorFRONT FLOOR [11.2008 -] KGJ10,NGJ10 |
58111-74010 |
US $262.08 |
||
|
58117A
|
58117A
58117-74010 Reinforcement, Front Floor Side, RhFRONT FLOOR SIDE, RH [11.2008 -] KGJ10,NGJ10 |
58117-74010 |
US $13.69 |
||
|
58118C
|
58118C
58118-74010 Reinforcement, Front Floor Side, LhFRONT FLOOR SIDE, LH [11.2008 -] KGJ10,NGJ10 |
58118-74010 |
US $15.29 |
||
|
58119
|
58119
58119-74010 Plate, Front Floor Side, FrontFRONT FLOOR SIDE, FRONT [11.2008 -] KGJ10,NGJ10 右側 |
58119-74010 |
US $3.49 |
||
|
58119
|
58119
58129-74010 Plate, Front Floor Side, FrontFRONT FLOOR SIDE, FRONT [11.2008 -] KGJ10,NGJ10 左側 |
58129-74010 |
US $3.49 |
||
|
58128
|
58128
58139-74010 Plate, Front Floor, No.1FRONT FLOOR, NO.1 [11.2008 -] KGJ10,NGJ10 |
58139-74010 |
US $2.91 |
||
|
58129
|
58129
58149-74010 Plate, Front Floor, No.2FRONT FLOOR, NO.2 [11.2008 -] KGJ10,NGJ10 |
58149-74010 |
US $2.91 |
||
|
58136
|
58136
58136-74010 Cover, Front Floor HoleFRONT FLOOR HOLE [08.2014 -] KGJ10,NGJ10 |
58136-74010 |
US $2.91 |
||
|
58168C
|
58168C
58168-74010 Cover, Front Floor, Center Lh[08.2014 -] KGJ10,NGJ10 |
58168-74010 |
US $8.74 |
||
|
58307
|
58307
58307-74051 Panel Sub-Assy, Body Lower Back[10.2010 - 03.2016] KGJ10,NGJ10 |
58307-74051 |
US $233.92 |
||
|
58311
|
58311
58311-74010 Pan, Rear FloorREAR FLOOR [11.2008 -] KGJ10,NGJ10 |
58311-74010 |
US $216.94 |
||
|
58332G
|
58332G
58332-74010 Bracket, Rear Floor Heat Insulator, No.4REAR FLOOR HEAT INSULATOR, NO.4 [11.2008 -] KGJ10,NGJ10 |
58332-74010 |
US $7.28 |
||
|
58357B
|
58357B
58357-74010 Bracket, Actuator Cover, No.3 RhACTUATOR COVER, NO.3 RH [11.2008 -] KGJ10,NGJ10 |
58357-74010 |
US $7.43 |
||
|
58375D
|
58375D
58375-74030 Reinforcement, Body Lower Back Panel, Rh[10.2010 -] KGJ10,NGJ10 |
58375-74030 |
US $50.81 |
||
|
58376D
|
58376D
58376-74031 Reinforcement, Body Lower Back, Lh[10.2010 - 02.2012] KGJ10,NGJ10 |
58376-74031 |
US $61.01 |
||
| replacement | |||||
|
58376D
|
58376D
58376-74050 Reinforcement, Body Lower Back, Lh[10.2010 - 02.2012] KGJ10,NGJ10 |
58376-74050 |
US $50.81 |
||
|
58376D
|
58376D
58376-74050 Reinforcement, Body Lower Back, Lh[03.2012 -] KGJ10,NGJ10 |
58376-74050 |
US $50.81 |
||
|
58386B
|
58386B
58386-74010 Bracket, Rear Bumper Cover, No.2REAR BUMPER COVER, NO.2 [11.2008 -] KGJ10,NGJ10 |
58386-74010 |
US $8.32 |
||
|
75121A
|
75121A
75121-74010 Bracket, Rear License PlateREAR LICENSE PLATE [11.2008 -] KGJ10,NGJ10 |
75121-74010 |
US $13.54 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
from US $1.12 |
||
| replacement | |||||
|
9017906219
|
9017906219
90182-A0005 Nut |
90182-A0005 |
US $2.22 |
||
