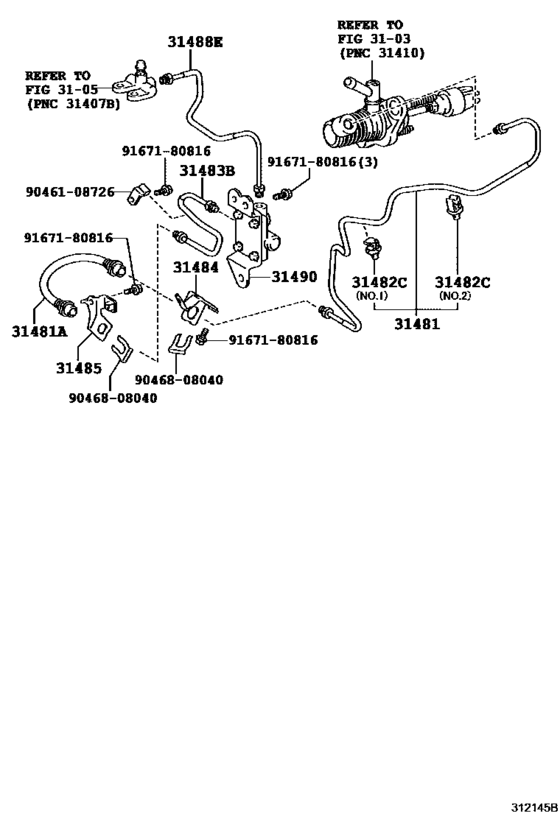

Clutch Pedal & Flexible Hose ([11.2008 - ] (0811- )NUJ10..LHD) Diagram Toyota IQ
- Year
- 2008 - 2012
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 05.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31481
|
31481
31481-74010
Tube, Clutch Master Cylinder To Flexible Hose
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD..MTM |
31481-74010 |
— | ||
|
31481A
|
31481A
90947-02G27
Hose, Clutch, No.1
[11.2008 - 05.2012] NUJ10 |
90947-02G27 |
— | ||
|
31482C
|
31482C
90949-01D17 Clamp(For Clutch Master Cylinder Tube)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM NO.1 |
90949-01D17 |
US $1.76 |
||
|
31482C
|
31482C
90949-01D29 Clamp(For Clutch Tube)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM NO.2 |
90949-01D29 |
US $3.20 |
||
|
31483B
|
31483B
31483-74010
Tube, Accumulator To Flexible Hose
[11.2008 - 05.2012] NUJ10..LHD |
31483-74010 |
— | ||
|
31484
|
31484
31484-74010 Bracket, Flexible Hose(For Clutch)FLEXIBLE HOSE(FOR CLUTCH) [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
31484-74010 |
US $8.44 |
||
|
31485
|
31485
31484-74020 Bracket, Flexible Hose, No.2(For Clutch)FLEXIBLE HOSE, NO.2(FOR CLUTCH) [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
31484-74020 |
US $6.12 |
||
|
31488E
|
31488E
31488-74010
Tube, Bleeder To Accumulator
[11.2008 - 05.2012] NUJ10 |
31488-74010 |
— | ||
|
31490
|
31490
31490-74010
Accumulator Assy, Clutch
[11.2008 - 05.2012] NUJ10..LHD |
31490-74010 |
— | ||
|
9046108726
|
9046108726
90461-08726 Clamp, Brake Tube, No.7 |
90461-08726 |
US $2.77 |
||
|
9046808040
|
9046808040
90468-08040 CLIP |
90468-08040 |
from US $1.60 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.88 |
