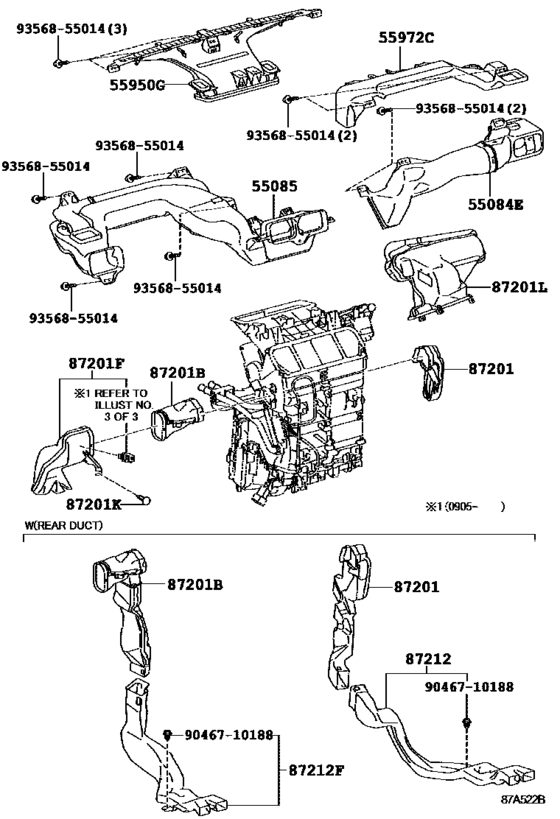

Heating & Air Conditioning - Control & Air Duct ([11.2008 - ] AIR DUCT (0811- )LHD) Diagram Toyota IQ
- Year
- 2008 - 2012
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 05.2012
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55084E
|
55084E
55084-74010
Duct Sub-Assy, Heater To Register, No.1
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD |
55084-74010 |
— | ||
|
55085
|
55085
55085-74010
Duct Sub-Assy, Heater To Register, No.2
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD |
55085-74010 |
— | ||
|
55950G
|
55950G
55950-74010 Nozzle Assy, DefrosterDEFROSTER [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
55950-74010 |
US $43.24 |
||
|
55972C
|
55972C
55972-74010
Duct, Side Defroster Nozzle, No.2
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD |
55972-74010 |
— | ||
|
87201
|
87201
87201-74080
Duct Sub-Assy, Air, No.1
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD; KGJ10..LHD COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT |
87201-74080 |
— | ||
|
87201
|
87201
87201-74100
Duct Sub-Assy, Air, No.1
[11.2008 - 08.2010] NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
87201-74100 |
— | ||
|
87201B
|
87201B
87201-74070
Duct Sub-Assy, Air, No.2
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD; KGJ10..LHD COLD AREA SPEC(S RANK)&REAR SEAT-WITHOUT |
87201-74070 |
— | ||
|
87201B
|
87201B
87201-74090
Duct Sub-Assy, Air, No.2
[11.2008 - 08.2010] NUJ10..LHD COLD AREA SPEC(S RANK)&EXHAUST EMISSION CONTROL-EURO STEP 4,W(ON BOARD DIAGNOSIS & DPF) |
87201-74090 |
— | ||
|
87201F
|
87201F
87201-74060
Duct Sub-Assy, Air, No.3
[11.2008 - 05.2014] NGJ10..LHD..R;KGJ10,NUJ10..LHD;NGJ10..LHD..CVFC |
87201-74060 |
— | ||
|
87201K
|
87201K
90467-08186-C0 Clip(For Front Bumper), No.1[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
87201L
|
87201L
87201-74120
Duct Sub-Assy, Air, No.4
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD |
87201-74120 |
— | ||
|
87212
|
87212
87220-74010 Duct, Air, Rear No.1AIR, REAR NO.1 [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK) |
87220-74010 |
US $50.52 |
||
|
87212F
|
87212F
87230-74010 Duct, Air, Rear No.2AIR, REAR NO.2 [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..LHD COLD AREA SPEC(S RANK) |
87230-74010 |
US $36.69 |
||
|
9046710188
|
9046710188
90467-10188 Clip(For Deck Boad) |
90467-10188 |
from US $1.28 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
