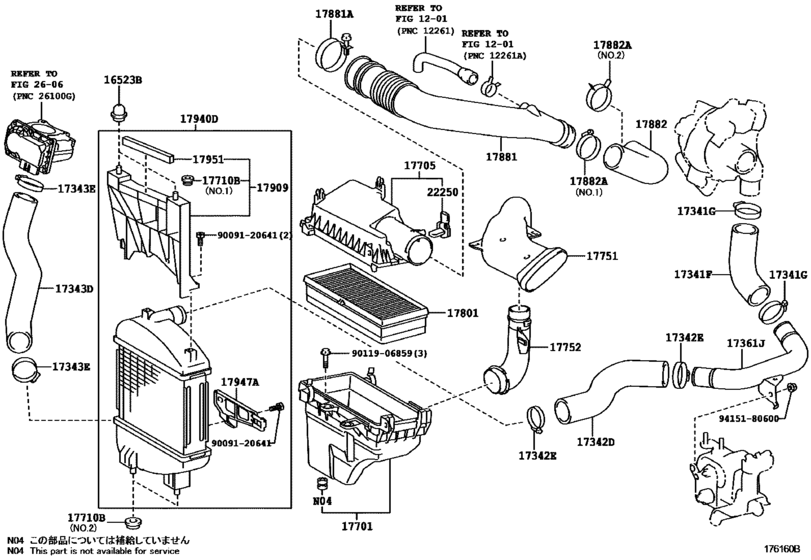

Air Cleaner ([11.2008 - ] (0811- )1NDTV) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16523B
|
16523B
16523-21030 Cushion, Radiator Support[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
16523-21030 |
from US $2.16 |
||
|
17341F
|
17341F
17341-33090
Hose, Air, No.1
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17341-33090 |
— | ||
|
17341G
|
17341G
90460-50005
Clamp, Hose
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
90460-50005 |
— | ||
|
17342D
|
17342D
17342-33070
Hose, Air, No.2
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17342-33070 |
— | ||
|
17342E
|
17342E
90460-50005
Clamp, Hose
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
90460-50005 |
— | ||
|
17343D
|
17343D
17343-33060
Hose, Air, No.3
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17343-33060 |
— | ||
|
17343E
|
17343E
90460-62003
Clamp Or Clip(For Air Hose, No.2)
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
90460-62003 |
— | ||
| replacement | |||||
|
17343E
|
17343E
90460-62007 Clamp Or Clip(For Air Hose, No.2)NO.1) [11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
90460-62007 |
US $3.32 |
||
|
17361J
|
17361J
17361-33060
Tube, Air, No.1
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17361-33060 |
— | ||
|
17701
|
17701
17701-0N040
Case Sub-Assy, Air Cleaner
[11.2008 - 01.2009] 1NDTV..NUJ10 |
17701-0N040 |
— | ||
| replacement | |||||
|
17701
|
17701
17701-0N041
Case Sub-Assy, Air Cleaner
[11.2008 - 01.2009] 1NDTV..NUJ10 |
17701-0N041 |
— | ||
|
17701
|
17701
17701-0N041
Case Sub-Assy, Air Cleaner
[02.2009 - 03.2010] 1NDTV..NUJ10..RHD |
17701-0N041 |
— | ||
|
17705
|
17705
17705-0N060
Cap Sub-Assy, Air Cleaner
[11.2008 - 05.2012] 1NDTV..NUJ10 |
17705-0N060 |
— | ||
|
17710B
|
17710B
90480-16044 Grommet[11.2008 - 03.2010] 1NDTV..NUJ10..RHD NO.1 |
90480-16044 |
US $1.74 |
||
|
17710B
|
17710B
90480-22025 Cushion, Intercooler Support[11.2008 - 03.2010] 1NDTV..NUJ10..RHD NO.2 |
90480-22025 |
from US $1.92 |
||
|
17751
|
17751
17751-33070
Inlet, Air Cleaner, No.1
[11.2008 - 05.2012] 1NDTV..NUJ10 |
17751-33070 |
— | ||
|
17752
|
17752
17752-33010
Inlet, Air Cleaner, No.2
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17752-33010 |
— | ||
|
17801
|
17801
17801-0N040 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [11.2008 - 05.2012] 1NDTV..NUJ10 |
17801-0N040 |
US $64.06 |
||
|
17881
|
17881
17881-33050
Hose, Air Cleaner, No.1
[11.2008 - 05.2012] 1NDTV..NUJ10 |
17881-33050 |
— | ||
|
17881A
|
17881A
96111-10780 Clamp, Hose(For Air Connector)[11.2008 - 05.2012] 1NDTV..NUJ10 |
96111-10780 |
from US $3.61 |
||
|
17882
|
17882
17882-33020
Hose, Air Cleaner, No.2
[11.2008 - 05.2012] 1NDTV..NUJ10 |
17882-33020 |
— | ||
|
17882A
|
17882A
90460-62003
Clamp Or Clip(For Air Hose, No.2)
[11.2008 - 05.2012] 1NDTV..NUJ10 NO.1 |
90460-62003 |
— | ||
| replacement | |||||
|
17882A
|
17882A
90460-62007 Clamp Or Clip(For Air Hose, No.2)NO.1) [11.2008 - 05.2012] 1NDTV..NUJ10 NO.1 |
90460-62007 |
US $3.32 |
||
|
17882A
|
17882A
90466-51003 Clamp(For Air Cleaner Hose, No.1)NO.1) [11.2008 - 05.2012] 1NDTV..NUJ10 NO.2 |
90466-51003 |
US $3.93 |
||
|
17909
|
17909
17909-33010
Duct Sub-Assy, Intercooler Cooling Air
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17909-33010 |
— | ||
|
17940D
|
17940D
17940-33030 Intercooler Assy[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17940-33030 |
US $669.76 |
||
|
17947A
|
17947A
17947-33010
Plate, Intercooler
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17947-33010 |
— | ||
|
17951
|
17951
17951-33010
Insulator, Intercooler
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
17951-33010 |
— | ||
|
22250
|
22250
22204-26010 Meter Sub-Assy, Intake Air Flow[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
22204-26010 |
from US $144.69 |
||
|
9009120641
|
9009120641
90091-20641
New Genuine Part
|
90091-20641 |
— | ||
|
9011906859
|
9011906859
90119-06859 BOLT WWASHER |
90119-06859 |
from US $1.05 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
