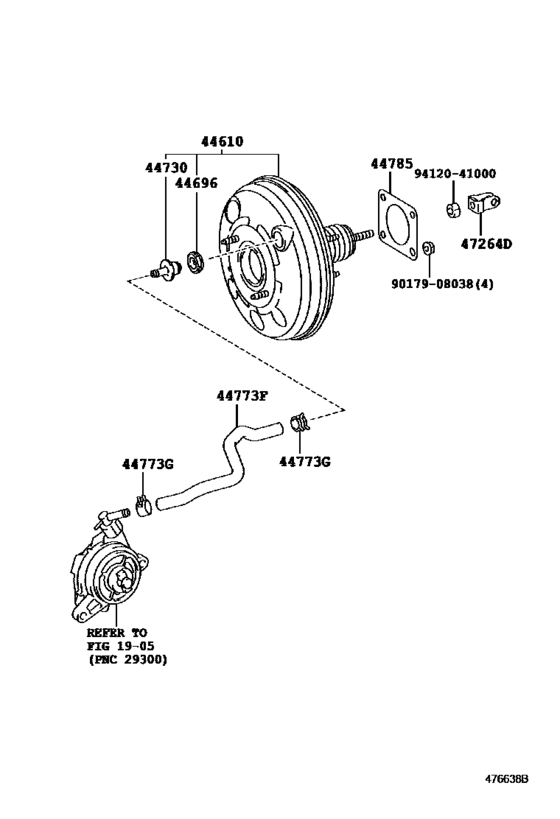

Brake Booster & Vacuum Tube ([11.2008 - ] (0811- )NUJ10..RHD) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44610
|
44610
44610-74020
Booster Assy, Brake
[11.2008 - 03.2010] NUJ10..RHD |
44610-74020 |
— | ||
|
44696
|
44696
90480-24439 Grommet, Check Valve[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90480-24439 |
from US $2.77 |
||
|
44730
|
44730
44730-22150 Valve Assy, Vacuum Check(For Brake)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..RHD |
44730-22150 |
from US $19.76 |
||
|
44773F
|
44773F
44773-74020
Hose, Union To Check Valve
[11.2008 - 03.2010] NUJ10..RHD |
44773-74020 |
— | ||
|
44773G
|
44773G
96133-41500 Clamp Or Clip(For Air Hose, No.5)[11.2008 - 03.2010] NUJ10..RHD |
96133-41500 |
from US $2.24 |
||
|
44785
|
44785
44785-16020 Gasket, Brake Booster[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
44785-16020 |
from US $3.52 |
||
|
47264D
|
47264D
47264-63020 Clevis, Master Cylinder Push Rod[11.2008 - 11.2010] KGJ10,NGJ10,NUJ10 |
47264-63020 |
from US $3.49 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
