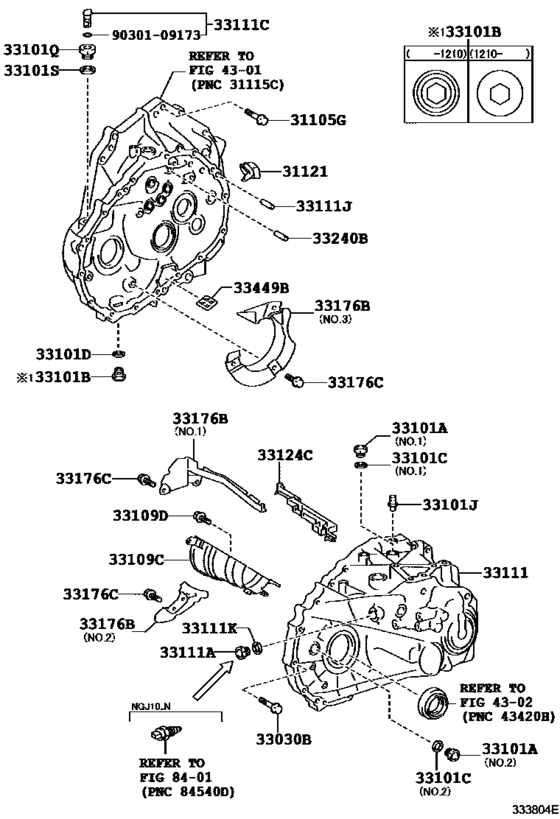

Clutch Housing & Transmission Case (Mtm) ([11.2008 - ] EE53,EE63,EE65 (0811- )MTM) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105G
|
31105G
91552-81045 Bolt, No.1(For Alternator)[11.2008 - 05.2012] NUJ10 *10-1.25PX45-26 |
91552-81045 |
US $1.92 |
||
|
31121
|
31121
31121-74010
Cover, Clutch Housing, No.1
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
31121-74010 |
— | ||
|
33030B
|
33030B
91551-10840 Bolt(For Transaxle Case & Transmission Case Setting)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM *8-1.25PX40-22 |
91551-10840 |
US $0.96 |
||
|
33101A
|
33101A
90341-14032 Plug, W/head Taper Screw, No.1[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM NO.1 |
90341-14032 |
US $2.53 |
||
|
33101A
|
33101A
90341-18033 Plug(For Manual Transmission Filler)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM NO.2 |
90341-18033 |
US $3.04 |
||
|
33101B
|
33101B
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[11.2008 - 10.2012] KGJ10,NGJ10,NUJ10..MTM |
90341-18016 |
from US $1.91 |
||
|
33101C
|
33101C
90430-14003 Gasket(For Manual Transmission Filler Plug)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM NO.1 |
90430-14003 |
US $2.56 |
||
|
33101C
|
33101C
90430-18008 Gasket[11.2008 - 10.2012] KGJ10,NGJ10,NUJ10..MTM NO.2 |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
33101C
|
33101C
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[11.2008 - 10.2012] KGJ10,NGJ10,NUJ10..MTM NO.2 |
90430-T0021 |
— | ||
|
33101D
|
33101D
90430-18008 Gasket[11.2008 - 10.2012] KGJ10,NGJ10,NUJ10..MTM |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
33101D
|
33101D
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[11.2008 - 10.2012] KGJ10,NGJ10,NUJ10..MTM |
90430-T0021 |
— | ||
|
33101J
|
33101J
90930-03133 Plug, Breather[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90930-03133 |
from US $5.92 |
||
|
33101Q
|
33101Q
90341-22010
Plug, No.1(For Transmission Case)
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90341-22010 |
— | ||
|
33101S
|
33101S
90430-22002 Gasket(For Manifold Plug)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90430-22002 |
US $4.48 |
||
|
33109C
|
33109C
33109-74010
Separator Sub-Assy, Manual Transmission Oil
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
33109-74010 |
— | ||
|
33109D
|
33109D
91551-80816 Bolt(For Manual Transmission Oil Separator)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
91551-80816 |
from US $0.80 |
||
|
33111
|
33111
33111-74010
Case, Manual Transmission
[11.2008 - 03.2010] KGJ10,NGJ10,NUJ10..MTM |
33111-74010 |
— | ||
| replacement | |||||
|
33111
|
33111
33111-74011 Case, Manual TransmissionMANUAL TRANSMISSION [11.2008 - 03.2010] KGJ10,NGJ10,NUJ10..MTM |
33111-74011 |
US $407.68 |
||
|
33111A
|
33111A
90341-18006 Plug (No magnet)[11.2008 - 05.2014] NGJ10..R;KGJ10,NUJ10..MTM |
90341-18006 |
from US $2.76 |
||
|
33111C
|
33111C
35150-44010 Plug(For Transmission Case)[11.2008 - 11.2012] KGJ10,NGJ10,NUJ10..MTM |
35150-44010 |
from US $5.44 |
||
|
33111J
|
33111J
90250-08054 Pin, Straight[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM L=23,OD=8 |
90250-08054 |
from US $1.92 |
||
|
33111K
|
33111K
90430-18008 Gasket[11.2008 - 10.2012] NGJ10..R;KGJ10,NUJ10..MTM |
90430-18008 |
from US $1.76 |
||
| replacement | |||||
|
33111K
|
33111K
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[11.2008 - 10.2012] NGJ10..R;KGJ10,NUJ10..MTM |
90430-T0021 |
— | ||
|
33124C
|
33124C
33124-74010
Pipe, Oil Receiver, No.1(Mtm)
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
33124-74010 |
— | ||
|
33176B
|
33176B
33176-74020
Separator, Transmission Oil(Mtm)
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM NO.1 |
33176-74020 |
— | ||
|
33176B
|
33176B
33176-74030
Separator, Transmission Oil(Mtm)
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM NO.3 |
33176-74030 |
— | ||
|
33176B
|
33176B
33176-74040
Separator, Transmission Oil(Mtm)
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM NO.2 |
33176-74040 |
— | ||
|
33176C
|
33176C
91551-80816 Bolt(For Manual Transmission Oil Separator)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
91551-80816 |
from US $0.80 |
||
|
33240B
|
33240B
90250-08054 Pin, Straight[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90250-08054 |
from US $1.92 |
||
|
33449B
|
33449B
33449-20010 Magnet, Transmission[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
33449-20010 |
US $5.97 |
||
|
9030109173
|
9030109173
90301-09173 Ring, O(For Transmission Oil Filler Tube) |
90301-09173 |
from US $2.18 |
||
