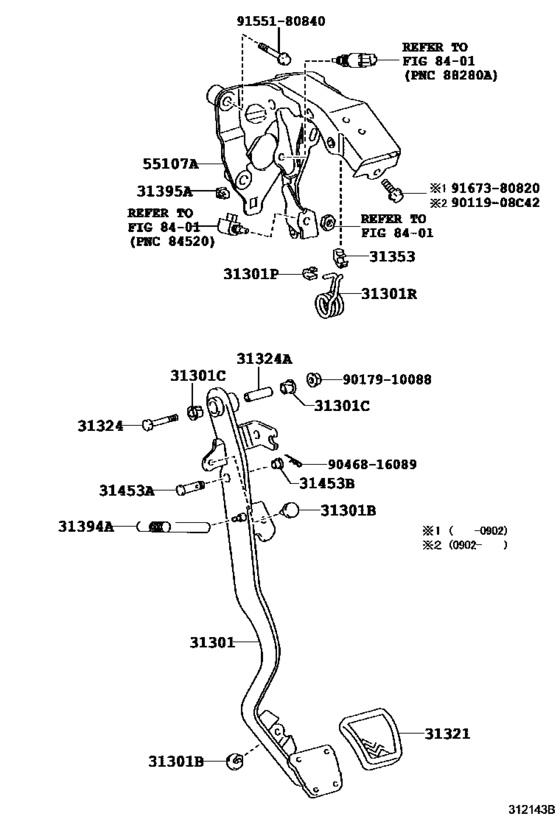

Clutch Pedal & Flexible Hose ([11.2008 - ] (0811- )NUJ10..RHD ; (0811- )NGJ10..RHD..R) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31301
|
31301
31301-74040
Pedal Sub-Assy, Clutch
[11.2008 - 03.2010] NUJ10..RHD |
31301-74040 |
— | ||
|
31301B
|
31301B
90541-06036 Cushion, No.1(For Clutch Pedal)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90541-06036 |
from US $0.98 |
||
| replacement | |||||
|
31301B
|
31301B
90541060361
CUSHION
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90541060361 |
— | ||
|
31301C
|
31301C
90386-13015 Bush(For Clutch Pedal)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90386-13015 |
from US $0.72 |
||
|
31301P
|
31301P
90386-05017 Bush(For Clutch Pedal Turnover)[11.2008 - 05.2014] NUJ10;NGJ10..R |
90386-05017 |
US $1.76 |
||
|
31301R
|
31301R
31395-74020
Spring, Compression(For Turn Over Spring Seat)
[11.2008 - 05.2014] NUJ10..RHD;NGJ10..RHD..R |
31395-74020 |
— | ||
|
31321
|
31321
31321-52010 Pad, Brake Pedal[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
31321-52010 |
from US $2.11 |
||
|
31324
|
31324
90101-10039 Shaft, Clutch Pedal[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90101-10039 |
US $2.56 |
||
|
31324A
|
31324A
90387-10003 Collar, Clutch Pedal Shaft[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90387-10003 |
from US $4.11 |
||
|
31353
|
31353
31353-26010 Holder, Clutch Pedal Spring[11.2008 - 05.2014] NUJ10;NGJ10..R |
31353-26010 |
from US $3.36 |
||
|
31394A
|
31394A
31394-25010
Spring(For Clutch Pedal)
[11.2008 - 05.2014] NUJ10;NGJ10..R |
31394-25010 |
— | ||
|
31395A
|
31395A
31395-33020 Hook, Pedal Spring[11.2008 - 05.2014] NUJ10;NGJ10..R |
31395-33020 |
US $1.28 |
||
|
31453A
|
31453A
90249-08256 Pin, W/hole(For Clutch Master Cylinder Push Rod Clevis)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM L=36.5 |
90249-08256 |
US $2.08 |
||
|
31453B
|
31453B
90386-08033 Bush(For Clutch Master Cylinder Push Rod Clevis)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..MTM |
90386-08033 |
from US $1.76 |
||
|
55107A
|
55107A
55107-74040
Support Sub-Assy, Clutch Pedal
[11.2008 - 05.2014] NUJ10..RHD;NGJ10..RHD..R |
55107-74040 |
— | ||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.28 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9046816089
|
9046816089
90468-16089 New Genuine Part |
90468-16089 |
US $2.72 |
||
|
9155180840
|
9155180840
91551-80840 Bolt(For Head To Camshaft Bearing Cap) |
91551-80840 |
US $1.92 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
