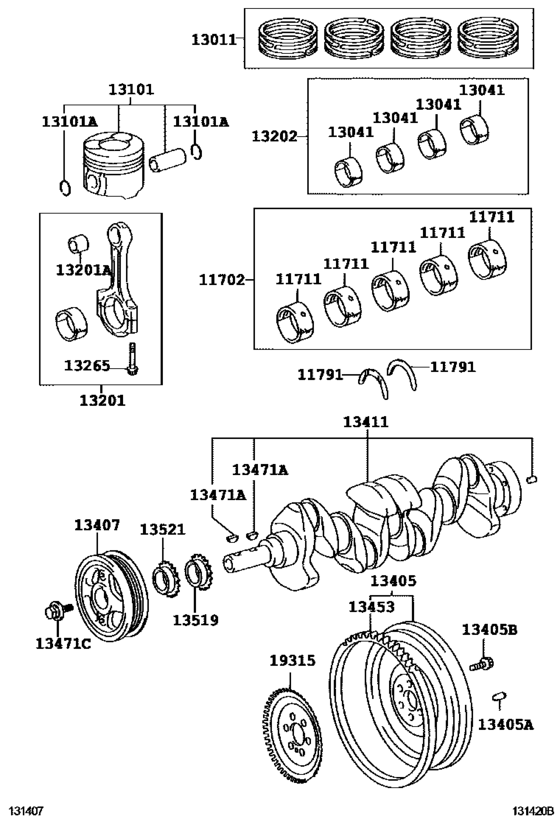

Crankshaft & Piston ([11.2008 - ] (0811- )1NDTV) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-21031
Bearing Set, Crankshaft
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD U/S 0.25 |
11704-21031 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[11.2008 - 03.2010] 1NDTV..NUJ10..RHD U/S 0.25 |
11704-21032 |
from US $91.57 |
||
|
11711
|
11711
11701-21031-01
Bearing, Crankshaft
[11.2008 - 05.2012] 1NDTV..NUJ10 MARK1,REFER REPAIR MANUAL |
11701-21031-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[11.2008 - 05.2012] 1NDTV..NUJ10 MARK1,REFER REPAIR MANUAL |
11701-21032-01 |
from US $16.89 |
||
|
11711
|
11711
11701-21031-02
Bearing, Crankshaft
[11.2008 - 05.2012] 1NDTV..NUJ10 MARK2,REFER REPAIR MANUAL |
11701-21031-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[11.2008 - 05.2012] 1NDTV..NUJ10 MARK2,REFER REPAIR MANUAL |
11701-21032-02 |
from US $15.83 |
||
|
11711
|
11711
11701-21031-03
Bearing, Crankshaft
[11.2008 - 05.2012] 1NDTV..NUJ10 MARK3,REFER REPAIR MANUAL |
11701-21031-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[11.2008 - 05.2012] 1NDTV..NUJ10 MARK3,REFER REPAIR MANUAL |
11701-21032-03 |
from US $16.89 |
||
|
11711
|
11711
11701-21031-04
Bearing, Crankshaft
[11.2008 - 05.2012] 1NDTV..NUJ10 MARK4,REFER REPAIR MANUAL |
11701-21031-04 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[11.2008 - 05.2012] 1NDTV..NUJ10 MARK4,REFER REPAIR MANUAL |
11701-21032-04 |
from US $16.89 |
||
|
11791
|
11791
11791-33030 Washer, Crankshaft Thrust, Upper[11.2008 - 05.2012] 1NDTV..NUJ10 STD |
11791-33030 |
from US $17.36 |
||
|
11791
|
11791
11792-33030 Washer, Crankshaft Thrust, Upper[11.2008 - 05.2012] 1NDTV..NUJ10 O/S 0.125 |
11792-33030 |
US $23.44 |
||
|
11791
|
11791
11793-33030 Washer, Crankshaft Thrust, Upper[11.2008 - 05.2012] 1NDTV..NUJ10 O/S 0.25 |
11793-33030 |
US $23.44 |
||
|
13011
|
13011
13011-33050
Ring Set, Piston
[11.2008 - 09.2010] 1NDTV..NUJ10 STD |
13011-33050 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-33052 Ring Set, Piston[11.2008 - 09.2010] 1NDTV..NUJ10 STD |
13011-33052 |
US $269.36 |
||
|
13041
|
13041
13041-33041-01 Bearing, Connecting Rod[11.2008 - 05.2012] 1NDTV..NUJ10 MARK1,REFER REPAIR MANUAL |
13041-33041-01 |
US $17.47 |
||
|
13041
|
13041
13041-33041-02 Bearing, Connecting Rod[11.2008 - 05.2012] 1NDTV..NUJ10 MARK2,REFER REPAIR MANUAL |
13041-33041-02 |
US $16.16 |
||
|
13041
|
13041
13041-33041-03 Bearing, Connecting Rod[11.2008 - 05.2012] 1NDTV..NUJ10 MARK3,REFER REPAIR MANUAL |
13041-33041-03 |
US $16.16 |
||
|
13101
|
13101
13101-0N060-A0
Piston Sub-Assy, W/pin
[11.2008 - 09.2010] 1NDTV..NUJ10 STD,MARKA,REFER REPAIR MANUAL |
13101-0N060-A0 |
— | ||
|
13101
|
13101
13101-0N060-B0 Piston Sub-Assy, W/pinW/PIN [11.2008 - 09.2010] 1NDTV..NUJ10 STD,MARKB,REFER REPAIR MANUAL |
13101-0N060-B0 |
US $119.39 |
||
|
13101
|
13101
13101-0N060-C0 Piston Sub-Assy, W/pinW/PIN [11.2008 - 09.2010] 1NDTV..NUJ10 STD,MARKC,REFER REPAIR MANUAL |
13101-0N060-C0 |
US $119.39 |
||
|
13101A
|
13101A
90080-52139 Ring, Hole Snap(For Piston Pin)[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
90080-52139 |
US $1.16 |
||
|
13201
|
13201
13201-39055 Rod Sub-Assy, Connecting[11.2008 - 05.2012] 1NDTV..NUJ10 |
13201-39055 |
US $117.94 |
||
|
13201A
|
13201A
90999-73147 Bush(For Connecting Rod Small End)[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
90999-73147 |
US $2.62 |
||
|
13202
|
13202
13204-33041 Bearing Set, Connecting Rod[11.2008 - 03.2010] 1NDTV..NUJ10..RHD U/S 0.25 |
13204-33041 |
from US $48.34 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[11.2008 - 05.2014] 1N#..NGJ10,NUJ10 |
13265-21020 |
US $4.80 |
||
|
13405
|
13405
13405-33030 Flywheel Sub-Assy[11.2008 - 05.2012] 1NDTV..NUJ10 |
13405-33030 |
US $461.55 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[11.2008 - 05.2014] 1KRFE..KGJ10..5F L=18,OD=8; 1N#..NGJ10,NUJ10..6F L=18,OD=8 |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90913-01024 Bolt, Flywheel Setting[11.2008 - 05.2012] 1NDTV..NUJ10 |
90913-01024 |
US $1.76 |
||
|
13407
|
13407
13407-33060
Damper Sub-Assy, Crankshaft
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
13407-33060 |
— | ||
|
13411
|
13411
13401-33020 Crankshaft[11.2008 - 05.2012] 1NDTV..NUJ10 |
13401-33020 |
US $997.36 |
||
| replacement | |||||
|
13411
|
13411
13401-33021 Crankshaft[11.2008 - 05.2012] 1NDTV..NUJ10 |
13401-33021 |
US $905.63 |
||
|
13453
|
13453
13453-55010
Gear, Flywheel Ring
[11.2008 - 05.2012] 1NDTV..NUJ10 |
13453-55010 |
— | ||
|
13471A
|
13471A
95161-30416 Pin, Straight(For Crankshaft)[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
95161-30416 |
from US $1.46 |
||
|
13471C
|
13471C
90119-16004 Bolt(For Crankshaft Pulley Set)[11.2008 - 05.2012] 1NDTV..NUJ10 |
90119-16004 |
from US $5.32 |
||
|
13519
|
13519
13519-33010
Gear, Oil Pump Drive
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
13519-33010 |
— | ||
|
13521
|
13521
13521-33030 Gear Or Sprocket, Crankshaft TimingCRANKSHAFT TIMING [11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
13521-33030 |
US $19.57 |
||
|
19315
|
19315
19315-33020 Plate, Crank Angle Sensor, No.1CRANK ANGLE SENSOR, NO.1 [11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
19315-33020 |
US $38.88 |
||
| replacement | |||||
|
19315
|
19315
19315-33021 Plate, Crank Angle Sensor, No.1[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
19315-33021 |
US $29.27 |
||
