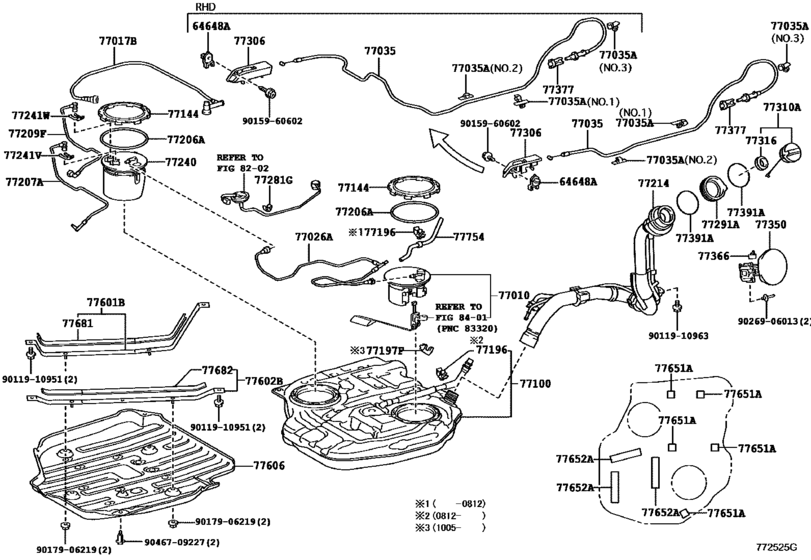

Fuel Tank & Tube ([11.2008 - ] FUEL TANK (0811- )NUJ10) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64648A
|
64648A
64648-12020 Grommet, Luggage Door Lock Opener[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
64648-12020 |
from US $2.54 |
||
|
77010
|
77010
77010-74020
Tube Assy, Fuel Tank Vent
[11.2008 - 11.2009] NUJ10 |
77010-74020 |
— | ||
| replacement | |||||
|
77010
|
77010
77010-74021
Tube Assy, Fuel Tank Vent
[11.2008 - 11.2009] NUJ10 |
77010-74021 |
— | ||
|
77010
|
77010
77010-74021
Tube Assy, Fuel Tank Vent
[12.2009 - 06.2011] NUJ10 |
77010-74021 |
— | ||
|
77017B
|
77017B
77017-74010 Tube Sub-Assy, Fuel Tank VentFUEL TANK VENT [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77017-74010 |
US $19.51 |
||
|
77026A
|
77026A
77026-74020
Tube Sub-Assy, Fuel Evaporation, No.1
[11.2008 - 05.2012] NUJ10 |
77026-74020 |
— | ||
|
77035
|
77035
77035-74020 Cable Sub-Assy, Fuel Lid Lock ControlFUEL LID LOCK CONTROL [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10..RHD |
77035-74020 |
US $14.71 |
||
|
77035A
|
77035A
77333-74010 Clamp (For Fuel Lid Lock Control Cable)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 NO.1 |
77333-74010 |
US $2.91 |
||
|
77035A
|
77035A
77333-74020 Clamp (For Fuel Lid Lock Control Cable)[11.2008 - 02.2009] KGJ10,NUJ10..RHD NO.2 |
77333-74020 |
US $1.46 |
||
|
77035A
|
77035A
77333-74030 Clamp (For Fuel Lid Lock Control Cable)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 NO.3 |
77333-74030 |
US $2.04 |
||
|
77035A
|
77035A
82711-2A250 Clamp (For Fuel Lid Lock Control Cable)[02.2009 - 05.2014] KGJ10,NGJ10,NUJ10..LHD NO.2; KGJ10,NGJ10,NUJ10..RHD NO.4 |
82711-2A250 |
US $2.77 |
||
|
77100
|
77100
77001-74010 Tank Assy, FuelFUEL [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77001-74010 |
US $403.31 |
||
|
77144
|
77144
77144-74010 Retainer, Fuel Pump GaugeFUEL PUMP GAUGE [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77144-74010 |
US $19.66 |
||
|
77196
|
77196
77196-12080 Clamp, Evaporation Vent Tube, No.1[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77196-12080 |
US $6.26 |
||
|
77206A
|
77206A
77169-74020
Gasket (For Fuel Tank Suction Tube)
[11.2008 - 05.2012] NUJ10 |
77169-74020 |
— | ||
|
77207A
|
77207A
77204-74010
Tube Sub-Assy, Fuel Return
[11.2008 - 03.2010] NUJ10..RHD |
77204-74010 |
— | ||
|
77209F
|
77209F
77209-74010 Tube Sub-Assy, Fuel Tank MainFUEL TANK MAIN [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77209-74010 |
US $10.05 |
||
|
77214
|
77214
77210-74020
Pipe, Fuel Tank Filler
[11.2008 - 05.2012] NUJ10 |
77210-74020 |
— | ||
|
77240
|
77240
77020-74020
Tube Assy, Fuel Suction
[11.2008 - 03.2010] NUJ10..RHD |
77020-74020 |
— | ||
|
77241V
|
77241V
77241-35450 Tube, Fuel Tank Suction[11.2008 - 03.2010] NUJ10..RHD |
77241-35450 |
from US $1.07 |
||
|
77241W
|
77241W
77241-60320 Clip, Tube Joint[11.2008 - 03.2010] KGJ10,NGJ10,NUJ10 |
77241-60320 |
from US $0.90 |
||
|
77281G
|
77281G
77281-74010 Clamp, Fuel HoseFUEL HOSE [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77281-74010 |
US $2.91 |
||
|
77291A
|
77291A
77291-52010 Shield Assy, Fuel Tank Filler Pipe[11.2008 - 04.2011] KGJ10,NGJ10,NUJ10 |
77291-52010 |
US $15.50 |
||
|
77306
|
77306
77306-52030 Lever Sub-Assy, Fuel Lid Lock Open[11.2008 - 09.2010] KGJ10,NGJ10,NUJ10..RHD |
77306-52030 |
US $24.61 |
||
|
77310A
|
77310A
77300-20020 Cap Assy, Fuel TankFUEL TANK [11.2008 - 05.2012] NUJ10 |
77300-20020 |
US $33.44 |
||
|
77316
|
77316
77316-52040 Gasket, Fuel Tank Cap[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77316-52040 |
from US $3.68 |
||
|
77350
|
77350
77350-74010 Lid Assy, Fuel Filler OpeningFUEL FILLER OPENING [11.2008 - 04.2010] KGJ10,NGJ10,NUJ10 |
77350-74010 |
US $50.67 |
||
| replacement | |||||
|
77350
|
77350
77350-74011 Lid Assy, Fuel Filler Opening[11.2008 - 04.2010] KGJ10,NGJ10,NUJ10 |
77350-74011 |
US $42.22 |
||
|
77366
|
77366
77366-52010 Spring, Fuel Filler Opening Lid Hinge[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77366-52010 |
from US $0.70 |
||
|
77377
|
77377
77377-52020 Retainer, Fuel Filler Opening Lid Lock[11.2008 - 07.2010] KGJ10,NGJ10,NUJ10 |
77377-52020 |
from US $2.79 |
||
|
77391A
|
77391A
77391-12020 Ring, Fuel Inlet Box[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77391-12020 |
from US $2.88 |
||
|
77601B
|
77601B
77601-74010 Band Sub-Assy, Fuel Tank, No.1 RhFUEL TANK, NO.1 RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77601-74010 |
US $18.78 |
||
|
77602B
|
77602B
77602-74010 Band Sub-Assy, Fuel Tank, No.1 LhFUEL TANK, NO.1 LH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77602-74010 |
US $18.78 |
||
|
77606
|
77606
77606-74010
Protector Sub-Assy, Fuel Tank, No.1
[11.2008 - 02.2009] KGJ10,NUJ10 |
77606-74010 |
— | ||
| replacement | |||||
|
77606
|
77606
77606-74011 Protector Sub-Assy, Fuel Tank, No.1[11.2008 - 02.2009] KGJ10,NUJ10 |
77606-74011 |
US $141.52 |
||
|
77606
|
77606
77606-74011 Protector Sub-Assy, Fuel Tank, No.1[02.2009 - 05.2014] KGJ10,NGJ10,NUJ10 |
77606-74011 |
US $141.52 |
||
|
77651A
|
77651A
77651-74010 Cushion, Fuel Tank, No.1FUEL TANK, NO.1 [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77651-74010 |
US $2.48 |
||
|
77652A
|
77652A
77652-74010 Cushion, Fuel Tank, No.2FUEL TANK, NO.2 [11.2008 - 05.2012] NUJ10 |
77652-74010 |
US $4.80 |
||
|
77681
|
77681
77681-21020 Seat, Fuel Tank Band, Rh[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77681-21020 |
US $8.88 |
||
|
77682
|
77682
77681-21020 Seat, Fuel Tank Band, Rh[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77681-21020 |
US $8.88 |
||
|
77754
|
77754
77754-74020
Hose, Charcoal Canister Outlet, No.1
[11.2008 - 05.2012] NUJ10 L=83 |
77754-74020 |
— | ||
|
9011910951
|
9011910951
90119-10951 BOLT WWASHER |
90119-10951 |
from US $1.33 |
||
|
9011910963
|
9011910963
90119-10963 New Genuine Part |
90119-10963 |
US $1.60 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9017906219
|
9017906219
90179-06219 Nut |
90179-06219 |
from US $1.12 |
||
| replacement | |||||
|
9017906219
|
9017906219
90182-A0005 Nut |
90182-A0005 |
US $2.22 |
||
|
9026906013
|
9026906013
90269-06013 RIVET |
90269-06013 |
from US $0.62 |
||
|
9046709227
|
9046709227
90467-09227 Clip, Engine Under Cover, No.2 |
90467-09227 |
from US $1.35 |
||
