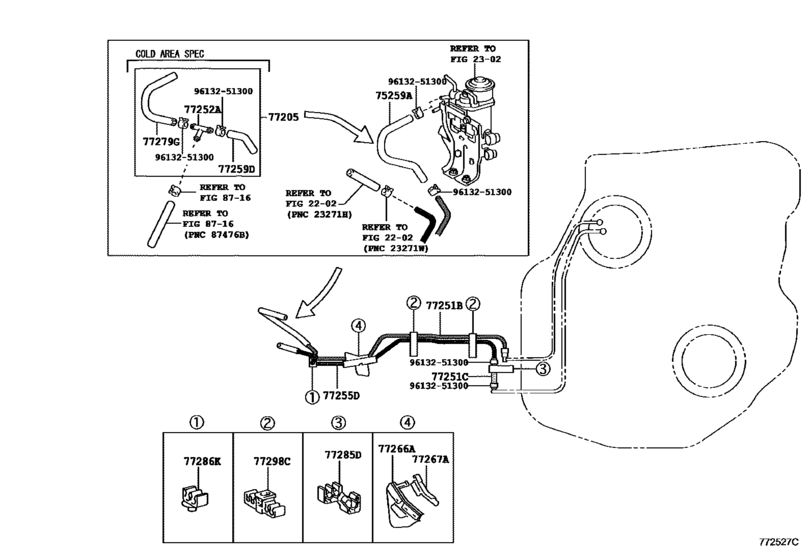

Fuel Tank & Tube ([11.2008 - ] FUEL TUBE (0811- )NUJ10) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
75259A
|
75259A
77259-74010
Hose, Fuel
[11.2008 - 03.2010] NUJ10..RHD |
77259-74010 |
— | ||
|
77251B
|
77251B
77251-74020
Tube, Fuel Main
[11.2008 - 05.2012] NUJ10 |
77251-74020 |
— | ||
|
77251C
|
77251C
95337-08007
Hose, Fuel, No.1
[11.2008 - 03.2010] NUJ10..RHD L=70 |
95337-08007 |
— | ||
|
77255D
|
77255D
77255-74010
Tube, Fuel Return
[11.2008 - 03.2010] NUJ10..RHD |
77255-74010 |
— | ||
|
77266A
|
77266A
77266-74010 Protector, Fuel Tube, No.1FUEL TUBE, NO.1 [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77266-74010 |
US $15.72 |
||
|
77267A
|
77267A
77267-74010 Protector, Fuel Tube, No.2FUEL TUBE, NO.2 [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77267-74010 |
US $3.93 |
||
|
77285D
|
77285D
77285-74010 Clamp, Fuel Tube, No.1FUEL TUBE, NO.1 [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77285-74010 |
US $3.79 |
||
|
77286K
|
77286K
77286-74010 Clamp, Fuel Tube, No.2FUEL TUBE, NO.2 [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77286-74010 |
US $3.20 |
||
|
77298C
|
77298C
77298-74010 Clamp, Fuel Tube, No.4FUEL TUBE, NO.4 [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
77298-74010 |
US $6.26 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
