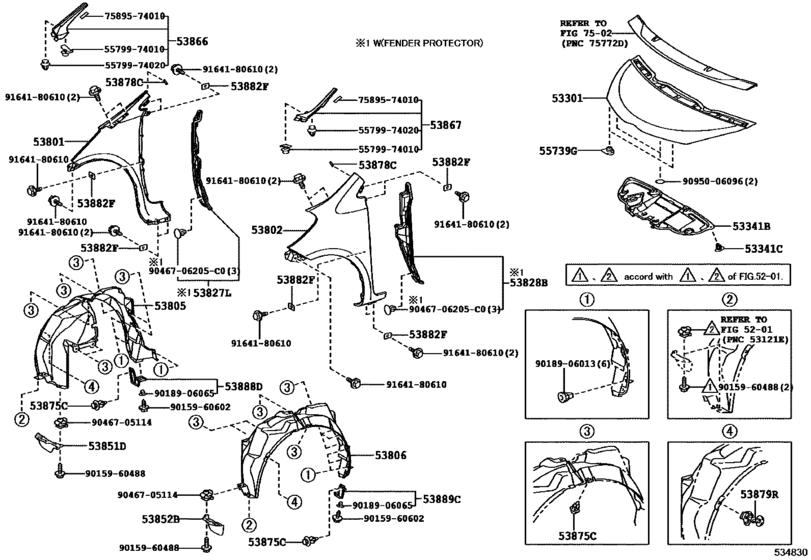

Hood & Front Fender ([11.2008 - ] (0811- )) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-74010
Hood Sub-Assy
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53301-74010 |
— | ||
| replacement | |||||
|
53301
|
53301
53301-74020 Hood Sub-Assy[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53301-74020 |
US $304.30 |
||
|
53341B
|
53341B
53341-74010
Insulator, Hood
[11.2008 - 05.2011] KGJ10,NGJ10,NUJ10 |
53341-74010 |
— | ||
| replacement | |||||
|
53341B
|
53341B
53341-74011 Insulator, Hood[11.2008 - 05.2011] KGJ10,NGJ10,NUJ10 |
53341-74011 |
US $60.10 |
||
|
53341C
|
53341C
90467-09050 Clip(For Hood Insulator)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90467-09050 |
from US $0.94 |
||
|
53801
|
53801
53801-74010 Fender Sub-Assy, Front Rh[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53801-74010 |
US $396.20 |
||
|
53802
|
53802
53802-74010 Fender Sub-Assy, Front Lh[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53802-74010 |
US $396.20 |
||
|
53805
|
53805
53805-74010 Shield Sub-Assy, Front Fender Splash, Rh[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53805-74010 |
US $74.18 |
||
|
53806
|
53806
53806-74010 Shield Sub-Assy, Front Fender Splash, LhFRONT FENDER SPLASH, LH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53806-74010 |
US $74.18 |
||
|
53827L
|
53827L
53827-74010 Protector, Front Fender Side Panel, RhFRONT FENDER SIDE PANEL, RH [11.2008 - 05.2014] NGJ10,NUJ10 |
53827-74010 |
US $37.91 |
||
|
53828B
|
53828B
53828-74010 Protector, Front Fender Side Panel, LhFRONT FENDER SIDE PANEL, LH [11.2008 - 05.2014] NGJ10,NUJ10 |
53828-74010 |
US $32.61 |
||
|
53851D
|
53851D
53851-74020
Pad, Front Wheel Opening Extension, Rh
[11.2008 - 09.2010] KGJ10,NGJ10,NUJ10 |
53851-74020 |
— | ||
|
53852B
|
53852B
53852-74020
Pad, Front Wheel Opening Extension, Lh
[11.2008 - 09.2010] KGJ10,NGJ10,NUJ10 |
53852-74020 |
— | ||
|
53866
|
53866
53866-74010 Seal, Front Fender To Cowl Side, RhFRONT FENDER TO COWL SIDE, RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53866-74010 |
US $25.08 |
||
|
53867
|
53867
53867-74010 Seal, Front Fender To Cowl Side, LhFRONT FENDER TO COWL SIDE, LH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53867-74010 |
US $25.08 |
||
|
53875C
|
53875C
90467-07214 Clip, Front Fender Liner[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90467-07214 |
from US $0.88 |
||
|
53878C
|
53878C
53878-74020 Spacer, Front FenderFRONT FENDER [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53878-74020 |
US $5.60 |
||
|
53879R
|
53879R
53879-28010 Retainer, Front Fender Liner[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53879-28010 |
from US $3.84 |
||
|
53882F
|
53882F
53882-16030 Pad, Rear Bumper, Center[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53882-16030 |
from US $0.96 |
||
|
53888D
|
53888D
53888-74011 Mudguard, Fender Rear Plate, RhFENDER REAR PLATE, RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53888-74011 |
US $10.48 |
||
|
53889C
|
53889C
53889-74011 Mudguard, Fender Rear Plate, LhFENDER REAR PLATE, LH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
53889-74011 |
US $15.52 |
||
|
55739G
|
55739G
55738-52060 Stopper, Hood, Rh[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
55738-52060 |
US $6.24 |
||
|
5579974010
|
5579974010
55799-74010 Clip(For Front Fender To Cowl Side Seal) |
55799-74010 |
US $1.60 |
||
|
5579974020
|
5579974020
55799-74020 Clip(For Front Fender Seal) |
55799-74020 |
US $1.12 |
||
|
7589574010
|
7589574010
75895-74010 Retainer, Luggage Door Moulding, No.3 |
75895-74010 |
US $3.20 |
||
|
9015960488
|
9015960488
90159-60488 SCREW WWASHER |
90159-60488 |
from US $0.88 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.64 |
||
|
9018906013
|
9018906013
90189-06013 CLIP |
90189-06013 |
from US $0.84 |
||
|
9018906065
|
9018906065
90189-06065 CLIP |
90189-06065 |
from US $0.80 |
||
|
9046705114
|
9046705114
90467-05114 Clip(For Front Bumper), No.1 |
90467-05114 |
from US $2.16 |
||
|
9046706205C0
|
9046706205C0
90467-06205-C0 Clip, Front Fender Side Panel Protector, No.1 |
90467-06205-C0 |
from US $0.80 |
||
|
9095006096
|
9095006096
90950-06096 Plug, Hole(For Hood) |
90950-06096 |
from US $1.48 |
||
|
9164180610
|
9164180610
91641-80610 BOLT WWASHER |
91641-80610 |
US $0.52 |
||
