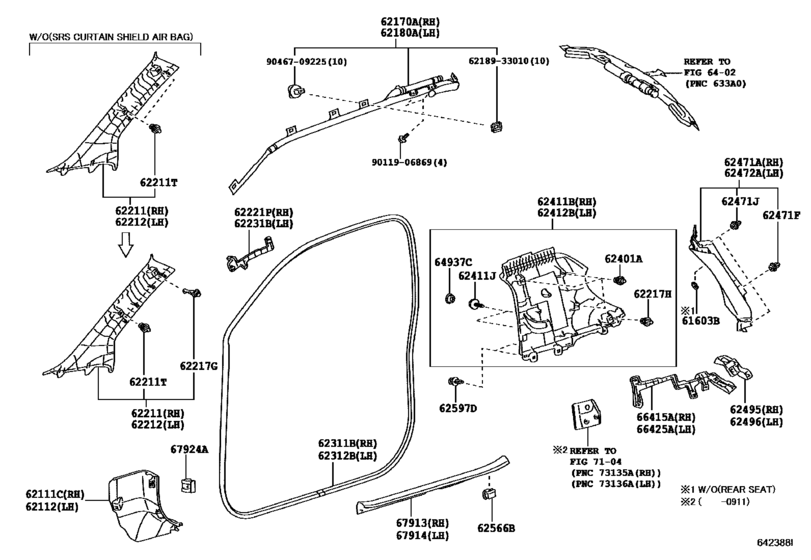

Inside Trim Board & Door Opening Trim Moulding ([11.2008 - ] (0811- )) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62111C
|
62111C
62111-74010-E0 Board, Cowl Side Trim, RhCOWL SIDE TRIM, RH [11.2008 - 05.2010] KGJ10,NGJ10,NUJ10..RHD PLUM,TRIM4#,5# |
62111-74010-E0 |
US $43.39 |
||
|
62112
|
62112
62112-74020-E0
Board, Cowl Side Trim, Lh
[11.2008 - 05.2010] KGJ10,NGJ10,NUJ10 PLUM,TRIM4#,5# |
62112-74020-E0 |
— | ||
|
62170A
|
62170A
62170-74020 Air Bag Assy, Curtain Shield, RhCURTAIN SHIELD, RH [11.2008 - 01.2013] KGJ10,NGJ10,NUJ10 |
62170-74020 |
US $495.04 |
||
| replacement | |||||
|
62170A
|
62170A
62170-74051 Air Bag Assy, Curtain Shield, Rh[11.2008 - 01.2013] KGJ10,NGJ10,NUJ10 |
62170-74051 |
US $412.05 |
||
|
62180A
|
62180A
62180-74020 Air Bag Assy, Curtain Shield, LhCURTAIN SHIELD, LH [11.2008 - 01.2013] KGJ10,NGJ10,NUJ10 |
62180-74020 |
US $495.04 |
||
| replacement | |||||
|
62180A
|
62180A
62180-74051 Air Bag Assy, Curtain Shield, Lh[11.2008 - 01.2013] KGJ10,NGJ10,NUJ10 |
62180-74051 |
US $412.05 |
||
|
62211
|
62211
62211-74010-B0 Garnish, Front Pillar, RhFRONT PILLAR, RH [11.2008 - 03.2010] NUJ10..RHD GRAY,TRIM1#,4#,5#,7#; NUJ10..RHD SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION,GRAY,TRIM1#,4#,5#,7# |
62211-74010-B0 |
US $46.88 |
||
|
62211T
|
62211T
90467-10161 Clip[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10; NGJ10..RHD..N;KGJ10,NUJ10..RHD SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION |
90467-10161 |
from US $0.92 |
||
|
62212
|
62212
62212-74010-B0 Garnish, Front Pillar, LhFRONT PILLAR, LH [11.2008 - 03.2010] NUJ10..RHD GRAY,TRIM1#,4#,5#,7#; NUJ10..RHD SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION,GRAY,TRIM1#,4#,5#,7# |
62212-74010-B0 |
US $46.88 |
||
|
62217G
|
62217G
62217-52050 Clip, Front Pillar Garnish[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10; NGJ10..RHD..N;KGJ10,NUJ10..RHD SRS AIR BAG-*DRP&SIDE&KNEE&CUSHION |
62217-52050 |
US $3.03 |
||
|
62217H
|
62217H
90467-10161 Clip[12.2009 - 05.2014] KGJ10,NGJ10,NUJ10 |
90467-10161 |
from US $0.92 |
||
|
62217H
|
62217H
90467-10188 Clip(For Deck Boad)[11.2008 - 12.2009] KGJ10,NGJ10,NUJ10 |
90467-10188 |
from US $1.05 |
||
|
62221P
|
62221P
62221-74010 Spacer, Front Pillar, No.1 RhFRONT PILLAR, NO.1 RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
62221-74010 |
US $10.63 |
||
|
62231B
|
62231B
62231-74010 Spacer, Front Pillar, No.1 LhFRONT PILLAR, NO.1 LH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
62231-74010 |
US $10.63 |
||
|
62311B
|
62311B
62311-74010 Weatherstrip, Front Door Opening Trim, RhFRONT DOOR OPENING TRIM, RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
62311-74010 |
US $90.85 |
||
|
62312B
|
62312B
62312-74010 Weatherstrip, Front Door Opening Trim, LhFRONT DOOR OPENING TRIM, LH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
62312-74010 |
US $90.85 |
||
|
62401A
|
62401A
63395-12150 Clip (For Center Pillar Garnish Panel, Upper)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
63395-12150 |
from US $0.96 |
||
|
62411B
|
62411B
62411-74010-B0 Garnish, Center Pillar, Upper RhCENTER PILLAR, UPPER RH [11.2008 - 03.2010] NUJ10..RHD GRAY,TRIM1#,4#,5#,7# |
62411-74010-B0 |
US $65.87 |
||
|
62411J
|
62411J
64949-74010 Fastener(For Center Pillar Garnish)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
64949-74010 |
US $1.41 |
||
|
62412B
|
62412B
62412-74010-B0 Garnish, Center Pillar, Upper LhCENTER PILLAR, UPPER LH [11.2008 - 03.2010] NUJ10..RHD GRAY,TRIM1#,4#,5#,7# |
62412-74010-B0 |
US $70.18 |
||
|
62471A
|
62471A
62471-74010-B0 Garnish, Roof Side, Inner RhROOF SIDE, INNER RH [11.2008 - 03.2010] NUJ10..RHD GRAY,TRIM1#,4#,5#,7# |
62471-74010-B0 |
US $41.06 |
||
|
62471F
|
62471F
90467-10161 Clip[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90467-10161 |
from US $0.92 |
||
|
62471J
|
62471J
90467-10167 Clip(For Rear Floor Finish Plate)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90467-10167 |
from US $1.01 |
||
|
62472A
|
62472A
62472-74010-B0 Garnish, Roof Side, Inner LhROOF SIDE, INNER LH [11.2008 - 03.2010] NUJ10..RHD GRAY,TRIM1#,4#,5#,7# |
62472-74010-B0 |
US $41.06 |
||
|
62495
|
62495
62495-74010 Spacer, Roof Side Inner Garnish, RhROOF SIDE INNER GARNISH, RH [11.2008 - 11.2010] KGJ10,NGJ10,NUJ10 |
62495-74010 |
US $10.34 |
||
|
62496
|
62496
62496-74010 Spacer, Roof Side Inner Garnish, LhROOF SIDE INNER GARNISH, LH [11.2008 - 11.2010] KGJ10,NGJ10,NUJ10 |
62496-74010 |
US $10.34 |
||
|
62566B
|
62566B
62566-30010 Clip, No.2(For Cowl Side Trim)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
62566-30010 |
US $3.04 |
||
|
62597D
|
62597D
65487-74010 Clip[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
65487-74010 |
US $3.68 |
||
|
64937C
|
64937C
64937-74010 Cap[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
64937-74010 |
US $3.68 |
||
|
66415A
|
66415A
66415-74010 Spacer, Side Rail, Rear No.2 RhSIDE RAIL, REAR NO.2 RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
66415-74010 |
US $17.62 |
||
|
66425A
|
66425A
66425-74010 Spacer, Side Rail, Rear No.2 LhSIDE RAIL, REAR NO.2 LH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
66425-74010 |
US $17.62 |
||
|
67913
|
67913
67913-74010-E0 Plate, Front Door Scuff, RhFRONT DOOR SCUFF, RH [11.2008 - 05.2010] KGJ10,NGJ10,NUJ10 PLUM,TRIM4#,5# |
67913-74010-E0 |
US $56.49 |
||
|
67914
|
67914
67914-74010-E0 Plate, Front Door Scuff, LhFRONT DOOR SCUFF, LH [11.2008 - 05.2010] KGJ10,NGJ10,NUJ10 PLUM,TRIM4#,5# |
67914-74010-E0 |
US $56.49 |
||
|
67924A
|
67924A
67924-52140 Clip(For Cowl Side Trim)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
67924-52140 |
US $2.97 |
||
|
6218933010
|
6218933010
62189-33010 Spacer, Curtain Shield Air Bag Clip |
62189-33010 |
US $0.96 |
||
|
9011906869
|
9011906869
90119-06869 Bolt, W/washer |
90119-06869 |
US $0.96 |
||
|
9046709225
|
9046709225
90467-09225 New Genuine Part |
90467-09225 |
US $2.80 |
||
