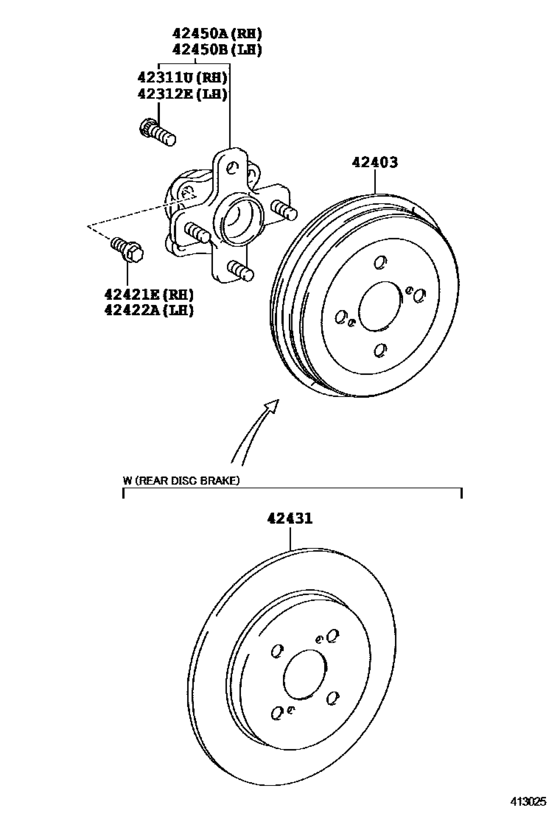

Rear Axle Shaft & Hub ([11.2008 - ] (0811- )) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42311U
|
42311U
90942-02049 Bolt, Hub[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
42311U
|
42311U
90942-02082 Bolt, Hub[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90942-02082 |
from US $2.46 |
||
|
42312E
|
42312E
90942-02049 Bolt, Hub[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
42312E
|
42312E
90942-02082 Bolt, Hub[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90942-02082 |
from US $2.46 |
||
|
42403
|
42403
42431-74010 Drum Sub-Assy, Rear BrakeREAR BRAKE [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
42431-74010 |
US $137.64 |
||
|
42421E
|
42421E
90105-12350 Bolt (For Rear Axle Bearing Case Rh)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90105-12350 |
from US $1.38 |
||
|
42422A
|
42422A
90105-12350 Bolt (For Rear Axle Bearing Case Rh)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90105-12350 |
from US $1.38 |
||
|
42431
|
42431
42431-52080 Disc, Rear[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
42431-52080 |
US $112.48 |
||
|
42450A
|
42450A
42450-74010 Hub & Bearing Assy, Rear Axle, RhREAR AXLE, RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
42450-74010 |
US $403.20 |
||
|
42450B
|
42450B
42450-74010 Hub & Bearing Assy, Rear Axle, RhREAR AXLE, RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
42450-74010 |
US $403.20 |
||
