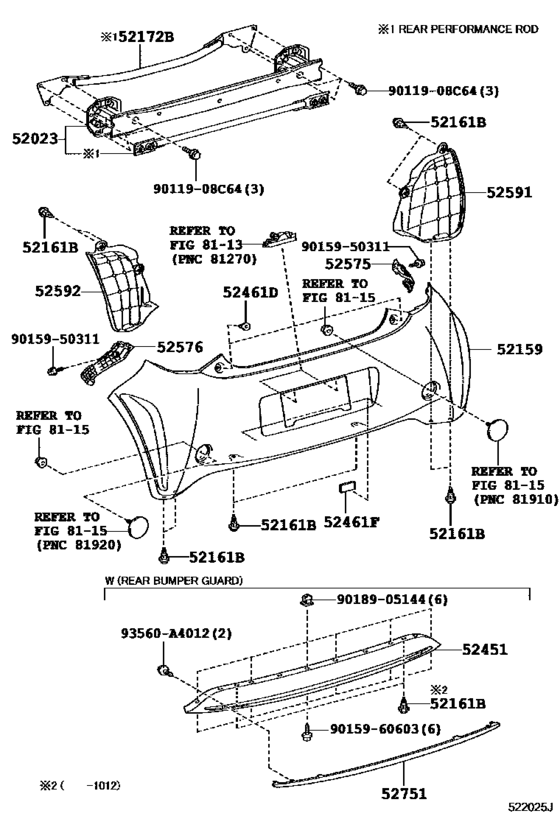

Rear Bumper & Bumper Stay ([11.2008 - ] (0811- )) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
58303-74010 Reinforcement Sub-Assy, Rear BumperREAR BUMPER [11.2008 - 05.2014] NGJ10,NUJ10 |
58303-74010 |
US $247.52 |
||
|
52159
|
52159
52159-74900
Cover, Rear Bumper
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
52159-74900 |
— | ||
|
52161B
|
52161B
52161-16010 Clip[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161B
|
52161B
52161-0K040 Clip[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
52161-0K040 |
from US $1.46 |
||
|
52161B
|
52161B
52161-02020 Clip[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
52161-02020 |
US $5.27 |
||
|
52172B
|
52172B
52043-74010 Reinforcement, Rear Bumper, No.2REAR BUMPER, NO.2 [11.2008 - 12.2010] NGJ10,NUJ10 |
52043-74010 |
US $256.26 |
||
|
52461D
|
52461D
52461-52020 Pad, Rear Bumper, Center[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
52461-52020 |
US $9.44 |
||
|
52461F
|
52461F
52461-74010 Pad, Rear BumperREAR BUMPER [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
52461-74010 |
US $3.68 |
||
|
52575
|
52575
52575-74010 Retainer, Rear Bumper Side, RhREAR BUMPER SIDE, RH [11.2008 - 09.2010] KGJ10,NGJ10,NUJ10 |
52575-74010 |
US $34.65 |
||
| replacement | |||||
|
52575
|
52575
52575-74012 Retainer, Rear Bumper Side, Rh[11.2008 - 09.2010] KGJ10,NGJ10,NUJ10 |
52575-74012 |
US $46.21 |
||
|
52576
|
52576
52576-74010 Retainer, Rear Bumper Side, LhREAR BUMPER SIDE, LH [11.2008 - 09.2010] KGJ10,NGJ10,NUJ10 |
52576-74010 |
US $34.65 |
||
| replacement | |||||
|
52576
|
52576
52576-74012 Retainer, Rear Bumper Side, Lh[11.2008 - 09.2010] KGJ10,NGJ10,NUJ10 |
52576-74012 |
US $46.21 |
||
|
52591
|
52591
52591-74010 Seal, Rear Bumper Side, RhREAR BUMPER SIDE, RH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
52591-74010 |
from US $50.23 |
||
|
52592
|
52592
52592-74010 Seal, Rear Bumper Side, LhREAR BUMPER SIDE, LH [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
52592-74010 |
US $33.96 |
||
|
93560A4012
|
93560A4012
93560-A4012 SCREW TAPPING |
93560-A4012 |
US $1.12 |
||
|
9011908C64
|
9011908C64
90119-08C64 Bolt with washer |
90119-08C64 |
US $1.44 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.84 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.66 |
||
|
9018905144
|
9018905144
90189-05144 GROMMET SCREW |
90189-05144 |
from US $0.80 |
||
