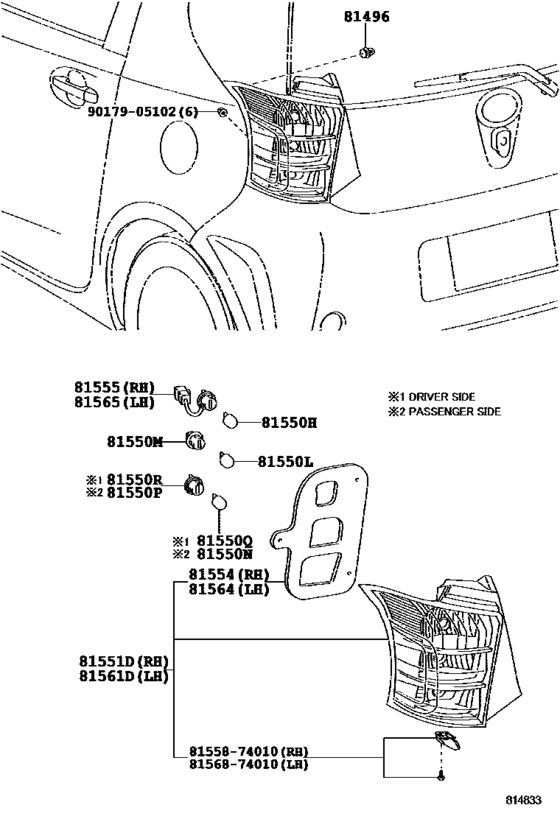

Rear Combination Lamp ([11.2008 - ] (0811- )) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-60010 Guide, Rear Combination Lamp[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
81496-60010 |
US $1.60 |
||
|
81550H
|
81550H
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90981-13044 |
from US $3.65 |
||
|
81550L
|
81550L
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90981-15011 |
from US $4.60 |
||
|
81550M
|
81550M
81515-42050 Plug Assy, Front Turn Signal Lamp[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
81515-42050 |
US $10.56 |
||
|
81550N
|
81550N
90981-13043 Bulb (12V 21W)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90981-13043 |
from US $3.52 |
||
|
81550P
|
81550P
81675-22070 Socket, Back Up Lamp[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
81675-22070 |
US $11.50 |
||
|
81550Q
|
81550Q
90981-13043 Bulb (12V 21W)[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
90981-13043 |
from US $3.52 |
||
|
81550R
|
81550R
81675-22070 Socket, Back Up Lamp[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
81675-22070 |
US $11.50 |
||
|
81551D
|
81551D
81551-74020 Lens & Body, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [11.2008 - 08.2012] KGJ10,NGJ10,NUJ10..RHD |
81551-74020 |
US $212.58 |
||
| replacement | |||||
|
81551D
|
81551D
81551-74021 Lens & Body, Rear Combination Lamp, Rh[11.2008 - 08.2012] KGJ10,NGJ10,NUJ10..RHD |
81551-74021 |
US $176.18 |
||
|
81551D
|
81551D
81551-74060
Lens & Body, Rear Combination Lamp, Rh
[11.2008 - 08.2012] NUJ10..RHD;NGJ10..RHD..R HEADLAMP-WITH(SMOKE) |
81551-74060 |
— | ||
| replacement | |||||
|
81551D
|
81551D
81551-74061
Lens & Body, Rear Combination Lamp, Rh
[11.2008 - 08.2012] NUJ10..RHD;NGJ10..RHD..R HEADLAMP-WITH(SMOKE) |
81551-74061 |
— | ||
|
81554
|
81554
81554-74010
Gasket, Rear Combination Lamp Body, Rh
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
81554-74010 |
— | ||
|
81555
|
81555
81555-21200 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
81555-21200 |
US $11.50 |
||
|
81561D
|
81561D
81561-74010 Lens & Body, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [11.2008 - 08.2012] KGJ10,NGJ10,NUJ10..RHD |
81561-74010 |
US $212.58 |
||
| replacement | |||||
|
81561D
|
81561D
81561-74011 Lens & Body, Rear Combination Lamp, Lh[11.2008 - 08.2012] KGJ10,NGJ10,NUJ10..RHD |
81561-74011 |
US $176.18 |
||
|
81561D
|
81561D
81561-74050
Lens & Body, Rear Combination Lamp, Lh
[11.2008 - 08.2012] NUJ10..RHD;NGJ10..RHD..R HEADLAMP-WITH(SMOKE) |
81561-74050 |
— | ||
| replacement | |||||
|
81561D
|
81561D
81561-74051
Lens & Body, Rear Combination Lamp, Lh
[11.2008 - 08.2012] NUJ10..RHD;NGJ10..RHD..R HEADLAMP-WITH(SMOKE) |
81561-74051 |
— | ||
|
81564
|
81564
81554-74010
Gasket, Rear Combination Lamp Body, Rh
[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
81554-74010 |
— | ||
|
81565
|
81565
81555-21200 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
81555-21200 |
US $11.50 |
||
|
8155874010
|
8155874010
81558-74010 Shade, Rear Combination Lamp, No.1 Rh |
81558-74010 |
US $10.05 |
||
|
8156874010
|
8156874010
81568-74010 Shade, Rear Combination Lamp, No.1 Lh |
81568-74010 |
US $9.78 |
||
|
9017905102
|
9017905102
90179-05102 Nut |
90179-05102 |
from US $0.78 |
||
