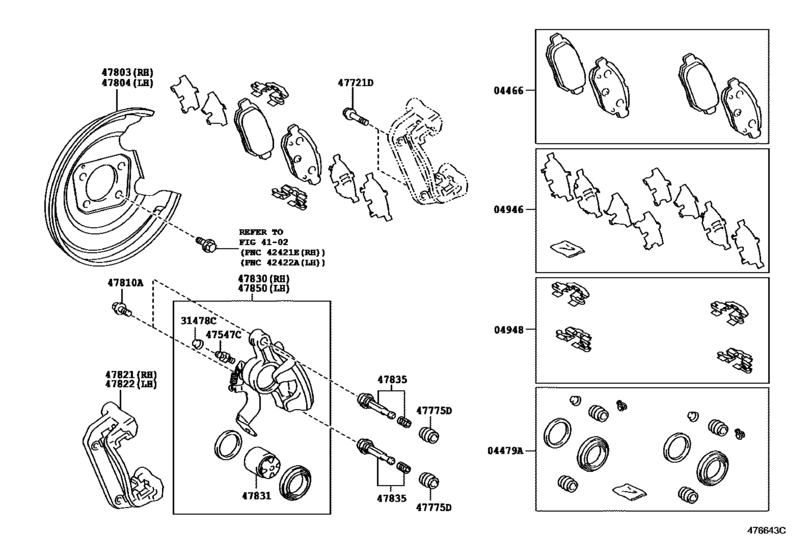

Rear Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- )) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-52140
Pad Kit, Disc Brake, Rear
[11.2008 - 02.2012] NUJ10;KGJ10,NGJ10..LHD MARK NBK D6234,WITH(REAR DISC BRAKE) |
04466-52140 |
— | ||
| replacement | |||||
|
04466
|
04466
04466-52170 Pad Kit, Disc Brake, Rear[11.2008 - 02.2012] NUJ10;KGJ10,NGJ10..LHD MARK NBK D6234,WITH(REAR DISC BRAKE) |
04466-52170 |
US $90.28 |
||
|
04479A
|
04479A
04479-52170 Cylinder Kit, Disc Brake, Rear[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
04479-52170 |
US $24.62 |
||
|
04946
|
04946
04946-52080 Shim Kit, Anti Squeal(For Rear Disc Brake)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
04946-52080 |
US $9.92 |
||
|
04948
|
04948
04948-52040
Fitting Kit, Disc Brake, Rear
[11.2008 - 01.2012] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
04948-52040 |
— | ||
| replacement | |||||
|
04948
|
04948
04948-12060 Fitting Kit, Disc Brake, Rear[11.2008 - 01.2012] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
04948-12060 |
from US $15.81 |
||
|
31478C
|
31478C
31478-52010 Cap, Bleeder Plug(For Rear Disc Brake)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
31478-52010 |
US $2.56 |
||
|
47547C
|
47547C
47847-52050 Plug, Bleeder(For Rear Disc Brake)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47847-52050 |
US $3.52 |
||
|
47721D
|
47721D
90105-10404 Bolt (For Rear Axle Carrier Rh)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD *10-1.25PX24-21.5,WITH(REAR DISC BRAKE) |
90105-10404 |
US $1.60 |
||
|
47775D
|
47775D
47875-12150 Boot, Bush Dust(For Rear Disc Brake)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47875-12150 |
from US $3.52 |
||
|
47803
|
47803
47803-74010 Cover Sub-Assy, Disc Brake Dust, Rear RhDISC BRAKE DUST, REAR RH [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47803-74010 |
US $17.08 |
||
|
47804
|
47804
47804-74010 Cover Sub-Assy, Disc Brake Dust, Rear LhDISC BRAKE DUST, REAR LH [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47804-74010 |
US $17.08 |
||
|
47810A
|
47810A
90015-AA102 Bolt(For Rear Disc Brake Cylinder Mouting)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
90015-AA102 |
US $1.44 |
||
|
47821
|
47821
47821-12151 Mounting, Rear Disc Brake Cylinder, Rh[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47821-12151 |
US $76.96 |
||
|
47822
|
47822
47821-12151 Mounting, Rear Disc Brake Cylinder, Rh[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47821-12151 |
US $76.96 |
||
|
47830
|
47830
47830-52161 Cylinder Assy, Rear Disc Brake, RhDISC BRAKE, REAR RH [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47830-52161 |
US $309.25 |
||
|
47831
|
47831
47831-52090 Piston, Rear Disc Brake[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47831-52090 |
from US $10.72 |
||
|
47835
|
47835
47835-12150 Pin, Cylinder Slide, No.1(For Rear Disc Brake)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47835-12150 |
from US $6.40 |
||
|
47850
|
47850
47850-52161 Cylinder Assy, Disc Brake, Rear LhDISC BRAKE, REAR LH [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD WITH(REAR DISC BRAKE) |
47850-52161 |
US $309.25 |
||
