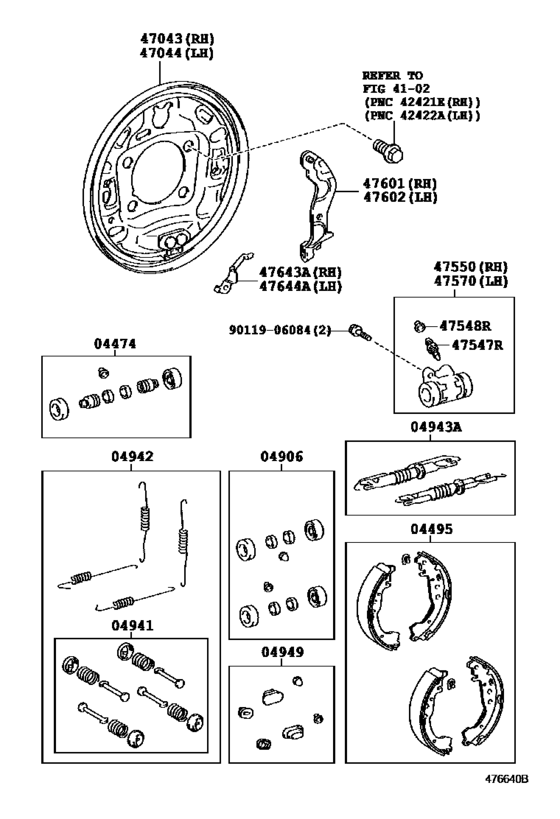

Rear Drum Brake Wheel Cylinder & Backing Plate ([11.2008 - 09.2010] (0811-1009)) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-52010 Cylinder Kit, Rear Wheel[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
04474-52010 |
from US $23.86 |
||
|
04495
|
04495
04495-74020
Shoe Kit, Rear Brake
[11.2008 - 09.2010] NUJ10;KGJ10,NGJ10..LHD MARK NBK LN521 |
04495-74020 |
— | ||
| replacement | |||||
|
04495
|
04495
04495-74040
Shoe Kit, Rear Brake
[11.2008 - 09.2010] NUJ10;KGJ10,NGJ10..LHD MARK NBK LN521 |
04495-74040 |
— | ||
|
04906
|
04906
04906-52010 Cup Kit, Rear Wheel Cylinder[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
04906-52010 |
from US $12.34 |
||
|
04941
|
04941
04941-52010 Spring Kit, Rear Brake Shoe Hold Down[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
04941-52010 |
US $38.30 |
||
|
04942
|
04942
04942-74010 Spring Kit, Rear BrakeREAR BRAKE [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
04942-74010 |
US $25.48 |
||
|
04943A
|
04943A
04943-74010 Strut Kit, Rear BrakeREAR BRAKE [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
04943-74010 |
US $14.12 |
||
|
04949
|
04949
04949-74010 Plug Kit, Rear BrakeREAR BRAKE [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
04949-74010 |
US $3.93 |
||
|
47043
|
47043
47043-74010 Plate Sub-Assy, Brake Backing, Rear RhBRAKE BACKING, REAR RH [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
47043-74010 |
US $44.03 |
||
|
47044
|
47044
47044-74010 Plate Sub-Assy, Brake Backing, Rear LhBRAKE BACKING, REAR LH [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
47044-74010 |
US $44.03 |
||
|
47547R
|
47547R
47547-20010 Plug, Bleeder(For Release Cylinder)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
47547-20010 |
from US $3.20 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
31478-30010 |
from US $1.66 |
||
|
47550
|
47550
47550-52011 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
47550-52011 |
from US $65.15 |
||
|
47570
|
47570
47570-52011 Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)[11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
47570-52011 |
from US $64.33 |
||
|
47601
|
47601
47601-74010 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)PARKING BRAKE SHOE, RH(FOR REAR BRAKE) [11.2008 - 09.2010] NUJ10;KGJ10,NGJ10..LHD |
47601-74010 |
US $7.28 |
||
|
47602
|
47602
47602-74010 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)PARKING BRAKE SHOE, LH (FOR REAR BRAKE) [11.2008 - 09.2010] NUJ10;KGJ10,NGJ10..LHD |
47602-74010 |
US $7.28 |
||
|
47643A
|
47643A
47643-74010 Lever, Rear Brake Automatic Adjust, RhREAR BRAKE AUTOMATIC ADJUST, RH [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
47643-74010 |
US $2.45 |
||
|
47644A
|
47644A
47644-74010 Lever, Rear Brake Automatic Adjust, LhREAR BRAKE AUTOMATIC ADJUST, LH [11.2008 - 05.2014] NUJ10;KGJ10,NGJ10..LHD |
47644-74010 |
US $2.04 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $1.05 |
||
