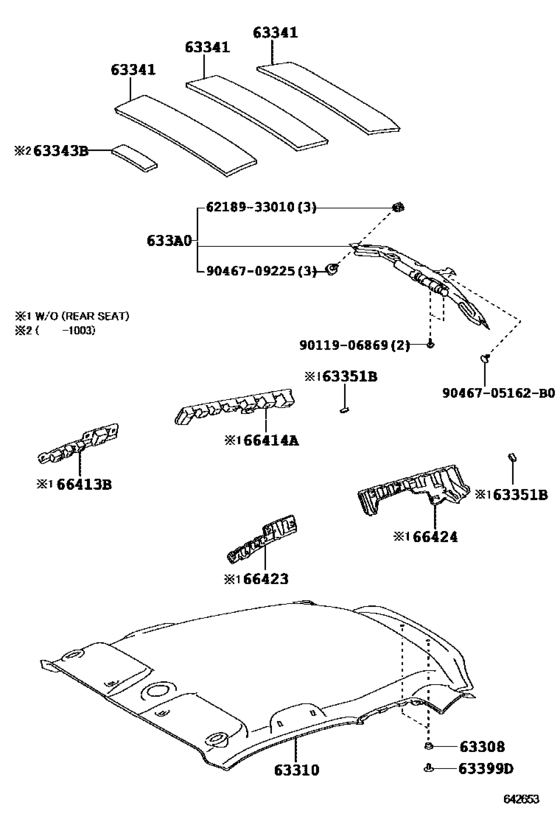

Roof Headlining & Silencer Pad ([11.2008 - ] (0811- )) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
633A0
|
633A0
633A0-74020 Air Bag Assy, Rear Window Curtain ShieldREAR WINDOW CURTAIN SHIELD [11.2008 - 01.2013] KGJ10,NGJ10,NUJ10 |
633A0-74020 |
US $889.62 |
||
| replacement | |||||
|
633A0
|
633A0
633A0-74011 Air Bag Assy, Rear Window Curtain Shield[11.2008 - 01.2013] KGJ10,NGJ10,NUJ10 |
633A0-74011 |
US $741.10 |
||
|
63308
|
63308
63308-74010 Retainer Sub-Assy, Garnish MaleGARNISH MALE [11.2008 - 05.2014] KGJ10,NGJ10,NUJ10 |
63308-74010 |
US $2.08 |
||
|
63310
|
63310
63310-74010-B0 Headlining Assy, RoofROOF [11.2008 - 02.2010] KGJ10..R GRAY,TRIM1#,4#,5#,7#,9#; KGJ10,NGJ10,NUJ10..N GRAY,TRIM1#,4#,5#,7# |
63310-74010-B0 |
US $518.34 |
||
| replacement | |||||
|
63310
|
63310
63310-74012-B0 Headlining Assy, Roof[11.2008 - 02.2010] KGJ10..R GRAY,TRIM1#,4#,5#,7#,9#; KGJ10,NGJ10,NUJ10..N GRAY,TRIM1#,4#,5#,7# |
63310-74012-B0 |
US $430.98 |
||
|
63341
|
63341
63341-74010 Pad, Roof Silencer, No.1ROOF SILENCER, NO.1 [11.2008 - 03.2010] KGJ10,NGJ10,NUJ10 |
63341-74010 |
US $9.32 |
||
|
63343B
|
63343B
63343-74010 Pad, Roof Silencer, RearROOF SILENCER, REAR [11.2008 - 03.2010] KGJ10,NGJ10,NUJ10 |
63343-74010 |
US $3.49 |
||
|
63399D
|
63399D
63399-74010-B0 Clip, Roof HeadliningROOF HEADLINING [11.2008 - 03.2010] NUJ10..RHD GRAY,TRIM1#,4#,5#,7# |
63399-74010-B0 |
US $2.56 |
||
|
6218933010
|
6218933010
62189-33010 Spacer, Curtain Shield Air Bag Clip |
62189-33010 |
US $0.96 |
||
|
9011906869
|
9011906869
90119-06869 Bolt, W/washer |
90119-06869 |
US $0.96 |
||
|
9046705162B0
|
9046705162B0
90467-05162-B0 Clip(For Rear Door Service Hole Cover) |
90467-05162-B0 |
from US $1.12 |
||
|
9046709225
|
9046709225
90467-09225 New Genuine Part |
90467-09225 |
US $2.80 |
||
