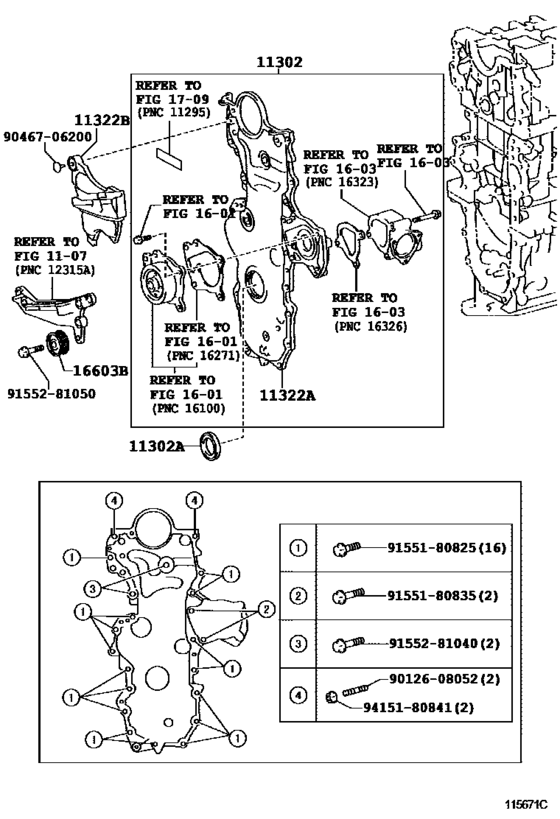

Timing Gear Cover & Rear End Plate ([11.2008 - 12.2010] (0811-1012)1NDTV) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11302
|
11302
11310-33020
Cover Sub-Assy, Timing Chain Or Belt
[11.2008 - 09.2010] 1NDTV..NUJ10 |
11310-33020 |
— | ||
|
11302A
|
11302A
90311-40033 Seal, Oil(For Timing Chain Or Belt Cover)OIL(FOR TIMING CHAIN OR BELT COVER) [11.2008 - 05.2012] 1NDTV..NUJ10 |
90311-40033 |
US $5.82 |
||
| replacement | |||||
|
11302A
|
11302A
90311-40040 Seal, Oil(For Timing Chain Or Belt Cover)[11.2008 - 05.2012] 1NDTV..NUJ10 |
90311-40040 |
from US $3.71 |
||
|
11322A
|
11322A
11321-33030
Cover, Timing Belt, No.1
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
11321-33030 |
— | ||
|
11322B
|
11322B
11322-33030
Cover, Timing Belt, No.2
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
11322-33030 |
— | ||
|
16603B
|
16603B
16603-33010
Pulley Sub-Assy, Idler
[11.2008 - 03.2010] 1NDTV..NUJ10..RHD |
16603-33010 |
— | ||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.90 |
||
|
9046706200
|
9046706200
90467-06200 CLIP |
90467-06200 |
US $1.60 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9155180835
|
9155180835
91551-80835 Bolt (For Front Oil Pump Setting) |
91551-80835 |
from US $1.28 |
||
|
9155281040
|
9155281040
91552-81040 Bolt(For Alternator) |
91552-81040 |
from US $1.21 |
||
|
9155281050
|
9155281050
91552-81050 Bolt, No.2(For Alternator) |
91552-81050 |
from US $1.48 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.92 |
||
