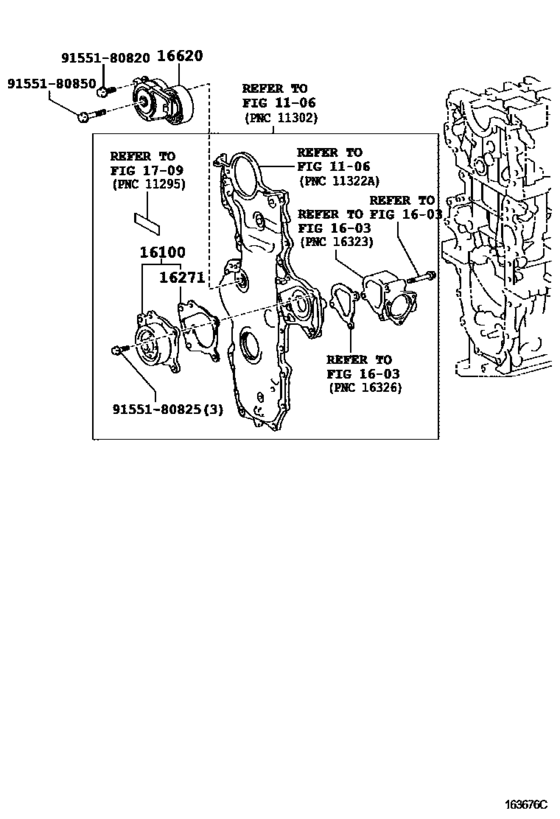

Water Pump ([11.2008 - ] (0811- )1NDTV) Diagram Toyota IQ
- Year
- 2008 - 2010
- Sales region
- Europe
- Frame
- NUJ10
- grade
- N
- ENGINE
- 1NDTV
- TRANSMISSION
- MTM
- From
- 11.2008
- To
- 03.2010
- Gear Shift Type
- 6F
- Vehicle Model
- IQ
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-39535
Pump Assy, Engine Water
[11.2008 - 12.2010] 1NDTV..NUJ10 |
16100-39535 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-39536
Pump Assy, Engine Water
[11.2008 - 12.2010] 1NDTV..NUJ10 |
16100-39536 |
— | ||
|
16271
|
16271
16271-33040
Gasket, Water Pump
[11.2008 - 05.2012] 1NDTV..NUJ10 |
16271-33040 |
— | ||
|
16620
|
16620
16620-33030
Tensioner Assy, V-Ribbed Belt
[11.2008 - 12.2010] 1NDTV..NUJ10 |
16620-33030 |
— | ||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.80 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
|
9155180850
|
9155180850
91551-80850 Bolt, Compressor, No.1 |
91551-80850 |
from US $1.05 |
||
