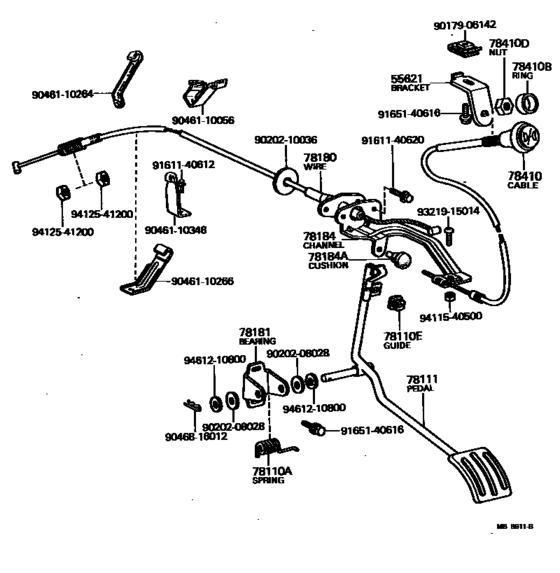

Accelerator Link ([02.1974 - 07.1980] (7402-8007)BJ4#) Diagram Toyota LAND CRUISER
- Year
- 1974 - 1979
- Sales region
- Japan
- Frame
- BJ43
- body
- TP
- ENGINE
- B
- Model
- LAND CRUISER 40
- From
- 02.1974
- To
- 02.1979
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- TPC
- Roll Bar
- WORB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55621
|
55621
78442-90302
Bracket, Throttle Rod Support
[02.1974 - 07.1980] BJ4# |
78442-90302 |
— | ||
|
78110A
|
78110A
90508-26125
Spring (For Accelerator Pedal Rod)
[03.1969 - 07.1980] BJ4#,FJ4#,5# |
90508-26125 |
— | ||
|
78110E
|
78110E
78449-90300
Guide, Throttle Wire
[10.1971 - 07.1980] BJ4#,FJ4#,5# W/THROTTLE ROD |
78449-90300 |
— | ||
|
78111
|
78111
78101-90300
Pedal, Accelerator
[10.1971 - 07.1980] BJ4#,FJ4# |
78101-90300 |
— | ||
|
78180
|
78180
78180-90306
Wire Assy, Accelerator
[02.1974 - 09.1977] BJ4# |
78180-90306 |
— | ||
|
78180
|
78180
78180-90310
Wire Assy, Accelerator
[09.1977 - 07.1980] BJ4# |
78180-90310 |
— | ||
|
78181
|
78181
78181-60030
Bearing, Accelerator Pedal Rod Support
[03.1969 - 07.1980] BJ4#,FJ4#,5# |
78181-60030 |
— | ||
|
78184
|
78184
78441-90300
Channel, Accelerator Idle Adjusting Stopper
[10.1971 - 07.1980] BJ40,43,FJ4#,5# W/THROTTLE ROD |
78441-90300 |
— | ||
|
78184A
|
78184A
90541-06008 Cushion, No.1(For Clutch Pedal)[03.1969 - 07.1980] BJ4#,FJ4#,5# |
90541-06008 |
from US $1.60 |
||
|
78410
|
78410
78410-90301
Cable Assy, Throttle Control
[09.1972 - 07.1980] BJ4#,FJ4# |
78410-90301 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90800
Cable Assy, Throttle Control
[09.1972 - 07.1980] BJ4#,FJ4# |
78410-90800 |
— | ||
|
78410B
|
78410B
78311-90351
Ring, Choke
[09.1972 - 07.1980] BJ4#,FJ4#,5# |
78311-90351 |
— | ||
|
78410D
|
78410D
90170-11002
Nut, Choke
[09.1972 - 07.1980] BJ4#,FJ4#,5# |
90170-11002 |
— | ||
|
9017906142
|
9017906142
90179-06142
New Genuine Part
|
90179-06142 |
— | ||
| replacement | |||||
|
9017906142
|
9017906142
90179-06140
New Genuine Part
|
90179-06140 |
— | ||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9020210036
|
9020210036
90202-10036
New Genuine Part
|
90202-10036 |
— | ||
|
9046110056
|
9046110056
90461-10056
New Genuine Part
|
90461-10056 |
— | ||
|
9046110264
|
9046110264
90461-10264 New Genuine Part |
90461-10264 |
US $8.88 |
||
|
9046110266
|
9046110266
90461-10266 New Genuine Part |
90461-10266 |
US $3.20 |
||
|
9046110348
|
9046110348
90461-10348
Bracket, Accelerator Wire Support
|
90461-10348 |
— | ||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.94 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9161140620
|
9161140620
91611-40620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-40620 |
US $2.04 |
||
| replacement | |||||
|
9161140620
|
9161140620
91611-60620 Screw Or Bolt(For Valve Rocker Shaft Lock) |
91611-60620 |
US $1.44 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9321915014
|
9321915014
93219-15014 Screw, Cover Set, No.1 |
93219-15014 |
US $1.92 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9412541200
|
9412541200
94125-41200 Nut, Steering Wheel Set |
94125-41200 |
from US $1.22 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.86 |
||
