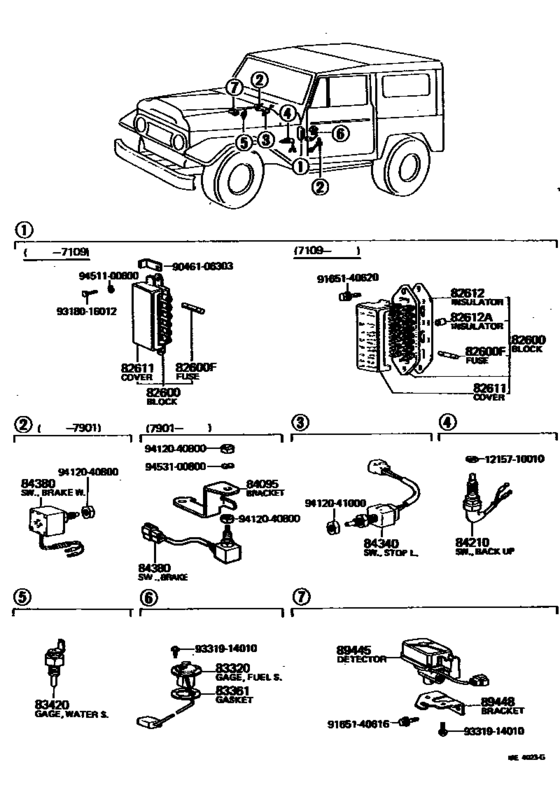

Switch & Relay & Computer ([03.1969 - 07.1980] (6903-8007)FJ4#) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- U.S.A.
- Frame
- FJ40
- body
- V
- ENGINE
- F
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Back Door
- VLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82600
|
82600
82600-30022
Block Assy, Fuse
[03.1969 - 09.1971] FJ40,55 |
82600-30022 |
— | ||
|
82600
|
82600
82600-60901
Block Assy, Fuse
[09.1971 - 09.1977] FJ4#,55 |
82600-60901 |
— | ||
|
82600F
|
82600F
99118-62905 Fuse, Fuse BlockFUSE BLOCK [03.1969 - 09.1971] FJ40,55 5A,5A |
99118-62905 |
US $1.28 |
||
|
82600F
|
82600F
99118-62915 Fuse, Fuse Block[03.1969 - 07.1980] BJ40,FJ4#,55 15A,15A |
99118-62915 |
US $1.60 |
||
|
82600F
|
82600F
99118-62920 Fuse, Fuse BlockFUSE BLOCK [03.1969 - 07.1980] BJ40,FJ4#,55 20A,20A |
99118-62920 |
US $1.28 |
||
|
82611
|
82611
82611-30010
Cover, Fuse Block
[03.1969 - 09.1971] FJ40,55 |
82611-30010 |
— | ||
|
82611
|
82611
82611-60040
Cover, Fuse Block
[09.1971 - 09.1977] FJ4#,55 |
82611-60040 |
— | ||
|
82612
|
82612
82612-20020
Insulator, Fuse Block Terminal
[09.1971 - 01.1979] BJ40,FJ4#,55 |
82612-20020 |
— | ||
| replacement | |||||
|
82612
|
82612
82600-20903
Block Assy, Fuse
[09.1971 - 01.1979] BJ40,FJ4#,55 |
82600-20903 |
— | ||
|
82612A
|
82612A
82612-22020
Insulator, Fuse Block Terminal, B
[09.1971 - 01.1979] BJ40,FJ4#,55 |
82612-22020 |
— | ||
|
83320
|
83320
83320-35020 Gage Assy, Fuel SenderFUEL SENDER [03.1969 - 09.1972] FJ40 |
83320-35020 |
US $67.79 |
||
|
83320
|
83320
83320-60050 Gage Assy, Fuel SenderFUEL SENDER [09.1972 - 01.1979] BJ40,FJ4# |
83320-60050 |
from US $67.79 |
||
|
83361
|
83361
83361-20020
Gasket, Fuel Sender Gage
[03.1969 - 09.1972] FJ40 |
83361-20020 |
— | ||
|
83361
|
83361
83361-20030 Gasket, Fuel Tank Vent[09.1972 - 07.1980] BJ40,FJ4#,55 |
83361-20030 |
from US $5.12 |
||
|
83420
|
83420
83420-20010 Gage Assy, Water Temperature SenderWATER TEMPERATURE SENDER [03.1969 - 09.1972] FJ40 |
83420-20010 |
US $48.03 |
||
|
83420
|
83420
83420-20011 Gage Assy, Water Temperature Sender[09.1972 - 10.1979] BJ40,FJ4#,55 |
83420-20011 |
US $52.14 |
||
|
84210
|
84210
84210-10040
Switch Assy, Back-Up Lamp
[09.1971 - 09.1972] FJ40,55 3-SPEED,COLUMN SHIFT |
84210-10040 |
— | ||
|
84210
|
84210
84210-20012 Switch Assy, Back-Up LampBACK-UP LAMP [09.1973 - 07.1980] BJ40,FJ4#,55 4-SPEED,FLOOR SHIFT |
84210-20012 |
US $32.53 |
||
|
84210
|
84210
84210-30021
Switch Assy, Back-Up Lamp
[03.1969 - 09.1971] FJ40,55 3-SPEED,COLUMN SHIFT |
84210-30021 |
— | ||
|
84210
|
84210
84210-57012 Switch Assy, Back-Up LampBACK-UP LAMP [03.1969 - 01.1975] FJ40,55 3-SPEED,FLOOR SHIFT |
84210-57012 |
US $32.53 |
||
|
84340
|
84340
84340-30011 Switch Assy, Stop Lamp[03.1969 - 07.1970] FJ40,55 |
84340-30011 |
US $19.22 |
||
| replacement | |||||
|
84340
|
84340
84340-30013 Switch Assy, Stop LampSTOP LAMP [03.1969 - 07.1970] FJ40,55 |
84340-30013 |
from US $27.82 |
||
|
84340
|
84340
84340-30022 Switch Assy, Stop LampSTOP LAMP [07.1970 - 09.1975] FJ40,55 FOR TANDEM MASTER CYLINDER |
84340-30022 |
US $24.02 |
||
| replacement | |||||
|
84340
|
84340
84340-12012 Switch Assy, Stop LampSTOP LAMP [07.1970 - 09.1975] FJ40,55 FOR TANDEM MASTER CYLINDER |
84340-12012 |
US $38.91 |
||
|
84380
|
84380
84380-30010
Switch Assy, Brake Warning Test
[07.1970 - 09.1975] FJ40,55 |
84380-30010 |
— | ||
|
89445
|
89445
89445-22010
Detector, Maintenance Interval
[01.1975 - 02.1976] FJ40,55 |
89445-22010 |
— | ||
|
89448
|
89448
89448-60011
Bracket, Maintenance Interval Detector
[01.1975 - 02.1976] FJ40,55 |
89448-60011 |
— | ||
|
1215710010
|
1215710010
12157-10010 Gasket (For Drain Plug) |
12157-10010 |
from US $1.60 |
||
|
9046106303
|
9046106303
90461-06303 New Genuine Part |
90461-06303 |
US $2.33 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9318016012
|
9318016012
93180-16012
New Genuine Part
|
93180-16012 |
— | ||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.78 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
US $2.56 |
||
