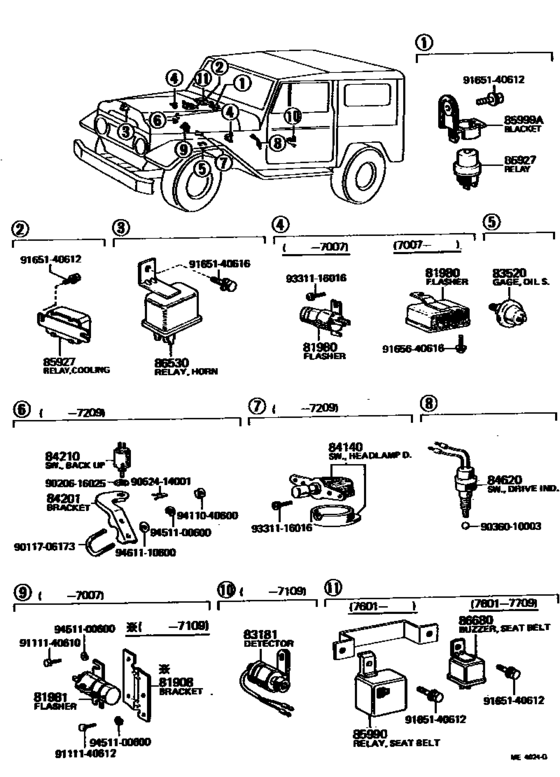

Switch & Relay & Computer ([03.1969 - 07.1980] (6903-8007)FJ4#) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- U.S.A.
- Frame
- FJ40
- body
- V
- ENGINE
- F
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Back Door
- VLS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81908
|
81908
81908-60010
Bracket Sub-Assy, Flasher
[03.1969 - 09.1971] FJ40 |
81908-60010 |
— | ||
|
81980
|
81980
81980-20040
Flasher Assy, Turn Signal
[03.1969 - 07.1970] FJ40 |
81980-20040 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-12H04 Flasher Assy, Turn Signal[03.1969 - 07.1970] FJ40 |
81980-12H04 |
US $64.94 |
||
|
81980
|
81980
81980-30040
Flasher Assy, Turn Signal
[07.1970 - 09.1977] FJ4# |
81980-30040 |
— | ||
| replacement | |||||
|
81980
|
81980
81980-12H04 Flasher Assy, Turn Signal[07.1970 - 09.1977] FJ4# |
81980-12H04 |
US $64.94 |
||
|
81981
|
81981
81980-20050
Flasher Assy, Hazard Warning Signal
[03.1969 - 07.1970] FJ40,55 |
81980-20050 |
— | ||
|
83181
|
83181
83180-60010
Detector Assy, Speed
[03.1969 - 09.1971] FJ40,55 |
83180-60010 |
— | ||
|
83520
|
83520
83520-55010
Gage Assy,oil Pressure Sender
[03.1969 - 01.1979] FJ4#,55 |
83520-55010 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-55011 Gage Assy,oil Pressure Sender[03.1969 - 01.1979] FJ4#,55 |
83520-55011 |
from US $63.08 |
||
|
84140
|
84140
84140-59620
Switch Assy, Headlamp Dimmer
[03.1969 - 09.1972] FJ40 |
84140-59620 |
— | ||
|
84201
|
84201
84095-60022
Bracket Sub-Assy, Back-Up Lamp Switch
[03.1969 - 09.1972] FJ40 |
84095-60022 |
— | ||
|
84210
|
84210
84210-10040
Switch Assy, Back-Up Lamp
[09.1971 - 09.1972] FJ40,55 3-SPEED,COLUMN SHIFT |
84210-10040 |
— | ||
|
84210
|
84210
84210-20012 Switch Assy, Back-Up LampBACK-UP LAMP [09.1973 - 07.1980] BJ40,FJ4#,55 4-SPEED,FLOOR SHIFT |
84210-20012 |
US $32.53 |
||
|
84210
|
84210
84210-30021
Switch Assy, Back-Up Lamp
[03.1969 - 09.1971] FJ40,55 3-SPEED,COLUMN SHIFT |
84210-30021 |
— | ||
|
84210
|
84210
84210-57012 Switch Assy, Back-Up LampBACK-UP LAMP [03.1969 - 01.1975] FJ40,55 3-SPEED,FLOOR SHIFT |
84210-57012 |
US $32.53 |
||
|
84620
|
84620
84610-30020
Switch Assy, Front Drive Indicator
[03.1969 - 09.1977] FJ4#,55 |
84610-30020 |
— | ||
|
86530
|
86530
86530-20031
Relay Assy, Horn
[03.1969 - 10.1969] FJ40,55 MARUKO |
86530-20031 |
— | ||
|
86530
|
86530
86530-35020
Relay Assy, Horn
[10.1969 - 07.1980] FJ4#,55 MARUKO |
86530-35020 |
— | ||
|
9011706173
|
9011706173
90117-06173
New Genuine Part
|
90117-06173 |
— | ||
|
9020616025
|
9020616025
90206-16025
Washer, Wave(For Rocker Arm)
|
90206-16025 |
— | ||
|
9036010003
|
9036010003
90360-10003 Ball(For Transmission Oil Pump Cover) |
90360-10003 |
US $1.60 |
||
|
9052414001
|
9052414001
90524-14001 New Genuine Part |
90524-14001 |
US $2.77 |
||
|
9111140610
|
9111140610
91111-40610 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91111-40610 |
US $1.31 |
||
| replacement | |||||
|
9111140610
|
9111140610
91611-G0612 Bolt |
91611-G0612 |
from US $0.82 |
||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331116016
|
9331116016
93311-16016 SCREW |
93311-16016 |
US $1.92 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
