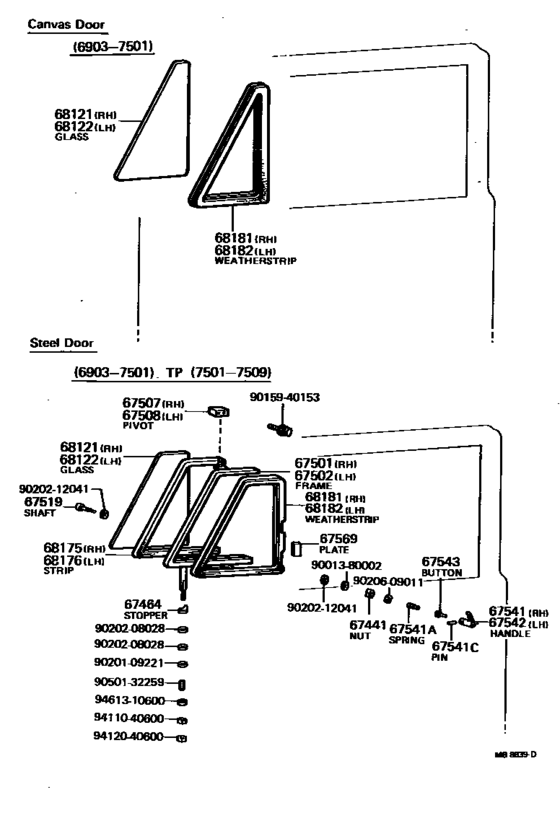

Front Door Ventilator Window ([03.1969 - 01.1975] (6903-7501)BJ4#,FJ4# ; (7501-7509)TPC) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- FJ43
- body
- TP
- ENGINE
- F
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser VAN
- Back Door
- TPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67441
|
67441
90013-70001 Nut, Lock HandleLOCK HANDLE [03.1969 - 08.1969] FJ4# |
90013-70001 |
US $2.48 |
||
|
67441
|
67441
90170-12166
Nut, Lock Handle
[08.1969 - 01.1975] BJ4#,FJ4# |
90170-12166 |
— | ||
|
67464
|
67464
67559-60010
Stopper, Front Door Ventilating Window Opening
[03.1969 - 01.1975] BJ4#,FJ4# |
67559-60010 |
— | ||
|
67501
|
67501
67501-60011
Frame Sub-Assy, Vent Window Glass, Rh
[03.1969 - 05.1972] FJ4# |
67501-60011 |
— | ||
| replacements | |||||
|
67501
|
67501
67501-90300
Frame Sub-Assy, Vent Window Glass, Rh
[03.1969 - 05.1972] FJ4# |
67501-90300 |
— | ||
|
67501
|
67501
68175-90300 Weatherstrip, Vent Window FrameVENT WINDOW FRAME WEATHERSTRIP [03.1969 - 05.1972] FJ4# |
68175-90300 |
US $80.72 |
||
|
67501
|
67501
67501-90300
Frame Sub-Assy, Vent Window Glass, Rh
[05.1972 - 01.1975] BJ4#,FJ4# |
67501-90300 |
— | ||
|
67502
|
67502
67502-60011
Frame Sub-Assy, Vent Window Glass, Lh
[03.1969 - 05.1972] FJ4# |
67502-60011 |
— | ||
| replacements | |||||
|
67502
|
67502
67502-90300
Frame Sub-Assy, Vent Window Glass, Lh
[03.1969 - 05.1972] FJ4# |
67502-90300 |
— | ||
|
67502
|
67502
68175-90300 Weatherstrip, Vent Window FrameVENT WINDOW FRAME WEATHERSTRIP [03.1969 - 05.1972] FJ4# |
68175-90300 |
US $80.72 |
||
|
67502
|
67502
67502-90300
Frame Sub-Assy, Vent Window Glass, Lh
[05.1972 - 01.1975] BJ4#,FJ4# |
67502-90300 |
— | ||
|
67507
|
67507
67541-60022
Pivot Sub-Assy, Vent Window, Upper Rh
[03.1969 - 01.1975] BJ4#,FJ4# |
67541-60022 |
— | ||
|
67508
|
67508
67541-60022
Pivot Sub-Assy, Vent Window, Upper Rh
[03.1969 - 01.1975] BJ4#,FJ4# |
67541-60022 |
— | ||
|
67519
|
67519
67519-60010
Shaft, Ventilating Window Lock Handle
[03.1969 - 08.1969] FJ4# |
67519-60010 |
— | ||
| replacements | |||||
|
67519
|
67519
90170-12015
Nut, Lock Handle
[03.1969 - 08.1969] FJ4# |
90170-12015 |
— | ||
|
67519
|
67519
67519-60011
Shaft, Ventilating Window Lock Handle
[03.1969 - 08.1969] FJ4# |
67519-60011 |
— | ||
|
67519
|
67519
67519-60011
Shaft, Ventilating Window Lock Handle
[08.1969 - 01.1975] BJ4#,FJ4# |
67519-60011 |
— | ||
|
67541
|
67541
67561-95400
Handle, Ventilating Window Lock, Rh
[03.1969 - 01.1975] BJ4#,FJ4# |
67561-95400 |
— | ||
|
67541A
|
67541A
90501-05014
Spring, Compression (For C-1 Orifice Control Valve)
[03.1969 - 09.1973] FJ4#,55 |
90501-05014 |
— | ||
|
67541C
|
67541C
67563-95400
Pin, Ventilating Window Lock Handle
[03.1969 - 01.1975] BJ4#,FJ4# |
67563-95400 |
— | ||
|
67542
|
67542
67562-95400
Handle, Ventilating Window Lock, Lh
[03.1969 - 01.1975] BJ4#,FJ4# |
67562-95400 |
— | ||
|
67543
|
67543
67564-95400
Button, Ventilating Window Lock Handle Push
[03.1969 - 01.1975] BJ4#,FJ4# |
67564-95400 |
— | ||
|
67569
|
67569
67569-60020
Plate,front Door Ventilating Window Handle
[03.1969 - 01.1975] BJ4#,FJ4# |
67569-60020 |
— | ||
|
68121
|
68121
68121-60012
Glass, Vent Window, Rh
[03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
68121-60012 |
— | ||
|
68121
|
68121
68121-90300
Glass, Vent Window, Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
68121-90300 |
— | ||
|
68122
|
68122
68121-60012
Glass, Vent Window, Rh
[03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
68121-60012 |
— | ||
|
68122
|
68122
68121-90300
Glass, Vent Window, Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
68121-90300 |
— | ||
|
68175
|
68175
68175-60020
Weatherstrip, Vent Window Frame, Rh
[03.1969 - 05.1972] FJ4# |
68175-60020 |
— | ||
|
68175
|
68175
68175-90300 Weatherstrip, Vent Window FrameVENT WINDOW FRAME WEATHERSTRIP [05.1972 - 01.1975] BJ4#,FJ4# |
68175-90300 |
US $80.72 |
||
|
68176
|
68176
68175-90300 Weatherstrip, Vent Window FrameVENT WINDOW FRAME WEATHERSTRIP [05.1972 - 01.1975] BJ4#,FJ4# |
68175-90300 |
US $80.72 |
||
|
68176
|
68176
68176-60020
Weatherstrip, Vent Window Frame, Lh
[03.1969 - 05.1972] FJ4# |
68176-60020 |
— | ||
|
68181
|
68181
68175-60010
Weatherstrip, Vent Window, No.1 Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
68175-60010 |
— | ||
|
68181
|
68181
68181-60010
Weatherstrip, Vent Window, No.1 Rh
[03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
68181-60010 |
— | ||
|
68182
|
68182
68176-60010
Weatherstrip, Vent Window, No.1 Lh
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
68176-60010 |
— | ||
|
68182
|
68182
68182-60010
Weatherstrip, Vent Window, No.1 Lh
[03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
68182-60010 |
— | ||
|
9001380002
|
9001380002
90013-80002
New Genuine Part
|
90013-80002 |
— | ||
|
9015940153
|
9015940153
90159-40153
New Genuine Part
|
90159-40153 |
— | ||
|
9020109221
|
9020109221
90201-09221
New Genuine Part
|
90201-09221 |
— | ||
|
9020208028
|
9020208028
90202-08028 New Genuine Part |
90202-08028 |
US $0.96 |
||
|
9020212041
|
9020212041
90202-12041
WASHER
|
90202-12041 |
— | ||
|
9020609011
|
9020609011
90206-09011
New Genuine Part
|
90206-09011 |
— | ||
|
9050132259
|
9050132259
90501-32259
Spring, Compression(For Vent Window Glass Frame)
|
90501-32259 |
— | ||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
||
