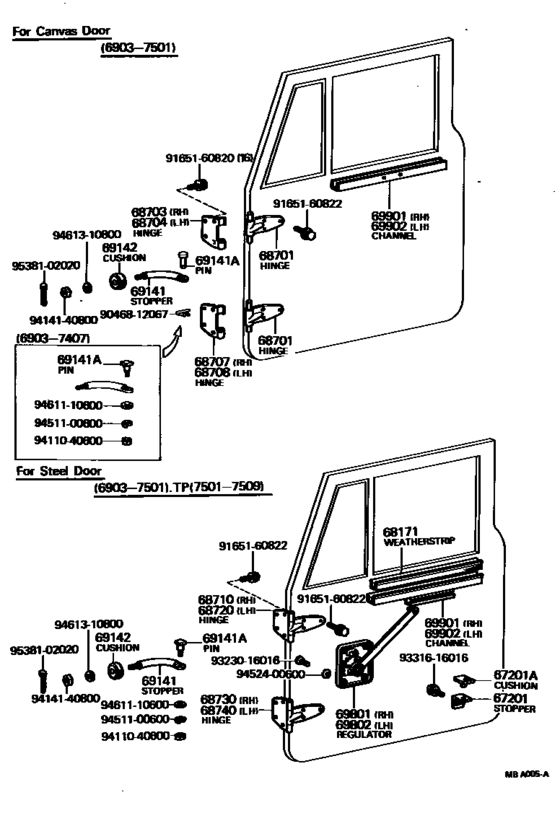

Front Door Window Regulator & Hinge ([03.1969 - 01.1975] (6903-7501)BJ4#,FJ4# ; (7501-7509)TPC) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- FJ43
- body
- TP
- ENGINE
- F
- Model
- LAND CRUISER 40
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser VAN
- Back Door
- TPC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67201
|
67201
67404-90332
Stopper Assy, Door Glass(For Front Door)
[03.1969 - 01.1975] BJ4#,FJ4# |
67404-90332 |
— | ||
|
67201A
|
67201A
68191-30010
Cushion, Door Glass Down Stopper(For Front Door)
[03.1969 - 01.1975] BJ4#,FJ4# |
68191-30010 |
— | ||
|
68171
|
68171
68211-60011
Weatherstrip, Front Door Glass Channel
[03.1969 - 01.1975] BJ4#,FJ4# |
68211-60011 |
— | ||
|
68701
|
68701
68701-60011
Hinge Sub-Assy, Canvas Door Male
[03.1969 - 01.1975] BJ4#,FJ4#..TP |
68701-60011 |
— | ||
|
68703
|
68703
68713-60010
Hinge Sub-Assy, Canvas Door Female, Upper Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP |
68713-60010 |
— | ||
|
68704
|
68704
68714-60010
Hinge Sub-Assy, Canvas Door Female, Upper Lh
[03.1969 - 01.1975] BJ4#,FJ4#..TP |
68714-60010 |
— | ||
|
68707
|
68707
68713-60010
Hinge Sub-Assy, Canvas Door Female, Upper Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP |
68713-60010 |
— | ||
|
68708
|
68708
68714-60010
Hinge Sub-Assy, Canvas Door Female, Upper Lh
[03.1969 - 01.1975] BJ4#,FJ4#..TP |
68714-60010 |
— | ||
|
68710
|
68710
68710-60012 Hinge Assy, Front Door, Upper RhFRONT DOOR, UPPER RH [03.1969 - 07.1980] BJ4#,FJ4# |
68710-60012 |
from US $61.07 |
||
|
68720
|
68720
68720-60012 Hinge Assy, Front Door, Upper LhFRONT DOOR, UPPER LH [03.1969 - 07.1980] BJ4#,FJ4# |
68720-60012 |
from US $61.58 |
||
|
68730
|
68730
68710-60012 Hinge Assy, Front Door, Upper RhFRONT DOOR, UPPER RH [03.1969 - 07.1980] BJ4#,FJ4# |
68710-60012 |
from US $61.07 |
||
|
68740
|
68740
68720-60012 Hinge Assy, Front Door, Upper LhFRONT DOOR, UPPER LH [03.1969 - 07.1980] BJ4#,FJ4# |
68720-60012 |
from US $61.58 |
||
|
69141
|
69141
68957-60010
Stopper, Front Door Open
[03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
68957-60010 |
— | ||
|
69141
|
69141
69141-60010
Stopper, Front Door Open
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
69141-60010 |
— | ||
|
69141A
|
69141A
68898-60010
Pin, Front Door Open Stopper
[03.1969 - 07.1974] BJ4#,FJ4# |
68898-60010 |
— | ||
|
69141A
|
69141A
90240-08146
Pin, W/hole(For Gear Selecting No.2 Rod)
[07.1974 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
90240-08146 |
— | ||
| replacement | |||||
|
69141A
|
69141A
90240-08028 Pin, W/hole (For Column Shift Gear Selecting Rod)[07.1974 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
90240-08028 |
US $2.56 |
||
|
69142
|
69142
69101-90300 Cushion, Door Open StopperDOOR OPEN STOPPER [03.1969 - 01.1975] BJ4#,FJ4# |
69101-90300 |
US $5.59 |
||
|
69801
|
69801
69801-90300
Regulator Sub-Assy, Front Door Window, Rh
[06.1973 - 01.1975] BJ4#,FJ4# |
69801-90300 |
— | ||
|
69801
|
69801
69810-90300 Regulator Sub-Assy, Front Door Window, Rh[03.1969 - 06.1973] FJ4# |
69810-90300 |
US $112.11 |
||
| replacements | |||||
|
69801
|
69801
69801-90300
Regulator Sub-Assy, Front Door Window, Rh
[03.1969 - 06.1973] FJ4# |
69801-90300 |
— | ||
|
69801
|
69801
69901-90300
Channel Sub-Assy, Front Door Glass, Rh
[03.1969 - 06.1973] FJ4# |
69901-90300 |
— | ||
|
69802
|
69802
69802-90300
Regulator Sub-Assy, Front Door Window, Lh
[06.1973 - 01.1975] BJ4#,FJ4# |
69802-90300 |
— | ||
|
69802
|
69802
69820-90300 Regulator Sub-Assy, Front Door Window, Lh[03.1969 - 06.1973] FJ4# |
69820-90300 |
US $112.11 |
||
| replacements | |||||
|
69802
|
69802
69802-90300
Regulator Sub-Assy, Front Door Window, Lh
[03.1969 - 06.1973] FJ4# |
69802-90300 |
— | ||
|
69802
|
69802
69902-90300
Channel Sub-Assy, Front Door Glass, Lh
[03.1969 - 06.1973] FJ4# |
69902-90300 |
— | ||
|
69901
|
69901
68211-60020
Channel Sub-Assy, Front Door Glass, Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
68211-60020 |
— | ||
|
69901
|
69901
69901-90300
Channel Sub-Assy, Front Door Glass, Rh
[03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
69901-90300 |
— | ||
|
69902
|
69902
68211-60020
Channel Sub-Assy, Front Door Glass, Rh
[03.1969 - 01.1975] BJ4#,FJ4#..TP FOR CANVAS DOOR |
68211-60020 |
— | ||
|
69902
|
69902
69902-90300
Channel Sub-Assy, Front Door Glass, Lh
[03.1969 - 01.1975] BJ4#,FJ4# FOR STEEL DOOR |
69902-90300 |
— | ||
|
9046812067
|
9046812067
90468-12067 New Genuine Part |
90468-12067 |
US $1.89 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9165160822
|
9165160822
91651-60822
New Genuine Part
|
91651-60822 |
— | ||
| replacement | |||||
|
9165160822
|
9165160822
91651-B0822 BOLT WWASHER |
91651-B0822 |
US $1.76 |
||
|
9323016016
|
9323016016
93230-16016
New Genuine Part
|
93230-16016 |
— | ||
|
9331616016
|
9331616016
93316-16016
New Genuine Part
|
93316-16016 |
— | ||
| replacement | |||||
|
9331616016
|
9331616016
90159-60286 SCREW |
90159-60286 |
US $2.08 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9414140800
|
9414140800
94141-40800
New Genuine Part
|
94141-40800 |
— | ||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9452400600
|
9452400600
94524-00600 New Genuine Part |
94524-00600 |
US $2.72 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9538102020
|
9538102020
95381-02020 PIN |
95381-02020 |
US $0.96 |
||
