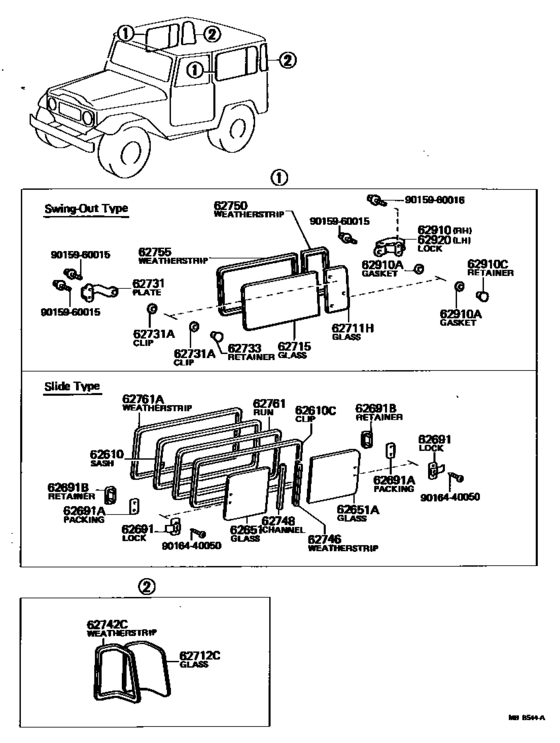

Side Window ([08.1980 - ] (8008- )BJ40,42,FJ40,45..V) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1985
- Sales region
- Europe
- Frame
- FJ45
- body
- V
- ENGINE
- 2F
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 08.1980
- To
- 10.1985
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62610
|
62610
62705-90300
Sash Assy, Side Window Outer, No.1 (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC RH |
62705-90300 |
— | ||
|
62610
|
62610
62706-90300
Sash Assy, Side Window Outer, No.1 (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC LH |
62706-90300 |
— | ||
|
62610C
|
62610C
62775-90300
Clip, Side Window Outer Sash, No.1 (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62775-90300 |
— | ||
|
62651
|
62651
62721-90300
Glass, Side Window, No.1, Front (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC *TEM,T=4.0 |
62721-90300 |
— | ||
| replacement | |||||
|
62651
|
62651
62721-90301
Glass, Side Window, No.1, Front (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC *TEM,T=4.0 |
62721-90301 |
— | ||
|
62651
|
62651
62721-90301
Glass, Side Window, No.1, Front (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC..(EUR,GEN) *TT,T=4.0 |
62721-90301 |
— | ||
|
62651A
|
62651A
62722-90300
Glass, Side Window, No.1, Rear (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC *TEM,T=4.0 |
62722-90300 |
— | ||
| replacement | |||||
|
62651A
|
62651A
62722-90301
Glass, Side Window, No.1, Rear (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC *TEM,T=4.0 |
62722-90301 |
— | ||
|
62651A
|
62651A
62722-90301
Glass, Side Window, No.1, Rear (For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC..(EUR,GEN) *TT,T=4.0 |
62722-90301 |
— | ||
|
62691
|
62691
62791-95A01
Lock, Side Window, No.1 Glass (For Slide Type)
[08.1980 - 01.1981] BJ45,FJ45,HJ47..VKC LH,FR;RH,RR |
62791-95A01 |
— | ||
| replacement | |||||
|
62691
|
62691
62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)[08.1980 - 01.1981] BJ45,FJ45,HJ47..VKC LH,FR;RH,RR |
62910-95702 |
from US $10.82 |
||
|
62691
|
62691
62791-95A02
Lock, Side Window, No.1 Glass (For Slide Type)
[01.1981 - 12.1981] BJ45,FJ45,HJ47..VKC LH,FR;RH,RR |
62791-95A02 |
— | ||
| replacement | |||||
|
62691
|
62691
62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)[01.1981 - 12.1981] BJ45,FJ45,HJ47..VKC LH,FR;RH,RR |
62910-95702 |
from US $10.82 |
||
|
62691
|
62691
62798-95A00
Lock, Side Window, No.1 Glass (For Slide Type)
[08.1980 - 01.1981] BJ45,FJ45,HJ47..VKC LH,RR;RH,FR |
62798-95A00 |
— | ||
| replacement | |||||
|
62691
|
62691
62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)[08.1980 - 01.1981] BJ45,FJ45,HJ47..VKC LH,RR;RH,FR |
62910-95702 |
from US $10.82 |
||
|
62691
|
62691
62798-95A01
Lock, Side Window, No.1 Glass (For Slide Type)
[01.1981 - 12.1981] BJ45,FJ45,HJ47..VKC LH,RR;RH,FR |
62798-95A01 |
— | ||
| replacement | |||||
|
62691
|
62691
62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)[01.1981 - 12.1981] BJ45,FJ45,HJ47..VKC LH,RR;RH,FR |
62910-95702 |
from US $10.82 |
||
|
62691
|
62691
62910-95702 Lock, Side Window, No.1 Glass (For Slide Type)[12.1981 - 10.1985] BJ45,FJ45,HJ47..VKC |
62910-95702 |
from US $10.82 |
||
|
62691A
|
62691A
62792-95A00 Packing, Side Rear Window, Rh[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62792-95A00 |
from US $1.64 |
||
|
62691B
|
62691B
62793-95A00
Retainer, Side Window Lock, No.1
[08.1980 - 01.1981] BJ45,FJ45,HJ47..VKC |
62793-95A00 |
— | ||
| replacement | |||||
|
62691B
|
62691B
62793-95704 Retainer, Side Window Lock, No.1[08.1980 - 01.1981] BJ45,FJ45,HJ47..VKC |
62793-95704 |
from US $6.81 |
||
|
62691B
|
62691B
62793-95A01
Retainer, Side Window Lock, No.1
[01.1981 - 10.1985] BJ45,FJ45,HJ47..VKC |
62793-95A01 |
— | ||
| replacement | |||||
|
62691B
|
62691B
62793-95704 Retainer, Side Window Lock, No.1[01.1981 - 10.1985] BJ45,FJ45,HJ47..VKC |
62793-95704 |
from US $6.81 |
||
|
62711H
|
62711H
62714-90300
Glass, Side Window, No.1(For Hinge Type)
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V *TEM,T=4.0 |
62714-90300 |
— | ||
| replacement | |||||
|
62711H
|
62711H
62714-90301
Glass, Side Window, No.1(For Hinge Type)
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V *TEM,T=4.0 |
62714-90301 |
— | ||
|
62711H
|
62711H
62714-90301
Glass, Side Window, No.1(For Hinge Type)
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN) *TT,T=4.0 |
62714-90301 |
— | ||
|
62712C
|
62712C
62712-90300
Glass, Side Window Corner
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V RH,*TEM,T=5.0 |
62712-90300 |
— | ||
| replacement | |||||
|
62712C
|
62712C
62712-90301
Glass, Side Window Corner
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V RH,*TEM,T=5.0 |
62712-90301 |
— | ||
|
62712C
|
62712C
62712-90301
Glass, Side Window Corner
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN) RH,*TT,T=5.0 |
62712-90301 |
— | ||
|
62712C
|
62712C
62713-90300
Glass, Side Window Corner
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V LH,*TEM,T=5.0 |
62713-90300 |
— | ||
| replacement | |||||
|
62712C
|
62712C
62713-90301
Glass, Side Window Corner
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V LH,*TEM,T=5.0 |
62713-90301 |
— | ||
|
62712C
|
62712C
62713-90301
Glass, Side Window Corner
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN) LH,*TT,T=5.0 |
62713-90301 |
— | ||
|
62715
|
62715
62711-90303
Glass, Quarter Window, Rh
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V *TEM,T=4.0 |
62711-90303 |
— | ||
| replacement | |||||
|
62715
|
62715
62711-90304
Glass, Quarter Window, Rh
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V *TEM,T=4.0 |
62711-90304 |
— | ||
|
62715
|
62715
62711-90304
Glass, Quarter Window, Rh
[08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V..(EUR,GEN) *TT,T=4.0 |
62711-90304 |
— | ||
|
62731
|
62731
62704-90300
Hinge Assy, Quarter Window, Rear
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62704-90300 |
— | ||
|
62731A
|
62731A
62734-12010 Clip, Quarter Window Hinge Plate[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62734-12010 |
from US $2.69 |
||
|
62733
|
62733
62733-90300 Retainer, Quarter Or Side Window HingeQUARTER OR SIDE WINDOW HINGE [08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62733-90300 |
US $10.88 |
||
|
62742C
|
62742C
62742-90300 Weatherstrip, Side Window CornerBACK WINDOW CORNER [08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V |
62742-90300 |
US $73.72 |
||
|
62746
|
62746
62773-90300
Weatherstrip, Side Window Glass Channel, No.1
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62773-90300 |
— | ||
|
62748
|
62748
62774-90300
Channel, Side Window Glass
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62774-90300 |
— | ||
|
62750
|
62750
62744-90300
Weatherstrip, Quarter Window, Rear Rh
[07.1981 - 06.1982] BJ40,42,45,FJ40,45,HJ47..V..(3F,4F) RH |
62744-90300 |
— | ||
| replacement | |||||
|
62750
|
62750
62797-90800 Weatherstrip, Side Window, No.1(For Hinge Type)SIDE WINDOW, NO.1(FOR HINGE TYPE) [07.1981 - 06.1982] BJ40,42,45,FJ40,45,HJ47..V..(3F,4F) RH |
62797-90800 |
US $79.92 |
||
|
62750
|
62750
62797-90800 Weatherstrip, Side Window, No.1(For Hinge Type)SIDE WINDOW, NO.1(FOR HINGE TYPE) [06.1982 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V RH |
62797-90800 |
US $79.92 |
||
|
62750
|
62750
62798-90800
Weatherstrip, Side Window, No.1(For Hinge Type)
[07.1981 - 06.1982] BJ40,42,45,FJ40,45,HJ47..V..(3F,4F) LH |
62798-90800 |
— | ||
| replacement | |||||
|
62750
|
62750
62798-90801
Weatherstrip, Side Window, No.1(For Hinge Type)
[07.1981 - 06.1982] BJ40,42,45,FJ40,45,HJ47..V..(3F,4F) LH |
62798-90801 |
— | ||
|
62750
|
62750
62798-90801
Weatherstrip, Side Window, No.1(For Hinge Type)
[06.1982 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V LH |
62798-90801 |
— | ||
|
62755
|
62755
62741-90303 Weatherstrip, Quarter Window, RhQUARTER WINDOW, RH [08.1980 - 10.1985] BJ40,42,45,FJ40,45,HJ47..V |
62741-90303 |
US $78.44 |
||
|
62761
|
62761
62753-90300
Run, Side Window, No.1(For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC RH |
62753-90300 |
— | ||
|
62761
|
62761
62754-90300
Run, Side Window, No.1(For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC LH |
62754-90300 |
— | ||
|
62761A
|
62761A
62761-90300
Weatherstrip, Side Window, No.1(For Slide Type)
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62761-90300 |
— | ||
|
62910
|
62910
62910-90300
Lock Assy, Quarter Or Side Window, Rh
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62910-90300 |
— | ||
|
62910A
|
62910A
62734-12010 Clip, Quarter Window Hinge Plate[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62734-12010 |
from US $2.69 |
||
|
62910C
|
62910C
62733-90300 Retainer, Quarter Or Side Window HingeQUARTER OR SIDE WINDOW HINGE [08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62733-90300 |
US $10.88 |
||
|
62920
|
62920
62910-90300
Lock Assy, Quarter Or Side Window, Rh
[08.1980 - 10.1985] BJ45,FJ45,HJ47..VKC |
62910-90300 |
— | ||
|
9015960015
|
9015960015
90159-60015 New Genuine Part |
90159-60015 |
US $3.68 |
||
|
9015960016
|
9015960016
90159-60016 New Genuine Part |
90159-60016 |
US $2.91 |
||
| replacement | |||||
|
9015960016
|
9015960016
90159-60270 New Genuine Part |
90159-60270 |
US $1.05 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
US $1.28 |
||
