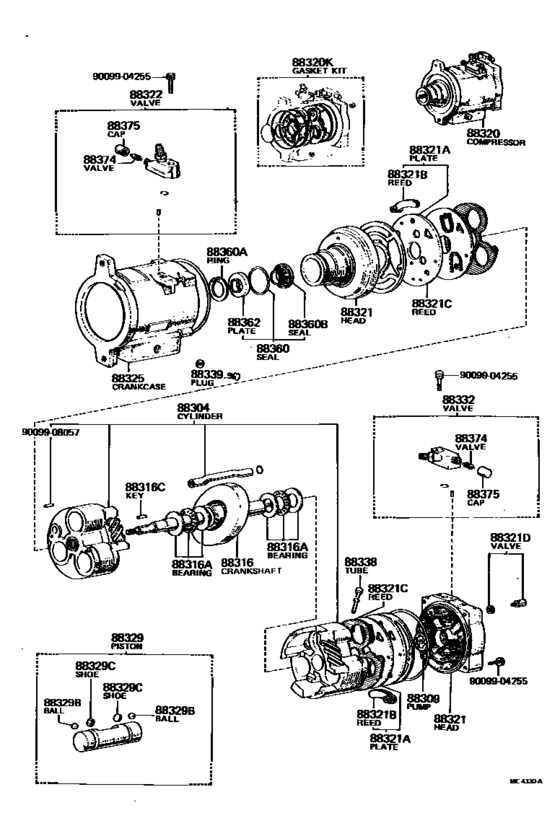

Heating & Air Conditioning - Compressor ([01.1975 - 01.1979] (7501-7901)FJ55..LHD) Diagram Toyota LAND CRUISER
- Year
- 1975 - 1980
- Sales region
- General
- Frame
- FJ55
- ENGINE
- 2F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 01.1975
- To
- 07.1980
- Gear Shift Type
- 3F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VTG
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88304
|
88304
88304-14010
Cylinder Sub-Assy, Cooler Compressor
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; FJ40,45..RHD..(PIC,V) |
88304-14010 |
— | ||
|
88304
|
88304
88304-30251
Cylinder Sub-Assy, Cooler Compressor
[01.1975 - 01.1979] FJ55..LHD..GEN |
88304-30251 |
— | ||
|
88309
|
88309
88308-30251
Pump Sub-Assy, Oil
[01.1975 - 01.1979] FJ55..LHD..GEN |
88308-30251 |
— | ||
|
88316
|
88316
88316-20070
Crankshaft, Cooler Compressor
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88316-20070 |
— | ||
|
88316
|
88316
88316-30251
Crankshaft, Cooler Compressor
[01.1975 - 01.1979] FJ55..LHD..GEN |
88316-30251 |
— | ||
|
88316
|
88316
88316-60010
Crankshaft, Cooler Compressor
[10.1970 - 01.1975] FJ55 |
88316-60010 |
— | ||
|
88316A
|
88316A
88366-20050
Bearing, Compressor Crankshaft, Front
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88366-20050 |
— | ||
|
88316A
|
88316A
88366-30251
Bearing, Compressor Crankshaft, Front
[01.1975 - 01.1979] FJ55..LHD..GEN |
88366-30251 |
— | ||
|
88316A
|
88316A
88366-60010
Bearing, Compressor Crankshaft, Front
[10.1970 - 01.1975] FJ55 |
88366-60010 |
— | ||
|
88316C
|
88316C
90097-00465
Key(For Alternator Pulley)
[10.1970 - 01.1975] FJ55 |
90097-00465 |
— | ||
|
88316C
|
88316C
90099-13011
Key, Compressor Crankshaft
[01.1975 - 01.1979] FJ55..LHD..GEN |
90099-13011 |
— | ||
|
88320
|
88320
88320-20080
Compressor Assy, Cooler
[06.1971 - 01.1975] FJ55 |
88320-20080 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-20230
Compressor Assy, Cooler
[06.1971 - 01.1975] FJ55 |
88320-20230 |
— | ||
|
88320
|
88320
88320-60020
Compressor Assy, Cooler
[01.1975 - 01.1979] FJ55..LHD..GEN |
88320-60020 |
— | ||
|
88320
|
88320
88320-60050
Compressor Assy, Cooler
[01.1979 - 07.1980] FJ55..ARL,GEN; FJ40,45..RHD..(PIC,V) |
88320-60050 |
— | ||
|
88320K
|
88320K
04881-20040
Gasket Kit, Cooler Compressor Overhaul
[01.1979 - 06.1979] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
04881-20040 |
— | ||
|
88320K
|
88320K
04881-30011
Gasket Kit, Cooler Compressor Overhaul
[01.1975 - 01.1979] FJ55..LHD..GEN |
04881-30011 |
— | ||
| replacement | |||||
|
88320K
|
88320K
04881-30012
Gasket Kit, Cooler Compressor Overhaul
[01.1975 - 01.1979] FJ55..LHD..GEN |
04881-30012 |
— | ||
|
88320K
|
88320K
04881-30030
Gasket Kit, Cooler Compressor Overhaul
[06.1979 - 07.1980] FJ4#..LHD..GEN OIL DRAIN TYPE; FJ55..ARL,GEN OIL DRAIN TYPE; BJ40,FJ40,45..RHD..(PIC,V) OIL DRAIN TYPE |
04881-30030 |
— | ||
|
88320K
|
88320K
04881-60010
Gasket Kit, Cooler Compressor Overhaul
[10.1970 - 01.1975] FJ55 |
04881-60010 |
— | ||
|
88321
|
88321
88321-20060
Head, Cooler Compressor Cylinder
[01.1979 - 06.1979] FJ4#..LHD..GEN FOR FRONT; FJ55..ARL,GEN FOR FRONT; BJ40,FJ40,45..RHD..(PIC,V) FOR FRONT |
88321-20060 |
— | ||
|
88321
|
88321
88321-20061
Head, Cooler Compressor Cylinder
[06.1979 - 07.1980] FJ4#..LHD..GEN FOR FRONT OIL DRAIN TYPE; FJ55..ARL,GEN FOR FRONT OIL DRAIN TYPE; BJ40,FJ40,45..RHD..(PIC,V) FOR FRONT OIL DRAIN TYPE |
88321-20061 |
— | ||
|
88321
|
88321
88321-30251
Head, Cooler Compressor Cylinder
[01.1975 - 01.1979] FJ55..LHD..GEN FOR FRONT |
88321-30251 |
— | ||
|
88321
|
88321
88321-60010
Head, Cooler Compressor Cylinder
[10.1970 - 01.1975] FJ55 |
88321-60010 |
— | ||
|
88321
|
88321
88322-20040
Head, Cooler Compressor Cylinder
[01.1979 - 07.1980] FJ4#..LHD..GEN FOR REAR; FJ55..ARL,GEN FOR REAR; BJ40,FJ40,45..RHD..(PIC,V) FOR REAR |
88322-20040 |
— | ||
|
88321
|
88321
88322-30251
Head, Cooler Compressor Cylinder
[01.1975 - 01.1979] FJ55..LHD..GEN FOR REAR |
88322-30251 |
— | ||
|
88321A
|
88321A
88305-20070
Plate Sub-Assy, Valve
[01.1979 - 07.1980] FJ4#..LHD..GEN FOR FRONT; FJ55..ARL,GEN FOR FRONT; BJ40,FJ40,45..RHD..(PIC,V) FOR FRONT |
88305-20070 |
— | ||
|
88321A
|
88321A
88305-30251
Plate Sub-Assy, Valve
[01.1975 - 01.1979] FJ55..LHD..GEN FOR FRONT |
88305-30251 |
— | ||
|
88321A
|
88321A
88306-20040
Plate Sub-Assy, Valve
[01.1979 - 07.1980] FJ4#..LHD..GEN FOR REAR; FJ55..ARL,GEN FOR REAR; BJ40,FJ40,45..RHD..(PIC,V) FOR REAR |
88306-20040 |
— | ||
|
88321A
|
88321A
88306-30251
Plate Sub-Assy, Valve
[01.1975 - 01.1979] FJ55..LHD..GEN FOR REAR |
88306-30251 |
— | ||
|
88321B
|
88321B
88307-20050
Reed Sub-Assy, Valve
[01.1979 - 07.1980] FJ4#..LHD..GEN FOR SMALL; FJ55..ARL,GEN FOR SMALL; BJ40,FJ40,45..RHD..(PIC,V) FOR SMALL |
88307-20050 |
— | ||
|
88321B
|
88321B
88307-20060
Reed Sub-Assy, Valve
[01.1979 - 07.1980] FJ4#..LHD..GEN FOR LARGE; FJ55..ARL,GEN FOR LARGE; BJ40,FJ40,45..RHD..(PIC,V) FOR LARGE |
88307-20060 |
— | ||
|
88321B
|
88321B
88307-30251
Reed Sub-Assy, Valve
[01.1975 - 01.1979] FJ55..LHD..GEN |
88307-30251 |
— | ||
|
88321C
|
88321C
88343-20040
Reed, Suction Valve
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88343-20040 |
— | ||
|
88321C
|
88321C
88343-30251
Reed, Suction Valve
[01.1975 - 01.1979] FJ55..LHD..GEN |
88343-30251 |
— | ||
|
88321D
|
88321D
88379-12020
Valve, Pressure Relief
[01.1975 - 01.1979] FJ55..LHD..GEN |
88379-12020 |
— | ||
| replacement | |||||
|
88321D
|
88321D
88379-12021
Valve, Pressure Relief
[01.1975 - 01.1979] FJ55..LHD..GEN |
88379-12021 |
— | ||
|
88322
|
88322
88371-60010
Valve, Cooler Compressor Suction Service
[10.1970 - 01.1975] FJ55 |
88371-60010 |
— | ||
|
88322
|
88322
88371-60020
Valve, Cooler Compressor Suction Service
[01.1975 - 01.1979] FJ55..LHD..GEN |
88371-60020 |
— | ||
|
88322
|
88322
88371-60040
Valve, Cooler Compressor Suction Service
[01.1979 - 07.1980] FJ55..ARL,GEN; FJ40,45..RHD..(PIC,V) |
88371-60040 |
— | ||
|
88325
|
88325
88325-30251
Crankcase, Cooler Compressor
[01.1975 - 01.1979] FJ55..LHD..GEN |
88325-30251 |
— | ||
|
88325
|
88325
88325-60010
Crankcase, Cooler Compressor
[10.1970 - 01.1975] FJ55 |
88325-60010 |
— | ||
|
88329
|
88329
88301-20050
Piston Sub-Assy, Cooler Compressor
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88301-20050 |
— | ||
|
88329
|
88329
88301-30251
Piston Sub-Assy, Cooler Compressor
[01.1975 - 01.1979] FJ55..LHD..GEN |
88301-30251 |
— | ||
|
88329
|
88329
88301-60010
Piston Sub-Assy, Cooler Compressor
[10.1970 - 01.1975] FJ55 |
88301-60010 |
— | ||
|
88329B
|
88329B
88312-30250
Ball, Piston
[01.1975 - 01.1979] FJ55..LHD..GEN |
88312-30250 |
— | ||
|
88329C
|
88329C
88313-20070
Shoe, Piston
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88313-20070 |
— | ||
|
88329C
|
88329C
88313-30251
Shoe, Piston
[01.1975 - 01.1979] FJ55..LHD..GEN |
88313-30251 |
— | ||
|
88332
|
88332
88372-30280
Valve, Cooler Compressor Discharge Service
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88372-30280 |
— | ||
|
88332
|
88332
88372-60010
Valve, Cooler Compressor Discharge Service
[10.1970 - 01.1975] FJ55 |
88372-60010 |
— | ||
|
88332
|
88332
88372-60020
Valve, Cooler Compressor Discharge Service
[01.1975 - 01.1979] FJ55..LHD..GEN |
88372-60020 |
— | ||
|
88338
|
88338
88338-30250
Tube, Oil
[01.1975 - 01.1979] FJ55..LHD..GEN |
88338-30250 |
— | ||
|
88339
|
88339
88339-30250
Plug, Oil Filler
[01.1975 - 01.1979] FJ55..LHD..GEN |
88339-30250 |
— | ||
|
88360
|
88360
88360-30251
Seal Assy, Cooler Compressor Shaft
[01.1975 - 01.1979] FJ55..LHD..GEN |
88360-30251 |
— | ||
|
88360
|
88360
88360-30270
Seal Assy, Cooler Compressor Shaft
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88360-30270 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-30280
Seal Assy, Cooler Compressor Shaft
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88360-30280 |
— | ||
|
88360
|
88360
88360-60011
Seal Assy, Cooler Compressor Shaft
[10.1970 - 01.1975] FJ55 |
88360-60011 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-22060
Seal Assy, Cooler Compressor Shaft
[10.1970 - 01.1975] FJ55 |
88360-22060 |
— | ||
|
88360A
|
88360A
90096-90005
Ring, Snap (For Magnet Clutch)
[10.1970 - 01.1975] FJ55 |
90096-90005 |
— | ||
|
88360A
|
88360A
90096-90006
Ring, Compressor Seal Plate Snap
[01.1975 - 01.1979] FJ55..LHD..GEN |
90096-90006 |
— | ||
|
88360B
|
88360B
88361-30250
Seal, Shaft
[01.1975 - 01.1979] FJ55..LHD..GEN |
88361-30250 |
— | ||
| replacement | |||||
|
88360B
|
88360B
88360-30251
Seal Assy, Cooler Compressor Shaft
[01.1975 - 01.1979] FJ55..LHD..GEN |
88360-30251 |
— | ||
|
88362
|
88362
88362-30250
Plate, Cooler Compressor Seal
[01.1975 - 01.1979] FJ55..LHD..GEN |
88362-30250 |
— | ||
| replacement | |||||
|
88362
|
88362
88360-30251
Seal Assy, Cooler Compressor Shaft
[01.1975 - 01.1979] FJ55..LHD..GEN |
88360-30251 |
— | ||
|
88362
|
88362
88362-60010
Plate, Cooler Compressor Seal
[10.1970 - 01.1975] FJ55 |
88362-60010 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[10.1970 - 07.1980] FJ55 |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[10.1970 - 07.1980] FJ55 |
88374-20020 |
US $5.12 |
||
|
88375
|
88375
88375-12020
Cap, Cooler Compressor Service Valve
[10.1970 - 01.1979] FJ55 |
88375-12020 |
— | ||
|
88375
|
88375
88375-30260
Cap, Cooler Compressor Service Valve
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88375-30260 |
— | ||
| replacement | |||||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[01.1979 - 07.1980] FJ4#..LHD..GEN; FJ55..ARL,GEN; BJ40,FJ40,45..RHD..(PIC,V) |
88375-30270 |
— | ||
|
9009904255
|
9009904255
90099-04255
Bolt, Service Valve
|
90099-04255 |
— | ||
|
9009908057
|
9009908057
90099-08057
New Genuine Part
|
90099-08057 |
— | ||
