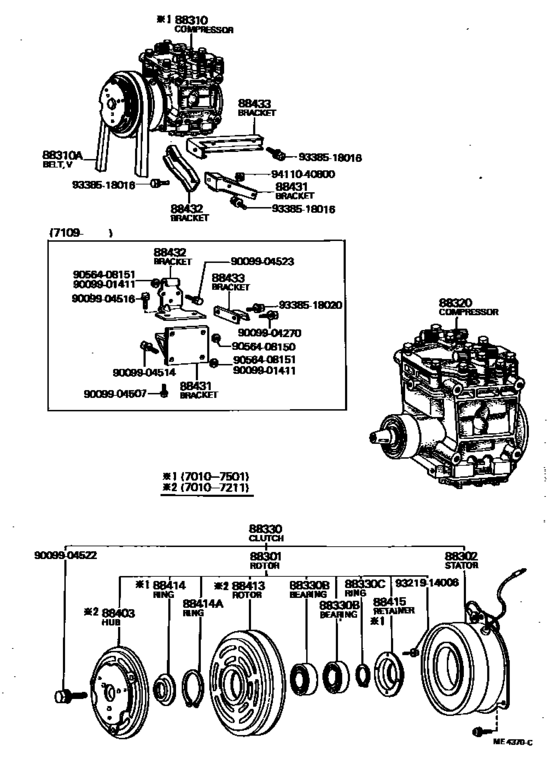

Heating & Air Conditioning - Compressor ([10.1970 - 02.1979] (7010-7902)FJ5#) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Japan
- Frame
- FJ55
- body
- WG
- ENGINE
- F
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VTG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88401-12032
Rotor Sub-Assy, Magnet Clutch
[09.1971 - 01.1975] FJ55 |
88401-12032 |
— | ||
|
88301
|
88301
88401-20040
Rotor Sub-Assy, Magnet Clutch
[06.1971 - 09.1971] FJ55 |
88401-20040 |
— | ||
| replacement | |||||
|
88301
|
88301
88401-14060
Rotor Sub-Assy, Magnet Clutch
[06.1971 - 09.1971] FJ55 |
88401-14060 |
— | ||
|
88301
|
88301
88401-60020
Rotor Sub-Assy, Magnet Clutch
[10.1970 - 06.1971] FJ55 |
88401-60020 |
— | ||
|
88302
|
88302
88411-12020
Stator Sub-Assy, Magnet Clutch
[10.1970 - 06.1971] FJ55 |
88411-12020 |
— | ||
|
88302
|
88302
88411-12021
Stator Sub-Assy, Magnet Clutch
[06.1971 - 10.1976] FJ5# |
88411-12021 |
— | ||
|
88310
|
88310
88310-22040
Compressor Assy, W/pulley
[06.1971 - 01.1975] FJ55 |
88310-22040 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-60040
Compressor Assy, W/pulley
[06.1971 - 01.1975] FJ55 |
88310-60040 |
— | ||
|
88310
|
88310
88310-60010
Compressor Assy, W/pulley
[10.1970 - 06.1971] FJ55 |
88310-60010 |
— | ||
|
88310A
|
88310A
99512-11345 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 [09.1973 - 02.1979] FJ5# |
99512-11345 |
US $16.60 |
||
| replacement | |||||
|
88310A
|
88310A
99322-01345
Belt, Fan(For Alternator)
[09.1973 - 02.1979] FJ5# |
99322-01345 |
— | ||
|
88310A
|
88310A
99523-11351
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[10.1970 - 09.1973] FJ55 |
99523-11351 |
— | ||
|
88320
|
88320
88320-20080
Compressor Assy, Cooler
[06.1971 - 02.1979] FJ5# |
88320-20080 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-20230
Compressor Assy, Cooler
[06.1971 - 02.1979] FJ5# |
88320-20230 |
— | ||
|
88320
|
88320
88320-60011
Compressor Assy, Cooler
[10.1970 - 06.1971] FJ55 |
88320-60011 |
— | ||
|
88330
|
88330
88410-12022
Clutch Assy, Magnet
[06.1971 - 01.1975] FJ55 |
88410-12022 |
— | ||
|
88330
|
88330
88410-60010 Clutch Assy, MagnetMAGNET [10.1970 - 06.1971] FJ55 |
88410-60010 |
US $608.61 |
||
| replacement | |||||
|
88330
|
88330
88410-20041
Clutch Assy, Magnet
[10.1970 - 06.1971] FJ55 |
88410-20041 |
— | ||
|
88330B
|
88330B
90099-10083
Bearing, Magnet Clutch
[10.1970 - 02.1979] FJ5# |
90099-10083 |
— | ||
|
88330C
|
88330C
90096-90007
Ring, Snap (For Magnet Clutch)
[10.1970 - 10.1976] FJ5# |
90096-90007 |
— | ||
|
88403
|
88403
88403-20030
Hub Sub-Assy, Magnet Clutch
[06.1971 - 11.1972] FJ55 |
88403-20030 |
— | ||
|
88403
|
88403
88403-20031
Hub Sub-Assy, Magnet Clutch
[11.1972 - 02.1979] FJ5# |
88403-20031 |
— | ||
|
88403
|
88403
88403-60010
Hub Sub-Assy, Magnet Clutch
[10.1970 - 06.1971] FJ55 |
88403-60010 |
— | ||
|
88413
|
88413
88412-12031
Pulley Sub-Assy, Magnet Clutch
[12.1971 - 11.1972] FJ55 |
88412-12031 |
— | ||
| replacement | |||||
|
88413
|
88413
88412-12032
Pulley Sub-Assy, Magnet Clutch
[12.1971 - 11.1972] FJ55 |
88412-12032 |
— | ||
|
88413
|
88413
88412-20040
Pulley Sub-Assy, Magnet Clutch
[06.1971 - 12.1971] FJ55 |
88412-20040 |
— | ||
|
88413
|
88413
88412-60020
Pulley Sub-Assy, Magnet Clutch
[10.1970 - 06.1971] FJ55 |
88412-60020 |
— | ||
|
88414
|
88414
88415-12030
Ring, Shield
[06.1971 - 01.1975] FJ55 |
88415-12030 |
— | ||
|
88414
|
88414
88415-60040
Ring, Snap (For Magnet Clutch)
[10.1970 - 06.1971] FJ55 |
88415-60040 |
— | ||
|
88414A
|
88414A
90096-90009
Ring, Shield Snap
[10.1970 - 01.1975] FJ55 |
90096-90009 |
— | ||
|
88415
|
88415
88415-12040
Retainer, Magnet Clutch Bearing, No.1
[06.1971 - 01.1975] FJ55 |
88415-12040 |
— | ||
|
88415
|
88415
88415-60030
Retainer, Magnet Clutch Bearing, No.1
[10.1970 - 06.1971] FJ55 |
88415-60030 |
— | ||
|
88431
|
88431
88437-60030
Bracket, Compressor Mounting, No.1
[10.1970 - 09.1971] FJ55 |
88437-60030 |
— | ||
|
88431
|
88431
88437-60040
Bracket, Compressor Mounting, No.1
[09.1971 - 02.1979] FJ5# |
88437-60040 |
— | ||
|
88432
|
88432
88437-60020
Bracket, Compressor Mounting, No.2
[10.1970 - 09.1971] FJ55 |
88437-60020 |
— | ||
|
88432
|
88432
88437-60050
Bracket, Compressor Mounting, No.2
[09.1971 - 02.1979] FJ5# |
88437-60050 |
— | ||
|
88433
|
88433
88437-60010
Bracket, Compressor Mounting, No.3
[10.1970 - 09.1971] FJ55 |
88437-60010 |
— | ||
|
88433
|
88433
88437-60060
Bracket, Compressor Mounting, No.3
[09.1971 - 04.1973] FJ55 |
88437-60060 |
— | ||
|
88433
|
88433
88437-60070
Bracket, Compressor Mounting, No.3
[09.1973 - 02.1979] FJ5# |
88437-60070 |
— | ||
|
9009901411
|
9009901411
90099-01411
New Genuine Part
|
90099-01411 |
— | ||
|
9009904270
|
9009904270
90099-04270
New Genuine Part
|
90099-04270 |
— | ||
|
9009904507
|
9009904507
90099-04507
New Genuine Part
|
90099-04507 |
— | ||
|
9009904514
|
9009904514
90099-04514
Bolt, Radiator Side Support Plate
|
90099-04514 |
— | ||
| replacement | |||||
|
9009904514
|
9009904514
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9009904516
|
9009904516
90099-04516
Bolt (For Transfer Power Take-Off Cover)
|
90099-04516 |
— | ||
| replacement | |||||
|
9009904516
|
9009904516
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.44 |
||
|
9009904522
|
9009904522
90099-04522
New Genuine Part
|
90099-04522 |
— | ||
|
9009904523
|
9009904523
90099-04523
New Genuine Part
|
90099-04523 |
— | ||
|
9056408150
|
9056408150
90564-08150 Shim, Rear Parking Brake Shoe Lever |
90564-08150 |
US $2.72 |
||
|
9056408151
|
9056408151
90564-08151 Shim, Rear Parking Brake Shoe Lever |
90564-08151 |
US $1.49 |
||
|
9321914006
|
9321914006
93219-14006
New Genuine Part
|
93219-14006 |
— | ||
|
9338518016
|
9338518016
93385-18016 New Genuine Part |
93385-18016 |
US $1.22 |
||
|
9338518020
|
9338518020
93385-18020
New Genuine Part
|
93385-18020 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
