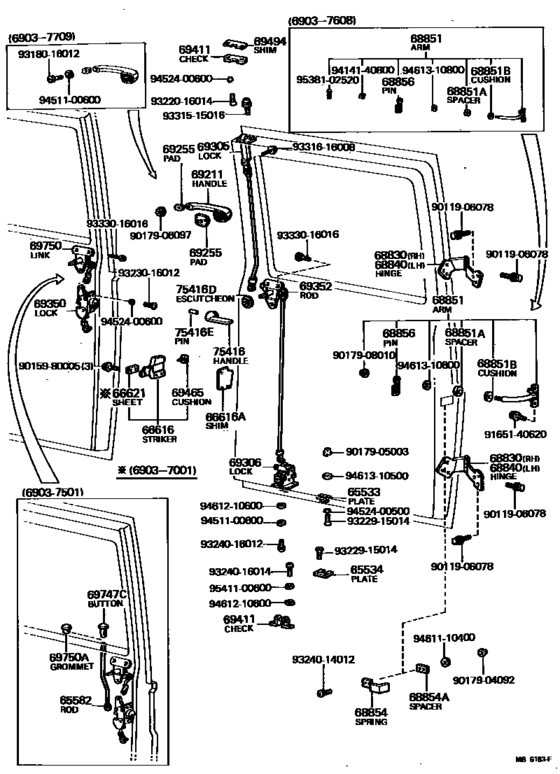

Back Door Lock & Hinge ([03.1969 - 07.1980] (6903-8007)FJ55..VKC) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65533
|
65533
65533-90354
Plate, Back Door Down Stopper, Upper
[03.1969 - 07.1980] FJ55..VKC |
65533-90354 |
— | ||
|
65534
|
65534
65534-90354
Plate, Back Door Down Stopper, Lower
[03.1969 - 07.1980] FJ55..VKC |
65534-90354 |
— | ||
|
65582
|
65582
65581-90355
Rod, Back Door Locking Control Push
[03.1969 - 01.1975] FJ55..VKC |
65581-90355 |
— | ||
|
66616
|
66616
69410-20031 Striker, Tail Gate LockTAIL GATE LOCK [03.1969 - 01.1970] FJ55..VKC |
69410-20031 |
US $27.52 |
||
|
66616
|
66616
69410-20032
Striker, Tail Gate Lock
[01.1970 - 03.1973] FJ55..VKC |
69410-20032 |
— | ||
|
66616
|
66616
69410-90351
Striker, Tail Gate Lock
[03.1973 - 07.1980] FJ55..VKC |
69410-90351 |
— | ||
|
66621
|
66621
69425-20031
Sheet, Tail Gate Lock Striker
[03.1969 - 01.1970] FJ55..VKC |
69425-20031 |
— | ||
|
68830
|
68830
65610-90354 Hinge Assy, Back Door, RhBACK DOOR, RH [03.1969 - 04.1975] FJ55..VKC UPPER |
65610-90354 |
US $64.94 |
||
| replacement | |||||
|
68830
|
68830
65610-90356 Hinge Assy, Back Door, RhBACK DOOR, RH [03.1969 - 04.1975] FJ55..VKC UPPER |
65610-90356 |
US $64.94 |
||
|
68830
|
68830
65630-90354 Hinge Assy, Back Door, RhBACK DOOR, RH [03.1969 - 04.1975] FJ55..VKC LOWER |
65630-90354 |
US $64.94 |
||
| replacement | |||||
|
68830
|
68830
65630-90356 Hinge Assy, Back Door, RhBACK DOOR, RH [03.1969 - 04.1975] FJ55..VKC LOWER |
65630-90356 |
US $64.94 |
||
|
68840
|
68840
65620-90354 Hinge Assy, Back Door, LhBACK DOOR, LH [03.1969 - 04.1975] FJ55..VKC UPPER |
65620-90354 |
US $64.94 |
||
| replacement | |||||
|
68840
|
68840
65620-90356
Hinge Assy, Back Door, Lh
[03.1969 - 04.1975] FJ55..VKC UPPER |
65620-90356 |
— | ||
|
68840
|
68840
65640-90354 Hinge Assy, Back Door, LhBACK DOOR, LH [03.1969 - 04.1975] FJ55..VKC LOWER |
65640-90354 |
US $64.94 |
||
| replacement | |||||
|
68840
|
68840
65640-90356
Hinge Assy, Back Door, Lh
[03.1969 - 04.1975] FJ55..VKC LOWER |
65640-90356 |
— | ||
|
68851
|
68851
61550-90354
Arm, Back Door Open Stop
[03.1969 - 07.1980] FJ55..VKC RH. |
61550-90354 |
— | ||
| replacements | |||||
|
68851
|
68851
61551-90904 Retainer, Door Switch[03.1969 - 07.1980] FJ55..VKC RH. |
61551-90904 |
US $47.90 |
||
|
68851
|
68851
61583-90354
Spacer, Back Door Open Stopper Arm
[03.1969 - 07.1980] FJ55..VKC RH. |
61583-90354 |
— | ||
|
68851
|
68851
61584-90354
Cushion, Back Door Open Stopper Arm
[03.1969 - 07.1980] FJ55..VKC RH. |
61584-90354 |
— | ||
|
68851
|
68851
94141-40800
New Genuine Part
[03.1969 - 07.1980] FJ55..VKC RH. |
94141-40800 |
— | ||
|
68851
|
68851
94613-10800 Spacer (For Control Select Lever Support)[03.1969 - 07.1980] FJ55..VKC RH. |
94613-10800 |
from US $0.68 |
||
|
68851
|
68851
95381-02520 PINCOTTER[03.1969 - 07.1980] FJ55..VKC RH. |
95381-02520 |
US $2.08 |
||
|
68851
|
68851
61560-90354 Arm, Back Door Open StopBACK DOOR OPEN STOP [03.1969 - 07.1980] FJ55..VKC LH. |
61560-90354 |
US $28.97 |
||
| replacements | |||||
|
68851
|
68851
61551-90904 Retainer, Door Switch[03.1969 - 07.1980] FJ55..VKC LH. |
61551-90904 |
US $47.90 |
||
|
68851
|
68851
61556-90354
Pin, Back Door Open Stop Set
[03.1969 - 07.1980] FJ55..VKC LH. |
61556-90354 |
— | ||
|
68851
|
68851
61583-90354
Spacer, Back Door Open Stopper Arm
[03.1969 - 07.1980] FJ55..VKC LH. |
61583-90354 |
— | ||
|
68851
|
68851
61584-90354
Cushion, Back Door Open Stopper Arm
[03.1969 - 07.1980] FJ55..VKC LH. |
61584-90354 |
— | ||
|
68851
|
68851
94141-40800
New Genuine Part
[03.1969 - 07.1980] FJ55..VKC LH. |
94141-40800 |
— | ||
|
68851
|
68851
94613-10800 Spacer (For Control Select Lever Support)[03.1969 - 07.1980] FJ55..VKC LH. |
94613-10800 |
from US $0.68 |
||
|
68851
|
68851
95381-02520 PINCOTTER[03.1969 - 07.1980] FJ55..VKC LH. |
95381-02520 |
US $2.08 |
||
|
68851A
|
68851A
61583-90354
Spacer, Back Door Open Stopper Arm
[03.1969 - 07.1980] FJ55..VKC |
61583-90354 |
— | ||
|
68851B
|
68851B
61584-90354
Cushion, Back Door Open Stopper Arm
[03.1969 - 07.1980] FJ55..VKC |
61584-90354 |
— | ||
|
68854
|
68854
61581-90354
Spring, Back Door Open Stopper
[03.1969 - 07.1980] FJ55..VKC |
61581-90354 |
— | ||
|
68854A
|
68854A
61582-90354
Spacer, Back Door Open Stopper
[03.1969 - 07.1980] FJ55..VKC |
61582-90354 |
— | ||
|
68856
|
68856
61556-90354
Pin, Back Door Open Stop Set
[03.1969 - 07.1980] FJ55..VKC |
61556-90354 |
— | ||
|
69211
|
69211
69210-90351
Handle Assy, Front Door, Outside Rh
[03.1969 - 09.1977] FJ55..VKC |
69210-90351 |
— | ||
|
69255
|
69255
69251-90351
Pad, Back Door Handle
[03.1969 - 11.1976] FJ55..VKC LARGE |
69251-90351 |
— | ||
| replacements | |||||
|
69255
|
69255
69251-90353
Pad, Front Door Outside Handle, Front Rh
[03.1969 - 11.1976] FJ55..VKC LARGE |
69251-90353 |
— | ||
|
69255
|
69255
69252-90352
Pad, Front Door Outside Handle, Front Lh
[03.1969 - 11.1976] FJ55..VKC LARGE |
69252-90352 |
— | ||
|
69255
|
69255
69253-35010
Pad, Front Door Outside Handle, Front Rh
[03.1969 - 11.1976] FJ55..VKC SMALL |
69253-35010 |
— | ||
|
69305
|
69305
65550-90354
Lock Sub-Assy, Back Door, Upper
[03.1969 - 07.1975] FJ55..VKC |
65550-90354 |
— | ||
|
69306
|
69306
65560-90354
Lock Sub-Assy, Back Door, Lower
[03.1969 - 07.1978] FJ55..VKC |
65560-90354 |
— | ||
|
69350
|
69350
65580-90355
Lock Assy, Back Door
[03.1969 - 07.1978] FJ55..VKC |
65580-90355 |
— | ||
|
69352
|
69352
65504-90354 Rod, Back Door Lock Control, LowerBACK DOOR LOCK CONTROL, LOWER [03.1969 - 07.1978] FJ55..VKC |
65504-90354 |
US $192.19 |
||
|
69411
|
69411
65528-90354
Check, Back Door
[03.1969 - 01.1979] FJ55..VKC UPPER |
65528-90354 |
— | ||
|
69411
|
69411
69450-13010
Check, Back Door
[03.1969 - 12.1977] FJ55..VKC LOWER |
69450-13010 |
— | ||
|
69465
|
69465
69441-20031
Cushion, Door Lock, Rh
[03.1969 - 07.1980] FJ55..VKC |
69441-20031 |
— | ||
|
69747C
|
69747C
55619-90010
Button, Door Locking(For Back Door)
[03.1969 - 01.1975] FJ55..VKC |
55619-90010 |
— | ||
|
69750
|
69750
65503-90354
Link Sub-Assy, Back Door Remote Control
[03.1969 - 07.1978] FJ55..VKC |
65503-90354 |
— | ||
|
69750A
|
69750A
90480-10102
Grommet(For Door Panel Lock Button)
[03.1969 - 01.1975] FJ55..VKC |
90480-10102 |
— | ||
| replacement | |||||
|
69750A
|
69750A
90480-10102-01 Grommet(For Rear Door Panel Lock Button)[03.1969 - 01.1975] FJ55..VKC |
90480-10102-01 |
from US $1.31 |
||
|
75416
|
75416
69271-10020
Handle, Tail Gate, Inside
[03.1969 - 03.1972] FJ55..VKC |
69271-10020 |
— | ||
|
75416D
|
75416D
69265-10021
Escutcheon, Back Door Inside Handle
[03.1969 - 07.1980] FJ55..VKC |
69265-10021 |
— | ||
|
75416E
|
75416E
90250-03007
Pin, Back Door Inside Handle
[03.1969 - 07.1980] FJ55..VKC |
90250-03007 |
— | ||
|
9011906078
|
9011906078
90119-06078 New Genuine Part |
90119-06078 |
US $1.75 |
||
| replacement | |||||
|
9011906078
|
9011906078
90119-06330 Bolt |
90119-06330 |
US $1.28 |
||
|
9015980005
|
9015980005
90159-80005 New Genuine Part |
90159-80005 |
US $2.62 |
||
|
9017904092
|
9017904092
90179-04092
NUT
|
90179-04092 |
— | ||
| replacement | |||||
|
9017904092
|
9017904092
90179-04001 NUT |
90179-04001 |
US $2.88 |
||
|
9017905003
|
9017905003
90179-05003 NUT |
90179-05003 |
US $2.08 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017908010
|
9017908010
90179-08010
New Genuine Part
|
90179-08010 |
— | ||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9318016012
|
9318016012
93180-16012
New Genuine Part
|
93180-16012 |
— | ||
|
9322016014
|
9322016014
93220-16014 SCREW |
93220-16014 |
US $1.60 |
||
|
9322915014
|
9322915014
93229-15014
New Genuine Part
|
93229-15014 |
— | ||
|
9323016012
|
9323016012
93230-16012
New Genuine Part
|
93230-16012 |
— | ||
|
9324014012
|
9324014012
93240-14012
New Genuine Part
|
93240-14012 |
— | ||
|
9324016012
|
9324016012
93240-16012 New Genuine Part |
93240-16012 |
US $1.89 |
||
|
9324016014
|
9324016014
93240-16014 New Genuine Part |
93240-16014 |
US $1.60 |
||
|
9331515016
|
9331515016
93315-15016 SCREW WWASHER |
93315-15016 |
US $2.08 |
||
|
9331616008
|
9331616008
93316-16008 New Genuine Part |
93316-16008 |
US $2.62 |
||
|
9333016016
|
9333016016
93330-16016
New Genuine Part
|
93330-16016 |
— | ||
|
9414140800
|
9414140800
94141-40800
New Genuine Part
|
94141-40800 |
— | ||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9452400500
|
9452400500
94524-00500
New Genuine Part
|
94524-00500 |
— | ||
|
9452400600
|
9452400600
94524-00600 New Genuine Part |
94524-00600 |
US $2.72 |
||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9461210600
|
9461210600
94612-10600 New Genuine Part |
94612-10600 |
US $3.84 |
||
|
9461310500
|
9461310500
94613-10500 New Genuine Part |
94613-10500 |
US $2.72 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.68 |
||
|
9538102520
|
9538102520
95381-02520 PINCOTTER |
95381-02520 |
US $2.08 |
||
|
9541100600
|
9541100600
95411-00600
New Genuine Part
|
95411-00600 |
— | ||
