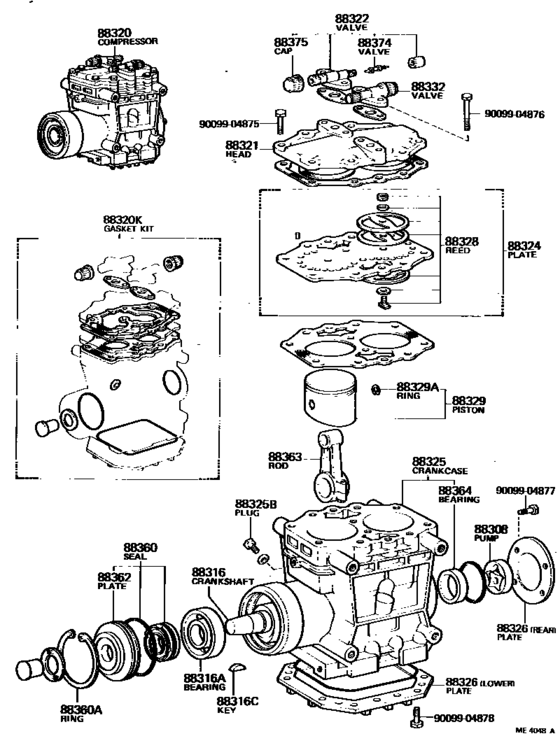

Heating & Air Conditioning - Compressor ([10.1970 - 01.1975] (7010-7501)FJ55 ; (7501-7901)FJ55..RHD) Diagram Toyota LAND CRUISER
- Year
- 1969 - 1975
- Sales region
- Europe
- Frame
- FJ55
- ENGINE
- F
- DESTINATION
- GEN
- Model
- LAND CRUISER 50
- From
- 03.1969
- To
- 01.1975
- Vehicle Model
- Land Cruiser
- Driver's Position
- RHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88308
|
88308
88308-20030
Pump Assy, Cooler Compressor
[10.1970 - 01.1975] FJ55 |
88308-20030 |
— | ||
|
88316
|
88316
88316-60010
Crankshaft, Cooler Compressor
[10.1970 - 01.1975] FJ55 |
88316-60010 |
— | ||
|
88316A
|
88316A
88366-60010
Bearing, Compressor Crankshaft, Front
[10.1970 - 01.1975] FJ55 |
88366-60010 |
— | ||
|
88316C
|
88316C
90097-00465
Key(For Alternator Pulley)
[10.1970 - 01.1975] FJ55 |
90097-00465 |
— | ||
|
88320
|
88320
88320-20080
Compressor Assy, Cooler
[06.1971 - 01.1975] FJ55 |
88320-20080 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-20230
Compressor Assy, Cooler
[06.1971 - 01.1975] FJ55 |
88320-20230 |
— | ||
|
88320
|
88320
88320-60011
Compressor Assy, Cooler
[10.1970 - 06.1971] FJ55 |
88320-60011 |
— | ||
|
88320K
|
88320K
04881-60010
Gasket Kit, Cooler Compressor Overhaul
[10.1970 - 01.1975] FJ55 |
04881-60010 |
— | ||
|
88321
|
88321
88321-60010
Head, Cooler Compressor Cylinder
[10.1970 - 01.1975] FJ55 |
88321-60010 |
— | ||
|
88322
|
88322
88371-60010
Valve, Cooler Compressor Suction Service
[10.1970 - 01.1975] FJ55 |
88371-60010 |
— | ||
|
88324
|
88324
88305-60010
Plate Sub-Assy, Cooler Compressor Valve
[10.1970 - 01.1975] FJ55 |
88305-60010 |
— | ||
| replacement | |||||
|
88324
|
88324
88305-30270
Plate Sub-Assy, Valve
[10.1970 - 01.1975] FJ55 |
88305-30270 |
— | ||
|
88325
|
88325
88325-60010
Crankcase, Cooler Compressor
[10.1970 - 01.1975] FJ55 |
88325-60010 |
— | ||
|
88325B
|
88325B
88339-60010
Plug, Cylinder Block Oil
[10.1970 - 01.1975] FJ55 |
88339-60010 |
— | ||
|
88326
|
88326
88326-60010
Plate, Cooler Compressor Bottom
[10.1970 - 01.1975] FJ55 FOR REAR |
88326-60010 |
— | ||
|
88326
|
88326
88331-60010
Plate, Cooler Compressor Bottom
[10.1970 - 01.1975] FJ55 FOR LOWER |
88331-60010 |
— | ||
|
88328
|
88328
88307-60010
Reed Sub-Assy, Cooler Compressor Valve
[10.1970 - 01.1975] FJ55 |
88307-60010 |
— | ||
|
88329
|
88329
88301-60010
Piston Sub-Assy, Cooler Compressor
[10.1970 - 01.1975] FJ55 |
88301-60010 |
— | ||
|
88329A
|
88329A
90099-07058
Ring, Compressor Piston Snap
[10.1970 - 01.1975] FJ55 |
90099-07058 |
— | ||
| replacement | |||||
|
88329A
|
88329A
90099-07085
Ring, Compressor Piston Snap
[10.1970 - 01.1975] FJ55 |
90099-07085 |
— | ||
|
88332
|
88332
88372-60010
Valve, Cooler Compressor Discharge Service
[10.1970 - 01.1975] FJ55 |
88372-60010 |
— | ||
|
88360
|
88360
88360-60011
Seal Assy, Cooler Compressor Shaft
[10.1970 - 01.1975] FJ55 |
88360-60011 |
— | ||
| replacement | |||||
|
88360
|
88360
88360-22060
Seal Assy, Cooler Compressor Shaft
[10.1970 - 01.1975] FJ55 |
88360-22060 |
— | ||
|
88360A
|
88360A
90096-90005
Ring, Snap (For Magnet Clutch)
[10.1970 - 01.1975] FJ55 |
90096-90005 |
— | ||
|
88362
|
88362
88362-60010
Plate, Cooler Compressor Seal
[10.1970 - 01.1975] FJ55 |
88362-60010 |
— | ||
|
88363
|
88363
88302-60010
Rod Sub-Assy, Cooler Compressor Connecting
[10.1970 - 01.1975] FJ55 |
88302-60010 |
— | ||
|
88364
|
88364
88367-60010
Bearing, Compressor Crankshaft, Rear
[10.1970 - 01.1975] FJ55 |
88367-60010 |
— | ||
|
88374
|
88374
88374-12020
Valve, Service, No.1
[10.1970 - 07.1980] FJ55 |
88374-12020 |
— | ||
| replacement | |||||
|
88374
|
88374
88374-20020 Valve, Service, No.1[10.1970 - 07.1980] FJ55 |
88374-20020 |
US $5.12 |
||
|
88375
|
88375
88375-12020
Cap, Cooler Compressor Service Valve
[10.1970 - 01.1979] FJ55 |
88375-12020 |
— | ||
|
9009904875
|
9009904875
90099-04875
New Genuine Part
|
90099-04875 |
— | ||
|
9009904876
|
9009904876
90099-04876
New Genuine Part
|
90099-04876 |
— | ||
|
9009904877
|
9009904877
90099-04877
New Genuine Part
|
90099-04877 |
— | ||
|
9009904878
|
9009904878
90099-04878
New Genuine Part
|
90099-04878 |
— | ||
