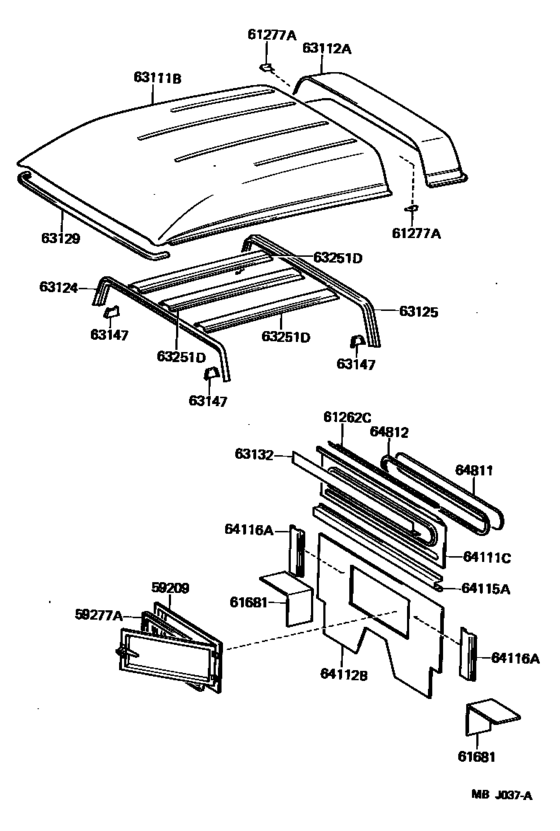

Roof Panel & Back Panel ([11.1984 - ] (8411- )IV4) Diagram Toyota LAND CRUISER
- Year
- 1984 - 1987
- Sales region
- Japan
- Frame
- FJ62
- body
- WGV
- Roof
- SRF
- ENGINE
- 3F
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 60
- From
- 11.1984
- To
- 08.1987
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser VAN
- Back Door
- VKC
- Fuel Induction
- CBR
- Building Condition
- IV4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
59209
|
59209
59209-90A00 Cover Sub-Assy, Inspection Hole[11.1984 - 08.1987] FJ62..IV4 |
59209-90A00 |
US $420.78 |
||
|
59277A
|
59277A
59277-90A00 Weatherstrip, Inspection Hole Cover[11.1984 - 08.1987] FJ62..IV4 |
59277-90A00 |
US $29.85 |
||
|
61262C
|
61262C
61262-90A02 Channel, Roof Drip, Rear[11.1984 - 08.1987] FJ62..IV4 |
61262-90A02 |
US $97.55 |
||
|
61277A
|
61277A
61277-90A00 Joint, Roof Drip ChannelROOF DRIP CHANNEL [11.1984 - 11.1985] BJ61,FJ62..VKC |
61277-90A00 |
US $14.85 |
||
| replacement | |||||
|
61277A
|
61277A
61277-90K00 Joint, Roof Drip Channel[11.1984 - 11.1985] BJ61,FJ62..VKC |
61277-90K00 |
from US $8.72 |
||
|
61277A
|
61277A
61277-90K00 Joint, Roof Drip Channel[11.1985 - 08.1987] BJ61,FJ62,HJ60..VKC |
61277-90K00 |
from US $8.72 |
||
|
61681
|
61681
61681-90A02
Panel, Rear Body Step, Rh
[11.1984 - 08.1987] FJ62..IV4 |
61681-90A02 |
— | ||
|
63111B
|
63111B
63111-90A07 Panel, Roof[11.1984 - 08.1987] FJ62..IV4 |
63111-90A07 |
US $1,078.90 |
||
|
63112A
|
63112A
63112-90A00 Panel, Roof, No.2[11.1984 - 08.1987] FJ62..IV4 |
63112-90A00 |
US $1,092 |
||
|
63124
|
63124
63123-90A00 Reinforcement, Roof Panel, No.1[11.1984 - 08.1987] FJ62..IV4 |
63123-90A00 |
US $106.29 |
||
|
63125
|
63125
63124-90A00 Reinforcement, Roof Panel, No.2[11.1984 - 08.1987] FJ62..IV4 |
63124-90A00 |
US $106.29 |
||
|
63129
|
63129
63129-90A01 Protector, Windshield Header[11.1984 - 08.1987] FJ62..IV4 |
63129-90A01 |
US $44.41 |
||
|
63132
|
63132
63132-90A03 Panel, Windshield Header, Inner[11.1984 - 08.1987] FJ62..IV4 |
63132-90A03 |
US $211.12 |
||
|
63147
|
63147
63147-90A02 Bracket, Roof Panel Reinforcement[11.1984 - 08.1987] FJ62..IV4 |
63147-90A02 |
US $29.70 |
||
|
63251D
|
63251D
63251-90A00 Strength, Roof Panel, Center No.1[11.1984 - 08.1987] FJ62..IV4 |
63251-90A00 |
US $88.82 |
||
|
64111C
|
64111C
64111-90A00 Panel, Cab Back, Upper[11.1984 - 08.1987] FJ62..IV4 |
64111-90A00 |
US $238.78 |
||
|
64112B
|
64112B
64112-90A00 Panel, Cab Back, Lower[11.1984 - 08.1987] FJ62..IV4 |
64112-90A00 |
US $410.59 |
||
|
64115A
|
64115A
64115-90A00 Reinforcement, Back, Upper[11.1984 - 08.1987] FJ62..IV4 |
64115-90A00 |
US $125.22 |
||
|
64116A
|
64116A
64116-90A00 Reinforcement, Back, Lower[11.1984 - 08.1987] FJ62..IV4 |
64116-90A00 |
US $60.72 |
||
|
64811
|
64811
64811-90A00 Glass, Back WindowBACK WINDOW [11.1984 - 01.1986] FJ62..IV4 *TEM,T=3.5 |
64811-90A00 |
US $368.37 |
||
|
64812
|
64812
64812-90A00
Weatherstrip, Back Window Glass, No.1
[11.1984 - 01.1986] FJ62..IV4 |
64812-90A00 |
— | ||
