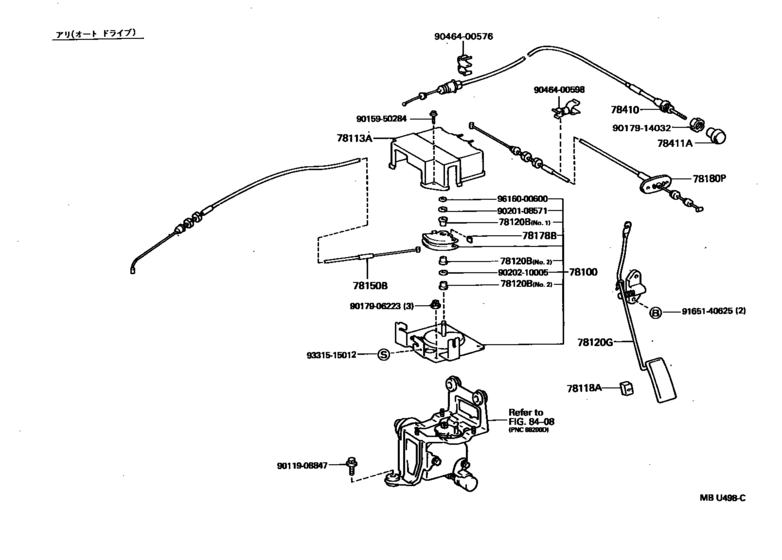

Accelerator Link ([01.1990 - 08.1992] (9001-9208)FJ80) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- FJ80
- grade
- VX
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 08.1992
- Vehicle Model
- Land Cruiser VAN
- Back Door
- LUB
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78100
|
78100
78100-60020 Link Assy, Accelerator[01.1990 - 08.1992] FJ80 |
78100-60020 |
US $193.65 |
||
|
78113A
|
78113A
78113-60040
Cover, Auto Drive Accelerator Link
[01.1990 - 08.1992] FJ80,HDJ81..ATM |
78113-60040 |
— | ||
|
78118A
|
78118A
78118-60010 Stopper, Accelerator Pedal[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
78118-60010 |
US $4.80 |
||
|
78120B
|
78120B
90386-08005 Bush (For Rear Seat Center Armrest)[01.1990 - 08.1992] FJ80,HDJ81..ATM ＮＯ．１ |
90386-08005 |
US $0.87 |
||
|
78120B
|
78120B
90386-08077 Bush (For Throttle Cam Shaft)[01.1990 - 08.1992] FJ80,HDJ81..ATM ＮＯ．２ |
90386-08077 |
from US $1.44 |
||
|
78120G
|
78120G
78120-60030 Rod Assy, Accelerator Pedal[01.1990 - 06.1990] FJ80,HDJ81,HZJ81 |
78120-60030 |
US $49.50 |
||
|
78120G
|
78120G
78120-60070
Rod Assy, Accelerator Pedal
[06.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81..ATM |
78120-60070 |
— | ||
|
78150B
|
78150B
78150-60010
Cable Assy, Accelerator Auto Drive
[01.1990 - 08.1992] FJ80 |
78150-60010 |
— | ||
|
78178B
|
78178B
78178-14010
Damper, Accel Control No.4 Rod Bracket
[01.1990 - 08.1992] FJ80,HDJ81..ATM |
78178-14010 |
— | ||
|
78180P
|
78180P
78180-60050 Cable Assy, Accelerator Control[01.1990 - 08.1992] FJ80 ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
78180-60050 |
US $42.22 |
||
|
78180P
|
78180P
78180-60070 Cable Assy, Accelerator Control[01.1990 - 08.1992] FJ80 |
78180-60070 |
US $57.51 |
||
|
78410
|
78410
78410-60080
Cable Assy, Throttle Control
[01.1990 - 01.1998] FJ80,FZJ80 |
78410-60080 |
— | ||
|
78411A
|
78411A
78402-60030 Knob, Throttle Control Cable[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
78402-60030 |
from US $9.54 |
||
|
9011908847
|
9011908847
90119-08847
New Genuine Part
|
90119-08847 |
— | ||
|
9015950284
|
9015950284
90159-50284
New Genuine Part
|
90159-50284 |
— | ||
|
9017906223
|
9017906223
90179-06223
Clip(For Front Bumper), No.1
|
90179-06223 |
— | ||
| replacement | |||||
|
9017906223
|
9017906223
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9017914032
|
9017914032
90179-14032 Nut, Choke |
90179-14032 |
from US $0.96 |
||
|
9020108571
|
9020108571
90201-08571 New Genuine Part |
90201-08571 |
US $2.77 |
||
|
9020210005
|
9020210005
90202-10005 New Genuine Part |
90202-10005 |
US $1.89 |
||
|
9046400576
|
9046400576
90464-00576 Clamp, No.1 (For Transfer Vacuum) |
90464-00576 |
US $1.14 |
||
|
9046400598
|
9046400598
90464-00598 New Genuine Part |
90464-00598 |
US $2.48 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
