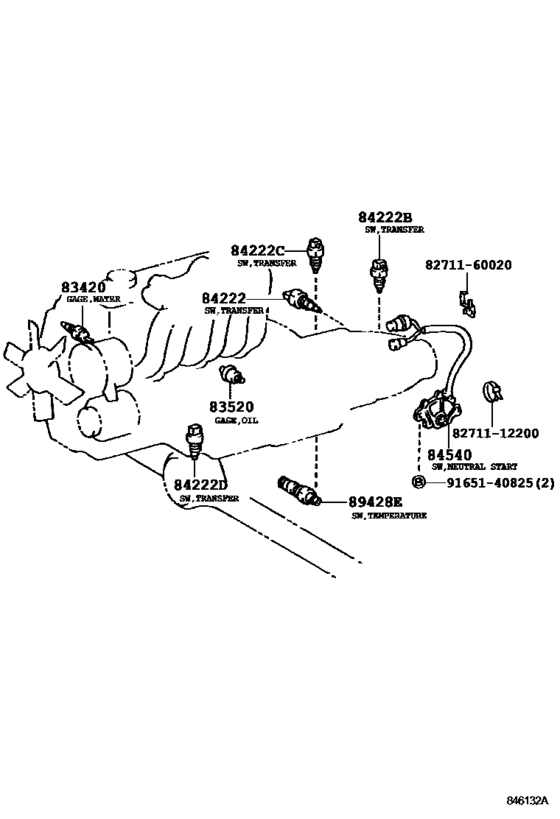

Switch & Relay & Computer ([01.1990 - 08.1992] E/G,T/M,T/F & FR DIFF (9001-9208)FJ80) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1992
- Sales region
- Japan
- Frame
- FJ80
- grade
- VX
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 08.1992
- Vehicle Model
- Land Cruiser VAN
- Back Door
- LUB
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[01.1990 - 08.1992] FJ80,HDJ81,HZJ81 |
83420-20020 |
from US $30.54 |
||
|
83520
|
83520
83520-60010
Gage Assy,oil Pressure Sender
[01.1990 - 12.1991] FJ80,HDJ81,HZJ81..LUB |
83520-60010 |
— | ||
| replacement | |||||
|
83520
|
83520
83520-60011 Gage Assy,oil Pressure Sender[01.1990 - 12.1991] FJ80,HDJ81,HZJ81..LUB |
83520-60011 |
from US $56.54 |
||
|
83520
|
83520
83520-60011 Gage Assy,oil Pressure Sender[12.1991 - 01.1996] FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
83520-60011 |
from US $56.54 |
||
|
84222
|
84222
84222-12010 Switch, Transfer Indicator, No.1[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
84222-12010 |
from US $49.25 |
||
|
84222B
|
84222B
84222-60080
Switch, Transfer Indicator, No.1
[01.1990 - 01.1998] HZJ81;HDJ81..MTM..TD2;FJ80,FZJ80,HDJ81..ATM |
84222-60080 |
— | ||
| replacement | |||||
|
84222B
|
84222B
84222-60081 Switch, Transfer Indicator, No.1[01.1990 - 01.1998] HZJ81;HDJ81..MTM..TD2;FJ80,FZJ80,HDJ81..ATM |
84222-60081 |
from US $41.80 |
||
|
84222C
|
84222C
84222-12010 Switch, Transfer Indicator, No.1[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
84222-12010 |
from US $49.25 |
||
|
84222D
|
84222D
84222-12010 Switch, Transfer Indicator, No.1[01.1990 - 01.1998] FJ80,FZJ80,HDJ81,HZJ81 |
84222-12010 |
from US $49.25 |
||
|
84540
|
84540
84540-60010 Switch Assy, Neutral Start[01.1990 - 01.1995] FJ80,FZJ80,HDJ81,HZJ81..ATM |
84540-60010 |
US $174.24 |
||
|
89428E
|
89428E
89428-26030
Switch, Temperature, No.2
[01.1990 - 01.1995] FJ80,FZJ80,HDJ81,HZJ81..ATM |
89428-26030 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
8271160020
|
8271160020
82711-60020
Wire, Fuse To Fuse(for Combustion Heater)
|
82711-60020 |
— | ||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
