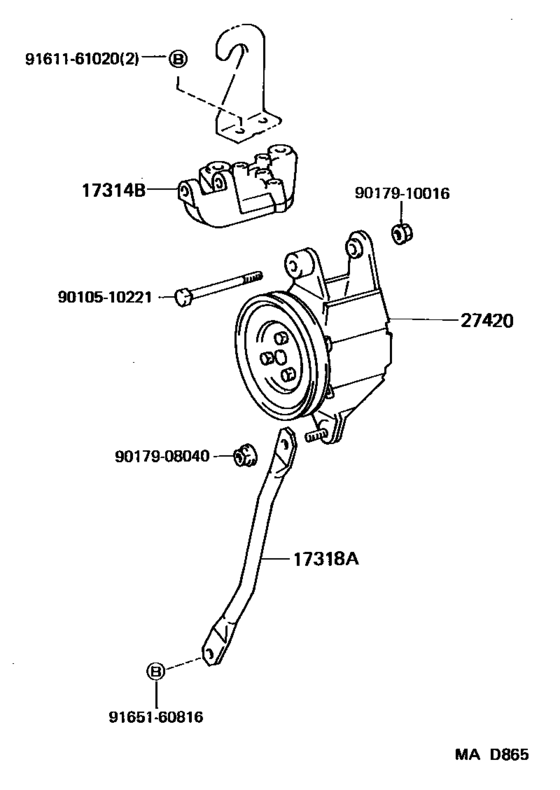

Mounting ([01.1990 - 08.1992] W(12V-80A IC ALT)&W(DUAL AIR CON) (9001-9208)3F) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1992
- Sales region
- General
- Frame
- FJ80
- grade
- GX
- ENGINE
- 3F
- TRANSMISSION
- MTM
- DESTINATION
- GCC
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 01.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Land Cruiser
- Back Door
- SOB
- Driver's Position
- LHD
- Fuel Induction
- CBR
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17314B
|
17314B
17314-61040
Bracket, Air Pump
[01.1990 - 08.1992] 3F..FJ80..(GX,VX)..(ARL,GCC) |
17314-61040 |
— | ||
|
17318A
|
17318A
17318-61060
Bar, Air Pump Adjusting, No.2
[01.1990 - 08.1992] 3F..FJ80..(GX,VX)..(ARL,GCC) |
17318-61060 |
— | ||
|
27420
|
27420
27420-61010
Pulley Assy, Alternator Idler
[01.1990 - 08.1992] 3F..FJ80..(GX,VX)..(ARL,GCC) |
27420-61010 |
— | ||
|
9010510221
|
9010510221
90105-10221 Bolt, Hexagon(For Air Pump Bracket Setting) |
90105-10221 |
from US $3.33 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.72 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
