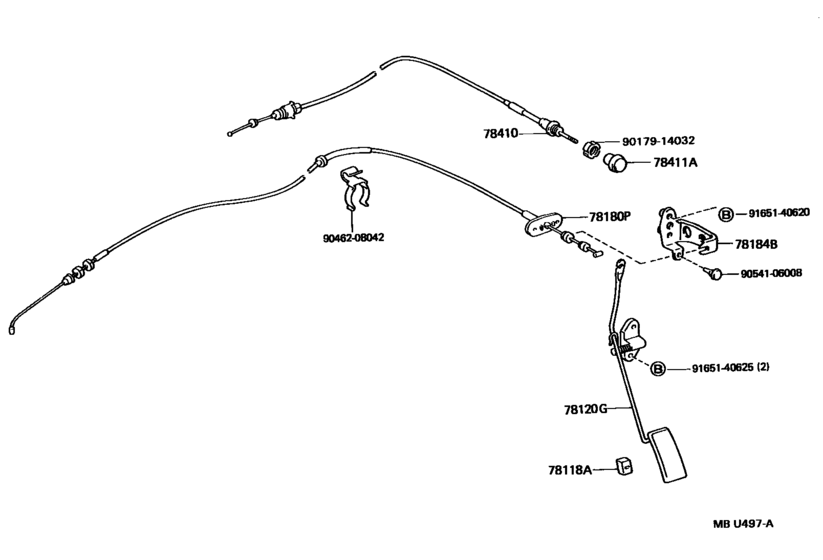

Accelerator Link ([01.1990 - 08.1992] (9001-9208)EFI) Diagram Toyota LAND CRUISER
- Year
- 1990 - 1992
- Sales region
- General
- Frame
- FJ80
- grade
- VX
- ENGINE
- 3FE
- TRANSMISSION
- ATM
- DESTINATION
- ARL
- Model
- LAND CRUISER 80
- From
- 01.1990
- To
- 08.1992
- Gear Shift Type
- 4FC
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78118A
|
78118A
78118-60010 Stopper, Accelerator Pedal[01.1990 - 08.1992] FJ80,FZJ80,HDJ80,HZJ80..RHD |
78118-60010 |
US $4.80 |
||
|
78120G
|
78120G
78120-60030 Rod Assy, Accelerator Pedal[01.1990 - 06.1990] FJ80,HDJ80,HZJ80..RHD |
78120-60030 |
US $49.50 |
||
|
78120G
|
78120G
78120-60070
Rod Assy, Accelerator Pedal
[06.1990 - 08.1992] FJ80,HDJ80..4FC..ARL |
78120-60070 |
— | ||
|
78180P
|
78180P
78180-60050 Cable Assy, Accelerator Control[01.1990 - 08.1992] FJ80..EFI W(*CRC) |
78180-60050 |
US $42.22 |
||
|
78180P
|
78180P
78180-60070 Cable Assy, Accelerator Control[01.1990 - 08.1992] FJ80..EFI |
78180-60070 |
US $57.51 |
||
|
78184B
|
78184B
78184-60030
Stopper, Accelerator Idle Adjusting
[01.1990 - 08.1992] FJ80,FZJ80 |
78184-60030 |
— | ||
|
78410
|
78410
78410-60080
Cable Assy, Throttle Control
[01.1990 - 08.1992] FJ80,FZJ80..RHD |
78410-60080 |
— | ||
|
78411A
|
78411A
78402-60030 Knob, Throttle Control Cable[01.1990 - 08.1992] FJ80,FZJ80,HDJ80,HZJ80 |
78402-60030 |
from US $9.54 |
||
|
9017914032
|
9017914032
90179-14032 Nut, Choke |
90179-14032 |
from US $0.96 |
||
|
9046208042
|
9046208042
90462-08042
Clamp, Cord
|
90462-08042 |
— | ||
| replacement | |||||
|
9046208042
|
9046208042
19242-15120
Clamp, Cord
|
19242-15120 |
— | ||
|
9054106008
|
9054106008
90541-06008 Cushion, No.1(For Clutch Pedal) |
90541-06008 |
from US $1.60 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
