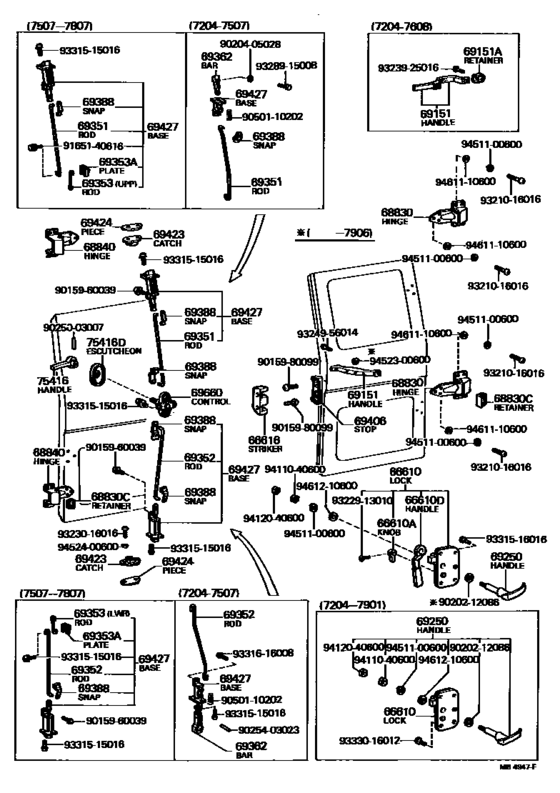

Back Door Lock & Hinge ([04.1972 - 07.1980] (7204-8007)BJ40,FJ40,45,HJ45..VKC) Diagram Toyota LAND CRUISER
- Year
- 1979 - 1980
- Sales region
- Europe
- Frame
- HJ45
- body
- V
- ENGINE
- H
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 04.1979
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
66610
|
66610
69310-90301 Lock Assy, Tail GateTAIL GATE LOCK [01.1979 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69310-90301 |
from US $120.08 |
||
|
66610A
|
66610A
69388-90300
Knob, Door Lock Key
[01.1979 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69388-90300 |
— | ||
|
66610D
|
66610D
69206-90300
Handle Sub-Assy, Door Inside
[01.1979 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69206-90300 |
— | ||
|
66616
|
66616
67451-90301
Striker, Tail Gate Lock
[03.1969 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
67451-90301 |
— | ||
|
68830
|
68830
68095-60020
Hinge Assy, Back Door, Rh
[04.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC LOWER |
68095-60020 |
— | ||
|
68830
|
68830
68905-60030
Hinge Assy, Back Door, Rh
[04.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC UPPER |
68905-60030 |
— | ||
|
68830C
|
68830C
68959-90301 Retainer, Back Door HingeBACK DOOR HINGE [07.1978 - 07.1980] BJ40,FJ40,45,HJ45..V |
68959-90301 |
from US $2.73 |
||
|
68840
|
68840
68095-60020
Hinge Assy, Back Door, Rh
[04.1975 - 07.1980] BJ40,FJ40,45,HJ45..VKC LOWER |
68095-60020 |
— | ||
|
68840
|
68840
68906-60020
Hinge Assy, Back Door, Lh
[04.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC UPPER |
68906-60020 |
— | ||
|
69151
|
69151
74810-10010-01
Handle, Back Door Inside Pull
[01.1979 - 07.1980] BJ40,FJ40,45,HJ45..VKC BLACK |
74810-10010-01 |
— | ||
| replacement | |||||
|
69151
|
69151
74630-90800 Handle, Back Door Inside Pull (Black)[01.1979 - 07.1980] BJ40,FJ40,45,HJ45..VKC BLACK |
74630-90800 |
from US $17.33 |
||
|
69250
|
69250
69201-90901 Handle Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [04.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69201-90901 |
US $55.78 |
||
|
69351
|
69351
69764-90302
Rod, Back Door Lock Control, Upper
[07.1978 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69764-90302 |
— | ||
|
69352
|
69352
69765-90302
Rod, Back Door Lock Control, Lower
[07.1978 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69765-90302 |
— | ||
|
69388
|
69388
69768-90300
Snap, Rod(For Door Lock)
[02.1973 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69768-90300 |
— | ||
|
69406
|
69406
69405-90300 Stop Sub-Assy, Door DownDOOR DOWN [04.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69405-90300 |
US $31.77 |
||
|
69423
|
69423
69451-90302 Striker Assy, Back Door, UpperBACK DOOR LOCK [07.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69451-90302 |
from US $17.02 |
||
|
69424
|
69424
69469-60010 Piece, Back Door Lock Catch[04.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69469-60010 |
US $12.32 |
||
|
69427
|
69427
69350-90302
Lock Sub-Assy, Back Door, Upper
[07.1978 - 07.1980] BJ40,FJ40,45,HJ45..VKC UPPER |
69350-90302 |
— | ||
|
69427
|
69427
69360-90302
Lock Sub-Assy, Back Door, Lower
[07.1978 - 07.1980] BJ40,FJ40,45,HJ45..VKC LOWER |
69360-90302 |
— | ||
|
69660
|
69660
69709-60011
Control Assy, Back Door Lock Remote, Lh
[04.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69709-60011 |
— | ||
|
75416
|
75416
69271-10020
Handle, Tail Gate, Inside
[04.1972 - 07.1980] BJ40,FJ40,45,55,HJ45..VKC |
69271-10020 |
— | ||
|
75416D
|
75416D
69265-60010 Escutcheon, Back Door Inside HandleBACK DOOR INSIDE HANDLE [04.1972 - 07.1980] BJ40,FJ40,45,HJ45..VKC |
69265-60010 |
US $12 |
||
|
9015960039
|
9015960039
90159-60039
New Genuine Part
|
90159-60039 |
— | ||
|
9015980099
|
9015980099
90159-80099
New Genuine Part
|
90159-80099 |
— | ||
|
9020212086
|
9020212086
90202-12086
New Genuine Part
|
90202-12086 |
— | ||
|
9020405028
|
9020405028
90204-05028
New Genuine Part
|
90204-05028 |
— | ||
|
9025003007
|
9025003007
90250-03007
Pin, Back Door Inside Handle
|
90250-03007 |
— | ||
|
9025403023
|
9025403023
90254-03023 New Genuine Part |
90254-03023 |
US $1.16 |
||
|
9050110202
|
9050110202
90501-10202 New Genuine Part |
90501-10202 |
US $3.93 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9321016016
|
9321016016
93210-16016 SCREW |
93210-16016 |
US $2.72 |
||
|
9322913010
|
9322913010
93229-13010 New Genuine Part |
93229-13010 |
US $0.87 |
||
|
9323016016
|
9323016016
93230-16016
New Genuine Part
|
93230-16016 |
— | ||
|
9323925016
|
9323925016
93239-25016 New Genuine Part |
93239-25016 |
US $1.12 |
||
|
9324956014
|
9324956014
93249-56014
New Genuine Part
|
93249-56014 |
— | ||
|
9328915008
|
9328915008
93289-15008 New Genuine Part |
93289-15008 |
US $1.75 |
||
|
9331515016
|
9331515016
93315-15016 SCREW WWASHER |
93315-15016 |
US $2.08 |
||
|
9331516016
|
9331516016
93315-16016 New Genuine Part |
93315-16016 |
US $2.62 |
||
|
9331616008
|
9331616008
93316-16008 New Genuine Part |
93316-16008 |
US $2.62 |
||
|
9333016012
|
9333016012
93330-16012 New Genuine Part |
93330-16012 |
US $2.08 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $2.72 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9452300600
|
9452300600
94523-00600 New Genuine Part |
94523-00600 |
US $2.33 |
||
|
9452400600
|
9452400600
94524-00600 New Genuine Part |
94524-00600 |
US $2.72 |
||
|
9461110600
|
9461110600
94611-10600 WASHERPLATE |
94611-10600 |
US $1.44 |
||
|
9461210600
|
9461210600
94612-10600 New Genuine Part |
94612-10600 |
US $3.84 |
||
