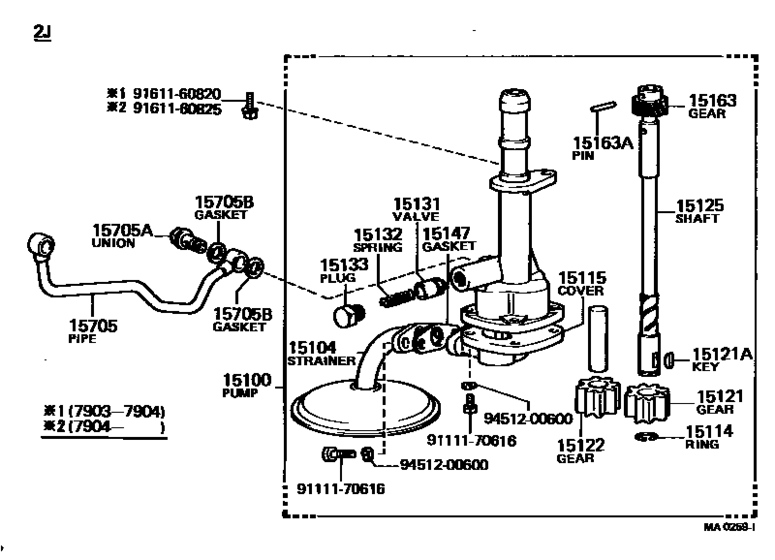

Engine Oil Pump ([04.1972 - 07.1980] (7204-8007)H) Diagram Toyota LAND CRUISER
- Year
- 1979 - 1980
- Sales region
- Europe
- Frame
- HJ45
- body
- V
- ENGINE
- H
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 04.1979
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-47030
Pump Assy, Oil
[04.1972 - 07.1980] H..HJ45 |
15100-47030 |
— | ||
|
15104
|
15104
15104-47030 Strainer Sub-Assy, OilOIL [04.1972 - 07.1980] H..HJ45 |
15104-47030 |
US $31.01 |
||
|
15114
|
15114
15114-46011
Ring, Shaft Snap
[09.1977 - 07.1980] H..HJ45 |
15114-46011 |
— | ||
|
15115
|
15115
15115-47030
Cover, Oil Pump
[04.1972 - 07.1980] H..HJ45 |
15115-47030 |
— | ||
|
15121
|
15121
15121-47010
Gear, Oil Pump Drive
[04.1972 - 07.1980] H..HJ45 N=7 |
15121-47010 |
— | ||
|
15121A
|
15121A
90280-03009
Key, Oil Pump Drive Shaft
[03.1969 - 07.1980] F,2F..FJ4#,55; H..HJ45 |
90280-03009 |
— | ||
|
15122
|
15122
15122-47010
Gear, Oil Pump Driven
[04.1972 - 07.1980] H..HJ45 N=7 |
15122-47010 |
— | ||
|
15125
|
15125
15125-47010
Shaft, Oil Pump
[04.1972 - 07.1980] H..HJ45 |
15125-47010 |
— | ||
|
15131
|
15131
15131-22010 Valve, Oil Pump Relief[04.1972 - 07.1980] H..HJ45 |
15131-22010 |
from US $6.12 |
||
|
15132
|
15132
15132-46010
Spring, Oil Pump Relief Valve
[04.1972 - 07.1980] H..HJ45 |
15132-46010 |
— | ||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[09.1977 - 07.1980] H..HJ45; B..BJ4# |
15133-20010 |
US $6.56 |
||
|
15147
|
15147
15147-47010
Gasket, Oil Strainer
[04.1972 - 07.1980] H..HJ45 |
15147-47010 |
— | ||
|
15163
|
15163
15163-39410
Gear, Oil Pump Drive Shaft
[04.1972 - 07.1980] H..HJ45 N=13 |
15163-39410 |
— | ||
|
15163A
|
15163A
90250-05089 Pin, Straight(For Oil Pump Drive Shaft Gear)STRAIGHT(FOR OIL PUMP DRIVE SHAFT GEAR) [04.1972 - 07.1980] H..HJ45 L=21,OD=5 |
90250-05089 |
US $2.91 |
||
|
15705
|
15705
15707-47011
Pipe Sub-Assy, Oil, Injection Pump Inlet
[11.1978 - 07.1980] H..HJ45 |
15707-47011 |
— | ||
|
15705A
|
15705A
90401-10006 Bolt, Union(For Turbo Oil Inlet Pipe)[09.1977 - 07.1980] H..HJ45 |
90401-10006 |
from US $2.96 |
||
|
15705B
|
15705B
90430-10035 Gasket(For Water Hole)[09.1977 - 07.1980] H..HJ45 |
90430-10035 |
from US $1.05 |
||
| replacement | |||||
|
15705B
|
15705B
9008943009
Gasket V P Oil Inlet
[09.1977 - 07.1980] H..HJ45 |
9008943009 |
— | ||
|
9111170616
|
9111170616
91111-70616 New Genuine Part |
91111-70616 |
US $2.33 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.25 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.93 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
