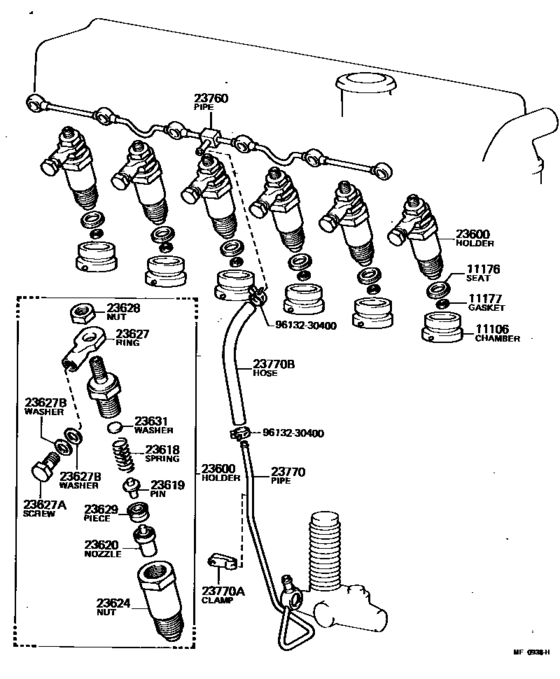

Injection Nozzle ([06.1973 - 07.1980] (7306-8007)H) Diagram Toyota LAND CRUISER
- Year
- 1979 - 1980
- Sales region
- Europe
- Frame
- HJ45
- body
- V
- ENGINE
- H
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 04.1979
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11106
|
11106
11106-48012 Chamber Sub-Assy, CombustionCOMBUSTION [01.1975 - 07.1980] H..HJ45 |
11106-48012 |
US $211.12 |
||
|
11176
|
11176
11176-56010 Seat, Injection Nozzle[06.1973 - 07.1980] B..BJ4#; H..HJ45 |
11176-56010 |
from US $2.85 |
||
|
11177
|
11177
11177-47010 Gasket, Injection Nozzle Seat[06.1973 - 07.1980] H..HJ45 |
11177-47010 |
US $8 |
||
|
23600
|
23600
23600-48011 Holder & Nozzle Set, Nozzle[01.1975 - 07.1980] H..HJ45 |
23600-48011 |
US $211.12 |
||
|
23618
|
23618
23618-56010
Spring, Nozzle Holder Pressure
[01.1975 - 07.1980] B..BJ4#; H..HJ45 |
23618-56010 |
— | ||
|
23619
|
23619
23619-46010
Pin, Nozzle Holder Pressure
[04.1972 - 07.1980] B..BJ4#; H..HJ45 |
23619-46010 |
— | ||
|
23620
|
23620
23620-76010
Nozzle Assy
[08.1977 - 07.1980] H..HJ45 |
23620-76010 |
— | ||
|
23624
|
23624
23624-47011
Nut, Nozzle Retaining
[04.1972 - 07.1980] B..BJ4#; H..HJ45 |
23624-47011 |
— | ||
|
23627
|
23627
23627-48010
Ring, Packing, No.1(For Nozzle)
[06.1973 - 07.1980] H..HJ45 |
23627-48010 |
— | ||
|
23627A
|
23627A
90099-18017
Screw, Follow(For Nozzle)
[06.1973 - 07.1980] H..HJ45 |
90099-18017 |
— | ||
|
23627B
|
23627B
90201-08106 Washer(For Cap Nut)[06.1973 - 07.1980] H..HJ45 |
90201-08106 |
from US $2.73 |
||
|
23628
|
23628
23628-46010
Nut(For Ring Packing Setting)
[04.1972 - 07.1980] B..BJ4#; H..HJ45 |
23628-46010 |
— | ||
|
23629
|
23629
23629-46010
Piece, Distance(For Nozzle)
[04.1972 - 07.1980] B..BJ4#; H..HJ45 |
23629-46010 |
— | ||
|
23631
|
23631
23631-46010 Washer(For Nozzle Holder Pressure Spring)[04.1972 - 07.1980] B..BJ4# T=1.000; H..HJ45 T=1.000 |
23631-46010 |
US $3.32 |
||
|
23631
|
23631
23632-46010 Washer(For Nozzle Holder Pressure Spring)[04.1972 - 07.1980] B..BJ4# T=1.050; H..HJ45 T=1.050 |
23632-46010 |
US $1.56 |
||
|
23631
|
23631
23633-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.100; H..HJ45 T=1.100 |
23633-46010 |
— | ||
|
23631
|
23631
23634-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.150; H..HJ45 T=1.150 |
23634-46010 |
— | ||
|
23631
|
23631
23635-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.200; H..HJ45 T=1.200 |
23635-46010 |
— | ||
|
23631
|
23631
23636-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.250; H..HJ45 T=1.250 |
23636-46010 |
— | ||
|
23631
|
23631
23637-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.300; H..HJ45 T=1.300 |
23637-46010 |
— | ||
|
23631
|
23631
23638-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.350; H..HJ45 T=1.350 |
23638-46010 |
— | ||
|
23631
|
23631
23639-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.400; H..HJ45 T=1.400 |
23639-46010 |
— | ||
|
23631
|
23631
23641-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.450; H..HJ45 T=1.450 |
23641-46010 |
— | ||
|
23631
|
23631
23642-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.500; H..HJ45 T=1.500 |
23642-46010 |
— | ||
|
23631
|
23631
23643-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.550; H..HJ45 T=1.550 |
23643-46010 |
— | ||
|
23631
|
23631
23644-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.600; H..HJ45 T=1.600 |
23644-46010 |
— | ||
|
23631
|
23631
23645-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.650; H..HJ45 T=1.650 |
23645-46010 |
— | ||
|
23631
|
23631
23646-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.700; H..HJ45 T=1.700 |
23646-46010 |
— | ||
|
23631
|
23631
23647-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.750; H..HJ45 T=1.750 |
23647-46010 |
— | ||
|
23631
|
23631
23648-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.800; H..HJ45 T=1.800 |
23648-46010 |
— | ||
|
23631
|
23631
23649-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.850; H..HJ45 T=1.850 |
23649-46010 |
— | ||
|
23631
|
23631
23651-46010
Washer(For Nozzle Holder Pressure Spring)
[04.1972 - 07.1980] B..BJ4# T=1.900; H..HJ45 T=1.900 |
23651-46010 |
— | ||
|
23631
|
23631
23652-46010 Washer(For Nozzle Holder Pressure Spring)[04.1972 - 07.1980] B..BJ4# T=1.950; H..HJ45 T=1.950 |
23652-46010 |
US $1.56 |
||
|
23760
|
23760
23760-47011
Pipe Assy, Nozzle Leakage
[06.1973 - 07.1980] H..HJ45 |
23760-47011 |
— | ||
|
23770
|
23770
23770-47040
Pipe Assy, Nozzle Leakage, No.2
[09.1977 - 07.1980] H..HJ45 |
23770-47040 |
— | ||
|
23770A
|
23770A
90461-08300 Clamp Or Clip(For Nozzle Leakage Pipe Set)[08.1977 - 07.1980] H..HJ45 |
90461-08300 |
US $2.33 |
||
|
23770B
|
23770B
95311-04018
Hose, Fuel
[06.1973 - 07.1980] H..HJ45 |
95311-04018 |
— | ||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.62 |
||
