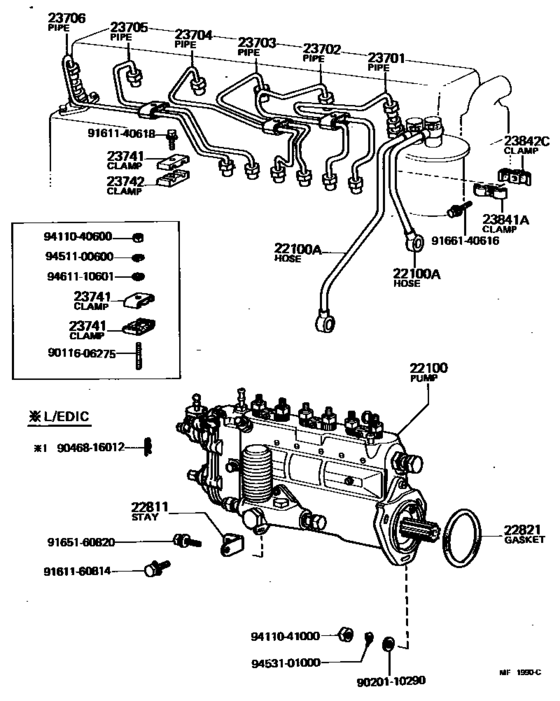

Injection Pump Assembly ([09.1977 - 07.1980] (7709-8007)H) Diagram Toyota LAND CRUISER
- Year
- 1979 - 1980
- Sales region
- Europe
- Frame
- HJ45
- body
- V
- ENGINE
- H
- DESTINATION
- GEN
- Model
- LAND CRUISER 40
- From
- 04.1979
- To
- 07.1980
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
- Roll Bar
- WORB
- Top,back Door
- VKC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-47180
Pump Assy, Injection Or Supply
[11.1978 - 07.1980] H..HJ45 |
22100-47180 |
— | ||
|
22100
|
22100
22100-47190
Pump Assy, Injection Or Supply
[11.1978 - 07.1980] H..HJ45 W/HAC |
22100-47190 |
— | ||
|
22100
|
22100
22100-47200
Pump Assy, Injection Or Supply
[11.1978 - 07.1980] H..HJ45 W/EDIC |
22100-47200 |
— | ||
|
22100
|
22100
22100-47210
Pump Assy, Injection Or Supply
[11.1978 - 07.1980] H..HJ45 W/EDIC & HAC |
22100-47210 |
— | ||
|
22100A
|
22100A
23801-47020
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[06.1973 - 07.1980] H..HJ45 FEED PUMP |
23801-47020 |
— | ||
|
22100A
|
22100A
23802-47020
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[06.1973 - 07.1980] H..HJ45 INJECTION PUMP |
23802-47020 |
— | ||
|
22811
|
22811
22811-47011
Stay, Injection Pump, No.1
[09.1977 - 07.1980] H..HJ45 |
22811-47011 |
— | ||
|
22821
|
22821
90301-77001
Gasket, Injection Pump
[11.1978 - 07.1980] B..BJ4#; H..HJ45 |
90301-77001 |
— | ||
|
23701
|
23701
23701-47012
Pipe Sub-Assy, Injection, No.1
[06.1973 - 07.1980] H..HJ45 |
23701-47012 |
— | ||
|
23702
|
23702
23702-47012
Pipe Sub-Assy, Injection, No.2
[06.1973 - 07.1980] H..HJ45 |
23702-47012 |
— | ||
|
23703
|
23703
23703-47012
Pipe Sub-Assy, Injection, No.3
[06.1973 - 07.1980] H..HJ45 |
23703-47012 |
— | ||
|
23704
|
23704
23704-47012
Pipe Sub-Assy, Injection, No.4
[06.1973 - 07.1980] H..HJ45 |
23704-47012 |
— | ||
|
23705
|
23705
23705-47012
Pipe Sub-Assy, Injection, No.5
[06.1973 - 07.1980] H..HJ45 |
23705-47012 |
— | ||
|
23706
|
23706
23706-47012
Pipe Sub-Assy, Injection, No.6
[06.1973 - 07.1980] H..HJ45 |
23706-47012 |
— | ||
|
23741
|
23741
23741-46010
Clamp, Injection Pipe, No.1
[04.1972 - 07.1980] H..HJ45 2WAY |
23741-46010 |
— | ||
|
23741
|
23741
23741-56010 Clamp, Injection Pipe, No.1[09.1977 - 07.1980] H..HJ45; B..BJ4# |
23741-56010 |
from US $6.49 |
||
|
23742
|
23742
23742-46010
Clamp, Injection Pipe, No.2
[04.1972 - 07.1980] H..HJ45 2WAY |
23742-46010 |
— | ||
|
23841A
|
23841A
23841-56010
Clamp, Fuel Hose, No.1
[09.1977 - 07.1980] H..HJ45 |
23841-56010 |
— | ||
|
23842C
|
23842C
23842-56010
Clamp, Fuel Hose, No.2
[09.1977 - 07.1980] H..HJ45 |
23842-56010 |
— | ||
|
9011606275
|
9011606275
90116-06275
Bolt, Stud(For Injection Pipe Clamp)
|
90116-06275 |
— | ||
| replacement | |||||
|
9011606275
|
9011606275
90116-06095 Bolt, Stud(For Head To Cylinder Head Cover) |
90116-06095 |
US $1.44 |
||
|
9020110290
|
9020110290
90201-10290 Washer, No.1 (For Propeller Shaft & Differential Setting)PLATE(FOR CYLINDER HEAD SET) |
90201-10290 |
US $2.91 |
||
| replacement | |||||
|
9020110290
|
9020110290
90201-11013 Washer, No.1 (For Propeller Shaft & Differential Setting) |
90201-11013 |
from US $0.72 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.94 |
||
|
9161140618
|
9161140618
91611-40618
Bolt(For Oil Receiver Pipe)
|
91611-40618 |
— | ||
| replacement | |||||
|
9161140618
|
9161140618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $1.92 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.28 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9461110601
|
9461110601
94611-10601 WASHER |
94611-10601 |
from US $0.52 |
||
