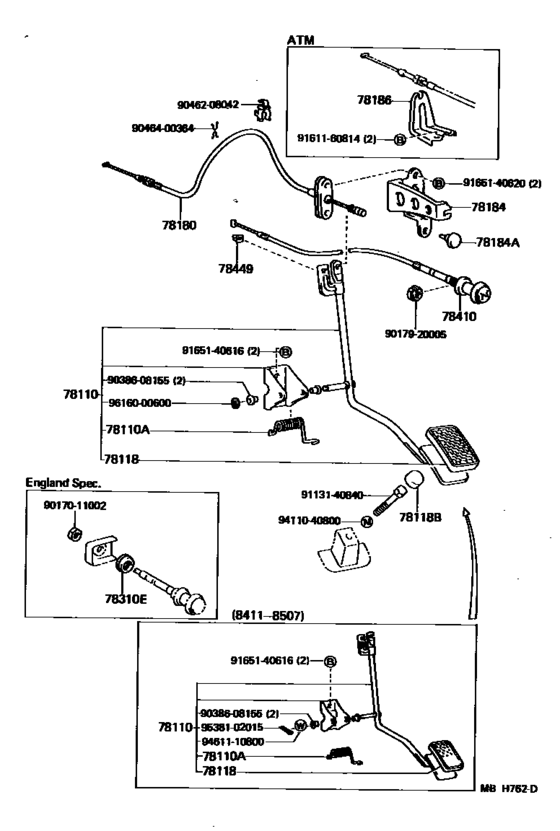

Accelerator Link ([11.1984 - ] (8411- )HJ60..RHD) Diagram Toyota LAND CRUISER
- Year
- 1980 - 1987
- Sales region
- General
- Frame
- HJ60
- body
- WGG
- Roof
- SRF
- ENGINE
- 2H
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- LAND CRUISER 60
- From
- 08.1980
- To
- 08.1987
- Gear Shift Type
- 4F
- Vehicle Model
- Land Cruiser
- Back Door
- LUB
- Driver's Position
- RHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78120-90A01
Rod Assy, Accelerator Pedal
[08.1980 - 11.1984] BJ60,FJ60,HJ60..RHD W/THROTTLE BUTTON |
78120-90A01 |
— | ||
|
78110
|
78110
78120-90A05 Rod Assy, Accelerator Pedal[11.1984 - 08.1987] BJ60,FJ62,HJ6#..RHD W/THROTTLE BUTTON |
78120-90A05 |
US $132.50 |
||
|
78110A
|
78110A
90508-26046
Spring (For Accelerator Pedal Rod)
[11.1984 - 08.1987] BJ60,FJ62,HJ60..RHD |
90508-26046 |
— | ||
|
78118
|
78118
78111-95110 Pedal, Accelerator[08.1980 - 08.1987] BJ60,FJ6#,HJ6# |
78111-95110 |
from US $7.52 |
||
|
78118B
|
78118B
78118-90K00
Stopper, Accelerator Pedal
[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
78118-90K00 |
— | ||
| replacement | |||||
|
78118B
|
78118B
45619-14010 Cover, Knuckle Stopper[11.1984 - 08.1987] BJ60,FJ62,HJ6# |
45619-14010 |
US $8.64 |
||
|
78180
|
78180
78180-90A01 Wire Assy, AcceleratorACCELERATOR [08.1980 - 05.1982] HJ60..RHD |
78180-90A01 |
US $48.34 |
||
|
78180
|
78180
78180-90A05
Wire Assy, Accelerator
[05.1982 - 08.1984] HJ60..RHD |
78180-90A05 |
— | ||
| replacement | |||||
|
78180
|
78180
78180-90A20
Wire Assy, Accelerator
[05.1982 - 08.1984] HJ60..RHD |
78180-90A20 |
— | ||
|
78180
|
78180
78180-90A19 Wire Assy, AcceleratorACCELERATOR [11.1984 - 04.1987] HJ60..RHD..MTM |
78180-90A19 |
US $45.43 |
||
| replacement | |||||
|
78180
|
78180
78180-90A27
Wire Assy, Accelerator
[11.1984 - 04.1987] HJ60..RHD..MTM |
78180-90A27 |
— | ||
|
78180
|
78180
78180-90A20
Wire Assy, Accelerator
[08.1984 - 11.1984] HJ60..RHD |
78180-90A20 |
— | ||
|
78180
|
78180
78180-90A27
Wire Assy, Accelerator
[04.1987 - 08.1987] HJ60..RHD..SRF |
78180-90A27 |
— | ||
|
78184
|
78184
78184-90A00
Channel, Accelerator Idle Adjusting Stopper
[08.1980 - 11.1984] BJ60,FJ60,HJ60..RHD |
78184-90A00 |
— | ||
|
78184
|
78184
78184-90A01 Channel, Accelerator Idle Adjusting Stopper[11.1984 - 10.1985] BJ60,FJ62,HJ60..RHD |
78184-90A01 |
US $29.27 |
||
|
78184A
|
78184A
90541-06008 Cushion, No.1(For Clutch Pedal)[08.1980 - 08.1987] BJ60,FJ6#,HJ6#..RHD |
90541-06008 |
from US $1.60 |
||
|
78410
|
78410
78410-90A00
Cable Assy, Throttle Control
[08.1980 - 11.1984] BJ60,FJ60,HJ60..RHD..(EUR,GEN) |
78410-90A00 |
— | ||
| replacement | |||||
|
78410
|
78410
78410-90A09
Cable Assy, Throttle Control
[08.1980 - 11.1984] BJ60,FJ60,HJ60..RHD..(EUR,GEN) |
78410-90A09 |
— | ||
|
78449
|
78449
78449-90300
Guide, Throttle Wire
[08.1980 - 07.1985] BJ60,FJ6#,HJ60 |
78449-90300 |
— | ||
|
9017011002
|
9017011002
90170-11002
Nut, Choke
|
90170-11002 |
— | ||
|
9017920005
|
9017920005
90179-20005
New Genuine Part
|
90179-20005 |
— | ||
|
9038608155
|
9038608155
90386-08155 Bush (For Accelerator Pedal Rod) |
90386-08155 |
US $1.14 |
||
|
9046208042
|
9046208042
90462-08042
Clamp, Cord
|
90462-08042 |
— | ||
| replacement | |||||
|
9046208042
|
9046208042
19242-15120
Clamp, Cord
|
19242-15120 |
— | ||
|
9046400364
|
9046400364
90464-00364 New Genuine Part |
90464-00364 |
US $5.39 |
||
|
9113140840
|
9113140840
91131-40840
Bolt, Accelerator Pedal Stopper
|
91131-40840 |
— | ||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.80 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
|
9165140620
|
9165140620
91651-40620 BOLT |
91651-40620 |
US $1.12 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.96 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.60 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
