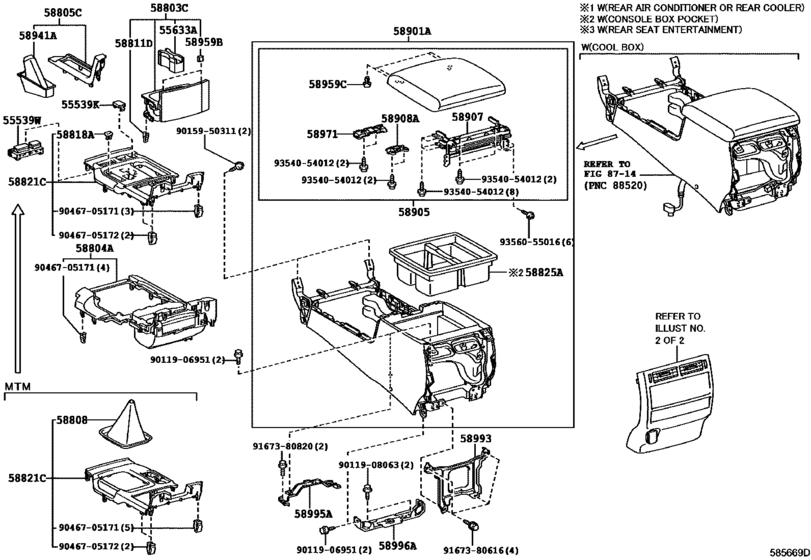

Console Box & Bracket ([08.2015 - ] W(CONSOLE BOX) (1508- )LHD..LUB) Diagram Toyota LAND CRUISER
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- URJ200
- grade
- VX
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LAND CRUISER 200
- From
- 08.2015
- Gear Shift Type
- 8FC
- Seating Capacity
- 08S
- Vehicle Model
- Land Cruiser
- Model Mark
- G
- Back Door
- LUB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539K
|
55539K
55539-52060-C0 Cover, Spare Switch Hole[08.2015 - 01.2017] GRJ200,URJ20#,VDJ200..LUB BLACK; VDJ200..5F..GCC..LUB AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER,BLACK |
55539-52060-C0 |
from US $3.53 |
||
|
55539K
|
55539K
55539-52060-C4 Cover, Spare Switch Hole[01.2017 - 08.2017] GRJ200,URJ20#,VDJ200..(05S,08S)..(5F,6FC,8FC)..LUB BLACK; VDJ200..5F..GCC..LUB AUDIO(FOR OVERSEAS MARKET)-*DA & 6SPEAKER,BLACK |
55539-52060-C4 |
US $3.52 |
||
|
55539W
|
55539W
55539-60260
Cover, Spare Switch Hole
[08.2015 -] URJ20#,VDJ200..LHD..(05S,08S)..ATM; URJ202,VDJ200..LHD..(VX,VXR)..GEN STEERING WHEEL-LEATHER & WOOD LIKE,W(HEATER); URJ202,VDJ200..LHD..VX..GEN STEERING WHEEL-LEATHER & WOOD LIKE,W(HEATER)&HEATER-4SEAT INDEPENDENT CONTROL&FRON T SEAT-POWER(*DR |
55539-60260 |
— | ||
|
55633A
|
55633A
55633-60040 Support, Instrument Panel Cup Holder, No.1[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN) |
55633-60040 |
from US $23.26 |
||
|
58803C
|
58803C
58803-60310-A0 Box Sub-Assy, Console Cup Holder[08.2015 - 08.2017] URJ20#,VDJ200..LHD..(VX,VXR) FLAXEN,TRIM0# |
58803-60310-A0 |
US $212.65 |
||
|
58803C
|
58803C
58803-60310-C0
Box Sub-Assy, Console Cup Holder
[08.2015 - 08.2017] URJ20#,VDJ200..LHD..(VX,VXR) BLACK,TRIM1#,2#,4# |
58803-60310-C0 |
— | ||
|
58804A
|
58804A
58804-60G80-A3
Panel Sub-Assy, Console, Upper
[08.2015 - 02.2016] GRJ200,URJ20#,VDJ200..LHD..LUB FLAXEN,TRIM0# |
58804-60G80-A3 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-60G81-A3 Panel Sub-Assy, Console, Upper[08.2015 - 02.2016] GRJ200,URJ20#,VDJ200..LHD..LUB FLAXEN,TRIM0# |
58804-60G81-A3 |
US $110.02 |
||
|
58804A
|
58804A
58804-60G80-C2
Panel Sub-Assy, Console, Upper
[08.2015 - 02.2016] URJ20#..LHD;GRJ200,VDJ200..08S..GCC;VDJ200..LHD..(VX,VXR)..GEN BLACK,TRIM1#,2#,4#; GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..LHD..GXR..GEN BLACK,TRIM1# |
58804-60G80-C2 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-60G81-C2 Panel Sub-Assy, Console, Upper[08.2015 - 02.2016] URJ20#..LHD;GRJ200,VDJ200..08S..GCC;VDJ200..LHD..(VX,VXR)..GEN BLACK,TRIM1#,2#,4#; GRJ200,VDJ200..GX..LUB;GRJ200,VDJ200..LHD..GXR..GEN BLACK,TRIM1# |
58804-60G81-C2 |
US $100.85 |
||
|
58804A
|
58804A
58804-60G81-A3 Panel Sub-Assy, Console, Upper[03.2016 - 08.2017] GRJ200,URJ20#,VDJ200..LHD..(05S,08S)..(5F,6FC,8FC)..LUB FLAXEN,TRIM0# |
58804-60G81-A3 |
US $110.02 |
||
|
58804A
|
58804A
58804-60G81-C2 Panel Sub-Assy, Console, Upper[03.2016 - 08.2017] URJ20#..LHD;VDJ200..LHD..(VX,VXR)..GEN;GRJ200,VDJ200..08S..(5F,6FC)..GCC BLACK,TRIM1#,2#,4# |
58804-60G81-C2 |
US $100.85 |
||
|
58805C
|
58805C
58805-60300-A1 Panel Sub-Assy, Console, Upper Rear[08.2015 - 08.2017] GRJ200,URJ20#,VDJ200..LHD..(05S,08S)..(5F,6FC,8FC)..LUB FLAXEN,TRIM0# |
58805-60300-A1 |
US $18.95 |
||
|
58805C
|
58805C
58805-60300-C0 Panel Sub-Assy, Console, Upper Rear[08.2015 - 08.2017] URJ20#..LHD;VDJ200..LHD..(VX,VXR)..GEN;GRJ200,VDJ200..08S..(5F,6FC)..GCC BLACK,TRIM1#,2#,4# |
58805-60300-C0 |
US $132.54 |
||
|
58811D
|
58811D
90467-05171 Clip, Instrument Panel[08.2015 -] GRJ200,URJ20#,VDJ200..(05S,08S)..(5F,6FC,8FC)..LUB |
90467-05171 |
from US $0.66 |
||
|
58818A
|
58818A
58818-60090 Cover, Console Box, Fr[08.2015 -] URJ20#,VDJ200..LHD..(05S,08S)..ATM |
58818-60090 |
US $1.07 |
||
|
58821C
|
58821C
58821-60580-A0 Panel, Console, Upper[08.2015 - 08.2017] URJ20#,VDJ200..LHD..(VX,VXR) FLAXEN,TRIM0# |
58821-60580-A0 |
US $178.93 |
||
|
58821C
|
58821C
58821-60580-C0
Panel, Console, Upper
[08.2015 - 08.2017] URJ20#,VDJ200..LHD..(VX,VXR) BLACK,TRIM1#,2#,4# |
58821-60580-C0 |
— | ||
|
58825A
|
58825A
58806-60080 Pocket Sub-Assy, Console Box[08.2015 -] URJ202..VX..ARL;URJ20#,VDJ200..VXR; URJ202..LHD..VX;URJ200,VDJ200..VX SEAT COVER MATERIAL-NATURAL LEATHER |
58806-60080 |
US $83.52 |
||
|
58901A
|
58901A
58901-60741-A3
Box Sub-Assy, Console, Rear
[08.2015 - 08.2017] URJ20#,VDJ200..LHD..VX SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0# |
58901-60741-A3 |
— | ||
|
58901A
|
58901A
58901-60741-C3
Box Sub-Assy, Console, Rear
[08.2015 - 08.2017] URJ20#,VDJ200..LHD..VX SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4# |
58901-60741-C3 |
— | ||
|
58901A
|
58901A
58901-60860-A1 Box Sub-Assy, Console, Rear[08.2015 - 08.2017] GRJ200,URJ20#,VDJ200..LHD..(05S,08S)..(5F,6FC,8FC)..(GX,GXR,VX)..LUB FLAXEN,TRIM0#; URJ20#,VDJ200..LHD..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN,TRIM0# |
58901-60860-A1 |
US $1,194.39 |
||
|
58901A
|
58901A
58901-60860-C1
Box Sub-Assy, Console, Rear
[08.2015 - 08.2017] URJ20#,VDJ200..LHD..VX BLACK,TRIM1#,4#; GRJ200,URJ202,VDJ200..(5F,6FC)..GXR..GCC BLACK,TRIM1#,2#,4#; URJ20#,VDJ200..LHD..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,4# |
58901-60860-C1 |
— | ||
|
58905
|
58905
58905-60430-A5 Door Sub-Assy, Console Compartment[08.2015 - 08.2017] URJ202..VX..ARL FLAXEN,TRIM0#; URJ202..LHD..VX;URJ200,VDJ200..VX SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0# |
58905-60430-A5 |
US $564.93 |
||
|
58905
|
58905
58905-60430-C5 Door Sub-Assy, Console Compartment[08.2015 - 08.2017] URJ202..VX..ARL BLACK,TRIM2#,4#; URJ202..LHD..VX;URJ200,VDJ200..VX SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4# |
58905-60430-C5 |
US $604.53 |
||
|
58905
|
58905
58905-60610-A0 Door Sub-Assy, Console Compartment[08.2015 - 08.2017] URJ202..GXR;URJ202..LHD..VX;VDJ200..09S..GCC..SOB;GRJ200,URJ200,VDJ200..(05S,08S). .(5F,6FC,8FC)..(GX,GXR,VX)..LUB FLAXEN/FLAXEN,TRIM0#; URJ20#,VDJ200..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN/FLAXEN,TRIM0# |
58905-60610-A0 |
US $382.93 |
||
|
58905
|
58905
58905-60610-C0 Door Sub-Assy, Console Compartment[08.2015 - 08.2017] URJ202..LHD..VX;URJ200,VDJ200..VX BLACK/BLACK,TRIM1#,4#; GRJ200,URJ202,VDJ200..(5F,6FC)..GXR..(ARL,GCC) BLACK/BLACK,TRIM1#,2#,4#; URJ20#,VDJ200..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK/BLACK,TRIM1#,4# |
58905-60610-C0 |
US $382.93 |
||
|
58907
|
58907
58907-60060 Hinge Sub-Assy, Console Compartment Door[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN) |
58907-60060 |
US $70.59 |
||
|
58908A
|
58908A
58908-60040 Lock Sub-Assy, Console Compartment Door[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN) |
58908-60040 |
from US $16.77 |
||
|
58941A
|
58941A
58809-60110-A0
Cover, Parking Brake Hole
[08.2015 - 08.2017] GRJ200,URJ20#,VDJ200..LHD..(05S,08S)..(5F,6FC,8FC)..LUB FLAXEN,TRIM0# |
58809-60110-A0 |
— | ||
|
58941A
|
58941A
58809-60110-C0
Cover, Parking Brake Hole
[08.2015 - 08.2017] URJ20#..LHD;VDJ200..LHD..(VX,VXR)..GEN;GRJ200,VDJ200..08S..(5F,6FC)..GCC BLACK,TRIM1#,2#,4# |
58809-60110-C0 |
— | ||
|
58959B
|
58959B
58959-60030 Cushion, Console Compartment Door[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN) |
58959-60030 |
US $1.56 |
||
|
58959C
|
58959C
58959-60060 Cushion, Instrument Panel[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN) |
58959-60060 |
from US $1.44 |
||
|
58971
|
58971
58971-60060 Lock, Console Compartment Door[08.2015 -] URJ202..VX..ARL;URJ20#,VDJ200..VXR; URJ202..LHD..VX;URJ200,VDJ200..VX SEAT COVER MATERIAL-NATURAL LEATHER |
58971-60060 |
US $28.10 |
||
|
58971
|
58971
58971-60080-A0 Lock, Console Compartment Door[08.2015 - 08.2017] URJ202..GXR;URJ202..LHD..VX;VDJ200..09S..GCC..SOB;GRJ200,URJ200,VDJ200..(05S,08S). .(5F,6FC,8FC)..(GX,GXR,VX)..LUB FLAXEN,TRIM0#; URJ20#,VDJ200..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN,TRIM0# |
58971-60080-A0 |
US $28.10 |
||
|
58971
|
58971
58971-60080-C0 Lock, Console Compartment Door[08.2015 - 08.2017] URJ202..LHD..VX;URJ200,VDJ200..VX BLACK,TRIM1#,4#; GRJ200,URJ202,VDJ200..(5F,6FC)..GXR..(ARL,GCC) BLACK,TRIM1#,2#,4#; URJ20#,VDJ200..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,4# |
58971-60080-C0 |
US $28.10 |
||
|
58993
|
58993
58993-60090 Bracket, Console Box Mounting, Rear[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN); VDJ200..09S..SOB;GRJ200,VDJ200..05S..GCC..SOB STD; VDJ200..09S..SOB REAR CONSOLE BOX-WITH |
58993-60090 |
US $19.04 |
||
| replacement | |||||
|
58993
|
58993
86719-60310 Bracket, Console Box Mounting, Rear[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN); VDJ200..09S..SOB;GRJ200,VDJ200..05S..GCC..SOB STD; VDJ200..09S..SOB REAR CONSOLE BOX-WITH |
86719-60310 |
US $29.88 |
||
|
58995A
|
58995A
58995-60070 Bracket, Console Box Mounting, No.1[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN) |
58995-60070 |
US $11.21 |
||
|
58996A
|
58996A
58996-60080 Bracket, Console Box Mounting, No.2[08.2015 -] URJ20#;GRJ200..GEN..LUB;VDJ200..08S..6FC..GCC;VDJ200..05S..(ARL,GCC);VDJ200..(08S, 09S)..5F..GCC;GRJ200..(05S,08S)..5F..GCC;VDJ200..(08S,09S)..(ARL,GEN) |
58996-60080 |
US $16.77 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.66 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.70 |
||
