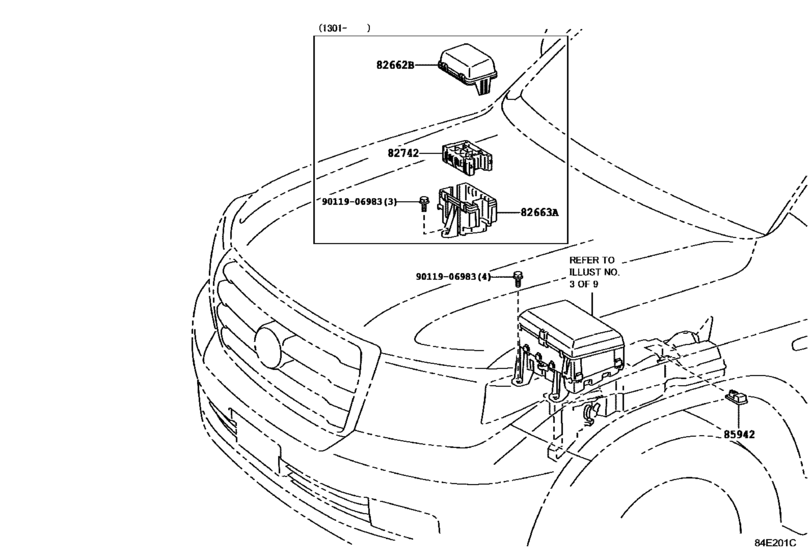

Switch & Relay & Computer ([09.2007 - ] ENGINE ROOM (0709- )) Diagram Toyota LAND CRUISER
- Year
- 2015 - 2018
- Sales region
- General
- Frame
- URJ200
- grade
- VX
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- DESTINATION
- GCC
- Model
- LAND CRUISER 200
- From
- 08.2015
- Gear Shift Type
- 8FC
- Seating Capacity
- 08S
- Vehicle Model
- Land Cruiser
- Model Mark
- G
- Back Door
- LUB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82662B
|
82662B
82662-60600 Cover, Relay Block, Upper, No.2[08.2015 -] GRJ200..GEN..LUB;VDJ200..LHD..09S..SOB;GRJ200..(05S,08S)..5F..GCC;URJ20#,VDJ200..L HD..(05S,08S) |
82662-60600 |
US $28.49 |
||
|
82663A
|
82663A
82663-60120 Cover, Relay Block, Lower, No.2[08.2015 -] GRJ200..GEN..LUB;VDJ200..LHD..09S..SOB;GRJ200..(05S,08S)..5F..GCC;URJ20#,VDJ200..L HD..(05S,08S) |
82663-60120 |
US $53.55 |
||
|
82742
|
82742
82742-60040 Block, Engine Room Relay, No.2[08.2015 -] GRJ200..GEN..LUB;VDJ200..LHD..09S..SOB;GRJ200..(05S,08S)..5F..GCC;URJ20#,VDJ200..L HD..(05S,08S) |
82742-60040 |
US $43.76 |
||
|
85942
|
85942
85942-30040 Relay, Cleaner Control[08.2015 -] URJ202..(VX,VXR)..GCC; URJ202..GXR..GCC;GRJ200,URJ200,VDJ200..08S..(5F,6FC,8FC)..GCC HEADLAMP CLEANER-WITH |
85942-30040 |
from US $52.62 |
||
|
85942
|
85942
90987-02027 Relay[08.2015 -] URJ202..VXR..GEN;URJ202..VX..(ARL,GEN);VDJ200..(VX,VXR)..(ARL,GEN); VDJ200..LHD..VX..GEN ELECTRICAL WINCH-WITH; URJ202..VXR..GCC WITH(AVS); URJ200,VDJ200..VXR..GCC WITH(AVS)&HEADLAMP CLEANER-WITH; URJ202..VX..GCC HEADLAMP LEVELING DEVICE-WITH( |
90987-02027 |
from US $33.62 |
||
|
9011906983
|
9011906983
90119-06983 New Genuine Part |
90119-06983 |
US $0.96 |
