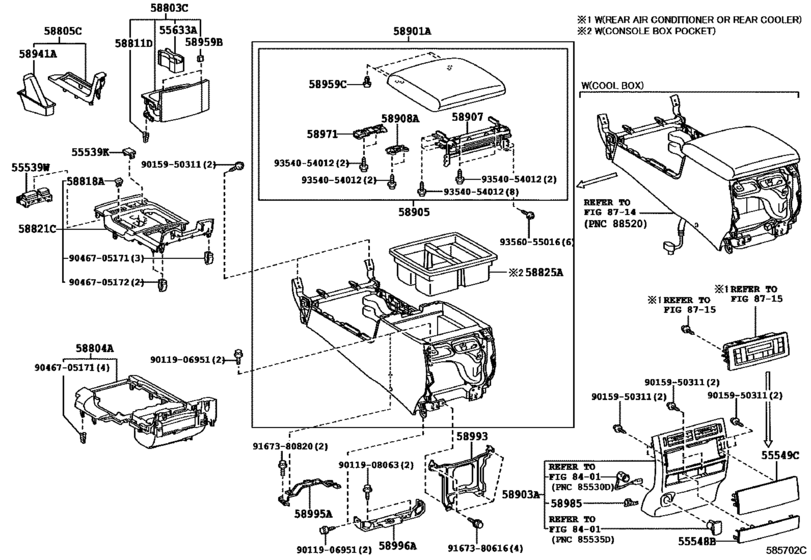

Console Box & Bracket ([08.2015 - ] (1508- )LHD) Diagram Toyota LAND CRUISER
- Year
- 2012 - 2018
- Sales region
- Europe
- Frame
- URJ202
- grade
- VX
- ENGINE
- 1URFE
- Model
- LAND CRUISER 200
- From
- 01.2012
- Seating Capacity
- 05S
- Vehicle Model
- Land Cruiser
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55539K
|
55539K
55539-52060-C0 Cover, Spare Switch Hole[08.2015 - 01.2017] URJ202,VDJ200..LHD BLACK |
55539-52060-C0 |
from US $3.53 |
||
|
55539K
|
55539K
55539-52060-C4 Cover, Spare Switch Hole[01.2017 - 08.2017] URJ202,VDJ200..LHD BLACK |
55539-52060-C4 |
US $3.52 |
||
|
55539W
|
55539W
55539-60260
Cover, Spare Switch Hole
[08.2015 -] VDJ200..05S;VDJ200..LHD..08S..VX; VDJ200..05S..VXR;VDJ200..LHD..08S..VX STEERING WHEEL-LEATHER & WOOD LIKE,W(HEATER); VDJ200..05S..VXR STEERING WHEEL-LEATHER & WOOD LIKE,W(HEATER)&HEATER-4SEAT INDEPENDENT CONTROL & VI SCUS; VDJ200..05S..VXR ST |
55539-60260 |
— | ||
|
55548B
|
55548B
55548-60050-A0 Cover, Instrument Panel Hole[01.2012 - 08.2015] URJ202,VDJ200 SHELL,TRIM0# |
55548-60050-A0 |
US $13.54 |
||
|
55548B
|
55548B
55548-60050-A1
Cover, Instrument Panel Hole
[08.2015 - 08.2017] VDJ200..RHD..VX;URJ202,VDJ200..LHD FLAXEN,TRIM0#; URJ202..VXR;VDJ200..RHD..VX;VDJ200..05S..VXR REAR SEAT ENTERTAINMENT-WITH,FLAXEN,TRIM0# |
55548-60050-A1 |
— | ||
|
55548B
|
55548B
55548-60050-C0 Cover, Instrument Panel Hole[01.2012 - 08.2015] VDJ200 BLACK,TRIM1#,2#; URJ202 BLACK,TRIM2# |
55548-60050-C0 |
US $13.10 |
||
|
55549C
|
55549C
55549-60040-A0
Cover, Rear Cooler Switch Hole
[01.2012 - 08.2015] URJ202,VDJ200..05S SHELL,TRIM0#; URJ202,VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),SHELL,TRIM0#; VDJ200..08S REAR NO.2 SEAT-WITHOUT,SHELL,TRIM0# |
55549-60040-A0 |
— | ||
|
55549C
|
55549C
55549-60040-A1 Cover, Rear Cooler Switch Hole[08.2015 - 03.2017] URJ202,VDJ200..05S FLAXEN,TRIM0#; URJ202,VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),FLAXEN,TRIM0#; VDJ200..LHD..08S REAR NO.2 SEAT-WITHOUT,FLAXEN,TRIM0# |
55549-60040-A1 |
US $21.99 |
||
|
55549C
|
55549C
55549-60040-C0
Cover, Rear Cooler Switch Hole
[01.2012 - 08.2015] VDJ200..05S BLACK,TRIM1#,2#; URJ202..05S BLACK,TRIM2#; VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM1#,2#; URJ202..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM2#; VDJ200..08S REAR NO.2 SEAT-WI |
55549-60040-C0 |
— | ||
|
55549C
|
55549C
55549-60041-A1
Cover, Rear Cooler Switch Hole
[04.2017 - 08.2017] URJ202,VDJ200..05S FLAXEN,TRIM0#; URJ202,VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),FLAXEN,TRIM0#; VDJ200..LHD..08S REAR NO.2 SEAT-WITHOUT,FLAXEN,TRIM0# |
55549-60041-A1 |
— | ||
|
55549C
|
55549C
55549-60041-C0 Cover, Rear Cooler Switch Hole[04.2017 - 08.2017] URJ202,VDJ200..05S BLACK,TRIM1#,2#,4#; URJ202,VDJ200..05S AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL),BLACK,TRIM1#,2#,4#; VDJ200..LHD..08S REAR NO.2 SEAT-WITHOUT,BLACK,TRIM1#,4# |
55549-60041-C0 |
US $20.60 |
||
|
55633A
|
55633A
55633-60040 Support, Instrument Panel Cup Holder, No.1[01.2012 - 08.2015] URJ202,VDJ200 |
55633-60040 |
from US $23.26 |
||
|
58803C
|
58803C
58803-60030-A1 Box Sub-Assy, Console Cup Holder[01.2012 - 08.2015] URJ202,VDJ200..LHD SHELL,TRIM0#,W(WOOD GRAIN) |
58803-60030-A1 |
US $272.14 |
||
|
58803C
|
58803C
58803-60030-C1
Box Sub-Assy, Console Cup Holder
[01.2012 - 08.2015] VDJ200..LHD BLACK,TRIM1#,2#,W(WOOD GRAIN); URJ202..LHD BLACK,TRIM2#,W(WOOD GRAIN) |
58803-60030-C1 |
— | ||
|
58803C
|
58803C
58803-60310-A0 Box Sub-Assy, Console Cup Holder[08.2015 - 08.2017] URJ202,VDJ200..LHD FLAXEN,TRIM0# |
58803-60310-A0 |
US $212.65 |
||
|
58803C
|
58803C
58803-60310-C0
Box Sub-Assy, Console Cup Holder
[08.2015 - 08.2017] URJ202..08S..VX BLACK,TRIM2#,4#; VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
58803-60310-C0 |
— | ||
|
58804A
|
58804A
58804-60A30-A1
Panel Sub-Assy, Console, Upper
[01.2012 - 08.2015] URJ202..05S;VDJ200..LHD SHELL,TRIM0#,W(WOOD GRAIN); URJ202..LHD..08S AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER,SHELL,TRIM0#,W(WOOD GRA IN); URJ202..LHD..08S AUDIO(FOR OVERSEAS MARKET)-CD-CHANGER + AM/FM + *BT 9SPEAKER, |
58804-60A30-A1 |
— | ||
|
58804A
|
58804A
58804-60A30-C1
Panel Sub-Assy, Console, Upper
[01.2012 - 08.2015] VDJ200..LHD BLACK,TRIM1#,2#,W(WOOD GRAIN); URJ202..05S BLACK,TRIM2#,W(WOOD GRAIN); URJ202..LHD..08S AUDIO(FOR OVERSEAS MARKET)-EMV + DVD + AM/FM JBL 14SPEAKER,BLACK,TRIM2#,W(WOOD GRA IN); URJ202..LHD..08S AUDIO(FOR OVERSEAS MARKET)-CD- |
58804-60A30-C1 |
— | ||
|
58804A
|
58804A
58804-60G80-A3
Panel Sub-Assy, Console, Upper
[08.2015 - 02.2016] URJ202,VDJ200..LHD FLAXEN,TRIM0# |
58804-60G80-A3 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-60G81-A3 Panel Sub-Assy, Console, Upper[08.2015 - 02.2016] URJ202,VDJ200..LHD FLAXEN,TRIM0# |
58804-60G81-A3 |
US $110.02 |
||
|
58804A
|
58804A
58804-60G80-C2
Panel Sub-Assy, Console, Upper
[08.2015 - 02.2016] URJ202..08S..VX BLACK,TRIM2#,4#; VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
58804-60G80-C2 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-60G81-C2 Panel Sub-Assy, Console, Upper[08.2015 - 02.2016] URJ202..08S..VX BLACK,TRIM2#,4#; VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
58804-60G81-C2 |
US $100.85 |
||
|
58804A
|
58804A
58804-60G81-A3 Panel Sub-Assy, Console, Upper[03.2016 - 08.2017] URJ202,VDJ200..LHD FLAXEN,TRIM0# |
58804-60G81-A3 |
US $110.02 |
||
|
58804A
|
58804A
58804-60G81-C2 Panel Sub-Assy, Console, Upper[03.2016 - 08.2017] URJ202..08S..VX BLACK,TRIM2#,4#; VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
58804-60G81-C2 |
US $100.85 |
||
|
58805C
|
58805C
58805-60050-A0
Panel Sub-Assy, Console, Upper Rear
[01.2012 - 08.2015] URJ202,VDJ200..LHD SHELL,TRIM0#,W(WOOD GRAIN) |
58805-60050-A0 |
— | ||
|
58805C
|
58805C
58805-60050-C0
Panel Sub-Assy, Console, Upper Rear
[01.2012 - 08.2015] VDJ200..LHD BLACK,TRIM1#,2#,W(WOOD GRAIN); URJ202..LHD BLACK,TRIM2#,W(WOOD GRAIN) |
58805-60050-C0 |
— | ||
|
58805C
|
58805C
58805-60300-A1 Panel Sub-Assy, Console, Upper Rear[08.2015 - 08.2017] URJ202,VDJ200..LHD FLAXEN,TRIM0# |
58805-60300-A1 |
US $18.95 |
||
|
58805C
|
58805C
58805-60300-C0 Panel Sub-Assy, Console, Upper Rear[08.2015 - 08.2017] URJ202..08S..VX BLACK,TRIM2#,4#; VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
58805-60300-C0 |
US $132.54 |
||
|
58811D
|
58811D
90467-05171 Clip, Instrument Panel[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
90467-05171 |
from US $0.66 |
||
|
58818A
|
58818A
58818-60090 Cover, Console Box, Fr[08.2015 -] URJ202,VDJ200..LHD |
58818-60090 |
US $1.07 |
||
|
58821C
|
58821C
58821-60580-A0 Panel, Console, Upper[08.2015 - 08.2017] URJ202,VDJ200..LHD FLAXEN,TRIM0# |
58821-60580-A0 |
US $178.93 |
||
|
58821C
|
58821C
58821-60580-C0
Panel, Console, Upper
[08.2015 - 08.2017] URJ202..08S..VX BLACK,TRIM2#,4#; VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
58821-60580-C0 |
— | ||
|
58825A
|
58825A
58806-60080 Pocket Sub-Assy, Console Box[01.2012 - 08.2015] VDJ200;URJ202..LHD |
58806-60080 |
US $83.52 |
||
|
58901A
|
58901A
58901-60740-A1
Box Sub-Assy, Console, Rear
[01.2012 - 11.2014] URJ202..LHD SHELL,TRIM0#; VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0# |
58901-60740-A1 |
— | ||
| replacement | |||||
|
58901A
|
58901A
58901-60741-A1
Box Sub-Assy, Console, Rear
[01.2012 - 11.2014] URJ202..LHD SHELL,TRIM0#; VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0# |
58901-60741-A1 |
— | ||
|
58901A
|
58901A
58901-60740-C1
Box Sub-Assy, Console, Rear
[01.2012 - 11.2014] URJ202..LHD BLACK,TRIM2#; VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
58901-60740-C1 |
— | ||
| replacement | |||||
|
58901A
|
58901A
58901-60741-C1
Box Sub-Assy, Console, Rear
[01.2012 - 11.2014] URJ202..LHD BLACK,TRIM2#; VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
58901-60741-C1 |
— | ||
|
58901A
|
58901A
58901-60741-A1
Box Sub-Assy, Console, Rear
[12.2014 - 08.2015] URJ202..LHD SHELL,TRIM0#; VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0# |
58901-60741-A1 |
— | ||
|
58901A
|
58901A
58901-60741-A3
Box Sub-Assy, Console, Rear
[08.2015 - 08.2017] URJ202..VX FLAXEN,TRIM0#; VDJ200..LHD..VX SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0# |
58901-60741-A3 |
— | ||
|
58901A
|
58901A
58901-60741-C1
Box Sub-Assy, Console, Rear
[12.2014 - 08.2015] URJ202..LHD BLACK,TRIM2#; VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
58901-60741-C1 |
— | ||
|
58901A
|
58901A
58901-60741-C3
Box Sub-Assy, Console, Rear
[08.2015 - 08.2017] URJ202..VX BLACK,TRIM2#,4#; VDJ200..LHD..VX SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4# |
58901-60741-C3 |
— | ||
|
58901A
|
58901A
58901-60860-A1 Box Sub-Assy, Console, Rear[08.2015 - 08.2017] VDJ200..LHD..VX FLAXEN,TRIM0#; URJ202..05S;URJ202,VDJ200..LHD..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN,TRIM0# |
58901-60860-A1 |
US $1,194.39 |
||
|
58901A
|
58901A
58901-60860-C1
Box Sub-Assy, Console, Rear
[08.2015 - 08.2017] VDJ200..LHD..VX BLACK,TRIM1#,4#; URJ202..05S;URJ202,VDJ200..LHD..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,4# |
58901-60860-C1 |
— | ||
|
58903A
|
58903A
58903-60350-A0 Panel Sub-Assy, Console Rear End[01.2012 - 08.2015] URJ202,VDJ200 SHELL,TRIM0# |
58903-60350-A0 |
US $136.86 |
||
|
58903A
|
58903A
58903-60350-C0 Panel Sub-Assy, Console Rear End[01.2012 - 08.2015] VDJ200 BLACK,TRIM1#,2#; URJ202 BLACK,TRIM2# |
58903-60350-C0 |
US $160.74 |
||
|
58903A
|
58903A
58903-60690-A0 Panel Sub-Assy, Console Rear End[08.2015 - 08.2017] VDJ200..RHD..VX;URJ202,VDJ200..LHD FLAXEN,TRIM0# |
58903-60690-A0 |
US $157.25 |
||
|
58903A
|
58903A
58903-60690-C0 Panel Sub-Assy, Console Rear End[08.2015 - 08.2017] URJ202..08S..VX BLACK,TRIM2#,4#; URJ202..VXR;URJ202..05S;VDJ200..LHD;VDJ200..RHD..VX BLACK,TRIM1#,2#,4# |
58903-60690-C0 |
from US $167.73 |
||
|
58905
|
58905
58905-60430-A2 Door Sub-Assy, Console Compartment[01.2012 - 08.2015] URJ202..LHD;VDJ200..RHD SHELL,TRIM0#; VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,SHELL,TRIM0# |
58905-60430-A2 |
from US $522.31 |
||
|
58905
|
58905
58905-60430-A5 Door Sub-Assy, Console Compartment[08.2015 - 08.2017] URJ202..VX FLAXEN,TRIM0#; VDJ200..LHD..VX SEAT COVER MATERIAL-NATURAL LEATHER,FLAXEN,TRIM0# |
58905-60430-A5 |
US $564.93 |
||
|
58905
|
58905
58905-60430-C2 Door Sub-Assy, Console Compartment[01.2012 - 08.2015] URJ202..LHD;VDJ200..RHD BLACK,TRIM2#; VDJ200..LHD SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
58905-60430-C2 |
US $621.71 |
||
|
58905
|
58905
58905-60430-C5 Door Sub-Assy, Console Compartment[08.2015 - 08.2017] URJ202..VX BLACK,TRIM2#,4#; VDJ200..LHD..VX SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#,4# |
58905-60430-C5 |
US $604.53 |
||
|
58905
|
58905
58905-60610-A0 Door Sub-Assy, Console Compartment[08.2015 - 08.2017] VDJ200..LHD..VX FLAXEN/FLAXEN,TRIM0#; URJ202..05S;URJ202,VDJ200..LHD..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN/FLAXEN,TRIM0# |
58905-60610-A0 |
US $382.93 |
||
|
58905
|
58905
58905-60610-C0 Door Sub-Assy, Console Compartment[08.2015 - 08.2017] VDJ200..LHD..VX BLACK/BLACK,TRIM1#,4#; URJ202..05S;URJ202,VDJ200..LHD..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK/BLACK,TRIM1#,4# |
58905-60610-C0 |
US $382.93 |
||
|
58907
|
58907
58907-60060 Hinge Sub-Assy, Console Compartment Door[01.2012 - 08.2015] VDJ200;URJ202..LHD |
58907-60060 |
US $70.59 |
||
|
58908A
|
58908A
58908-60040 Lock Sub-Assy, Console Compartment Door[01.2012 - 08.2015] VDJ200;URJ202..LHD |
58908-60040 |
from US $16.77 |
||
|
58941A
|
58941A
58809-60060-A0
Cover, Parking Brake Hole
[01.2012 - 08.2015] URJ202,VDJ200..LHD SHELL,TRIM0# |
58809-60060-A0 |
— | ||
|
58941A
|
58941A
58809-60060-C0
Cover, Parking Brake Hole
[01.2012 - 08.2015] VDJ200..LHD BLACK,TRIM1#,2#; URJ202..LHD BLACK,TRIM2# |
58809-60060-C0 |
— | ||
|
58941A
|
58941A
58809-60110-A0
Cover, Parking Brake Hole
[08.2015 - 08.2017] URJ202,VDJ200..LHD FLAXEN,TRIM0# |
58809-60110-A0 |
— | ||
|
58941A
|
58941A
58809-60110-C0
Cover, Parking Brake Hole
[08.2015 - 08.2017] URJ202..08S..VX BLACK,TRIM2#,4#; VDJ200..LHD;URJ202..VXR;URJ202..05S BLACK,TRIM1#,2#,4# |
58809-60110-C0 |
— | ||
|
58959B
|
58959B
58959-60030 Cushion, Console Compartment Door[01.2012 - 08.2015] URJ202,VDJ200 |
58959-60030 |
US $1.56 |
||
|
58959C
|
58959C
58959-60060 Cushion, Instrument Panel[01.2012 - 08.2015] VDJ200;URJ202..LHD |
58959-60060 |
from US $1.44 |
||
|
58971
|
58971
58971-60060 Lock, Console Compartment Door[01.2012 - 08.2015] VDJ200;URJ202..LHD |
58971-60060 |
US $28.10 |
||
|
58971
|
58971
58971-60080-A0 Lock, Console Compartment Door[08.2015 - 08.2017] VDJ200..LHD..VX FLAXEN,TRIM0#; URJ202..05S;URJ202,VDJ200..LHD..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),FLAXEN,TRIM0# |
58971-60080-A0 |
US $28.10 |
||
|
58971
|
58971
58971-60080-C0 Lock, Console Compartment Door[08.2015 - 08.2017] VDJ200..LHD..VX BLACK,TRIM1#,4#; URJ202..05S;URJ202,VDJ200..LHD..VXR SEAT COVER MATERIAL-FABRIC(MOQUETTE),BLACK,TRIM1#,4# |
58971-60080-C0 |
US $28.10 |
||
|
58985
|
58985
58984-60040 Retainer, Console Box[08.2015 -] VDJ200..RHD..VX;URJ202,VDJ200..LHD |
58984-60040 |
US $2.04 |
||
|
58993
|
58993
58993-60090 Bracket, Console Box Mounting, Rear[05.2012 - 08.2015] URJ202,VDJ200 |
58993-60090 |
US $19.04 |
||
| replacement | |||||
|
58993
|
58993
86719-60310 Bracket, Console Box Mounting, Rear[05.2012 - 08.2015] URJ202,VDJ200 |
86719-60310 |
US $29.88 |
||
|
58993
|
58993
86719-60310 Bracket, Console Box Mounting, Rear[01.2012 - 05.2012] URJ202,VDJ200 |
86719-60310 |
US $29.88 |
||
|
58995A
|
58995A
58995-60070 Bracket, Console Box Mounting, No.1[01.2012 - 08.2015] URJ202,VDJ200 |
58995-60070 |
US $11.21 |
||
|
58996A
|
58996A
58996-60080 Bracket, Console Box Mounting, No.2[01.2012 - 08.2015] URJ202,VDJ200 |
58996-60080 |
US $16.77 |
||
|
9011906951
|
9011906951
90119-06951 BOLT WWASHER |
90119-06951 |
from US $0.82 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9046705171
|
9046705171
90467-05171 Clip, Instrument Panel |
90467-05171 |
from US $0.66 |
||
|
9046705172
|
9046705172
90467-05172 Clip, Instrument Panel, No.1 |
90467-05172 |
US $0.96 |
||
|
9167380616
|
9167380616
91673-80616 Bolt, W/washer |
91673-80616 |
from US $0.64 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9356055016
|
9356055016
93560-55016 Screw(For Mat Set Plate) |
93560-55016 |
from US $0.70 |
||
