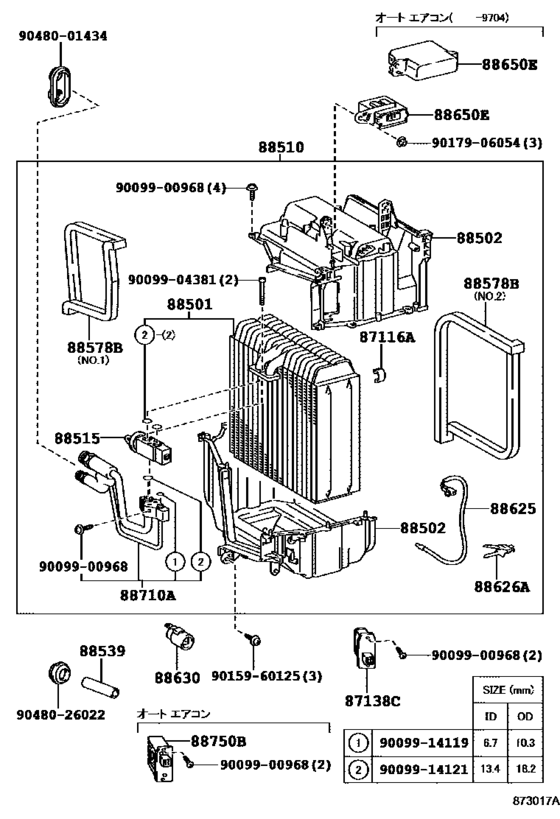

Heating & Air Conditioning - Cooler Unit ([05.1995 - ] ﾒ-ｶ ｵﾌﾟｼﾖﾝ (9505- )AE111) Diagram Toyota LEVIN/ CERES/ TRUENO/ MARINO
- Year
- 1995 - 2000
- Sales region
- Japan
- Frame
- AE111
- grade
- BZG
- body
- CP
- ENGINE
- 4AGE
- TRANSMISSION
- ATM
- Model
- TRUENO
- From
- 05.1995
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Trueno
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[05.1995 - 04.1997] AE111 |
87116-14010 |
— | ||
|
87138C
|
87138C
87138-12140
Resistor, Heater Blower
[05.1995 - 04.1997] AE11# |
87138-12140 |
— | ||
|
88501
|
88501
88501-12391 Evaporator Sub-Assy, Cooler, No.1[05.1995 - 04.1997] AE111 |
88501-12391 |
US $515.42 |
||
|
88502
|
88502
88502-12180
Case Sub-Assy, Cooling Unit
[05.1995 - 04.1997] AE111 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),UPPER |
88502-12180 |
— | ||
|
88502
|
88502
88502-12190
Case Sub-Assy, Cooling Unit
[05.1995 - 04.1997] AE111 UPPER |
88502-12190 |
— | ||
|
88502
|
88502
88502-12200
Case Sub-Assy, Cooling Unit
[05.1995 - 04.1997] AE111 LOWER |
88502-12200 |
— | ||
|
88510
|
88510
88510-1A300
Unit Assy, Cooler
[05.1995 - 04.1997] AE111 |
88510-1A300 |
— | ||
|
88510
|
88510
88510-1A480
Unit Assy, Cooler
[05.1995 - 04.1997] AE111 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
88510-1A480 |
— | ||
|
88515
|
88515
88515-20100
Valve, Cooler Expansion
[05.1995 - 04.1997] AE11# |
88515-20100 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-22240 Valve, Cooler Expansion[05.1995 - 04.1997] AE11# |
88515-22240 |
from US $132.85 |
||
|
88539
|
88539
88539-12120
Hose, Cooler Unit Drain, No.1
[05.1995 - 04.1997] AE11# |
88539-12120 |
— | ||
|
88539
|
88539
88539-12160
Hose, Cooler Unit Drain, No.1
[05.1995 - 04.1997] AE111 ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
88539-12160 |
— | ||
|
88578B
|
88578B
88578-12470
Packing, Cooling Unit, No.1
[05.1995 - 04.1997] AE111 ＮＯ．１ |
88578-12470 |
— | ||
|
88578B
|
88578B
88578-20470
Packing, Cooling Unit, No.1
[05.1995 - 04.1997] AE111 ＮＯ．２ |
88578-20470 |
— | ||
|
88625
|
88625
88625-12280 Thermistor, Cooler, No.1[05.1995 - 04.1997] AE11# |
88625-12280 |
US $12.23 |
||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[05.1995 - 04.1997] AE11# |
88626-28010 |
— | ||
|
88630
|
88630
88630-12140
Relay Assy, Cooler
[05.1995 - 04.1997] AE111 |
88630-12140 |
— | ||
|
88630
|
88630
88630-13010
Relay Assy, Cooler
[04.1997 - 08.2000] AE111 |
88630-13010 |
— | ||
|
88650E
|
88650E
88650-1E050
Amplifier Assy, Air Conditioner, No.1
[05.1995 - 04.1997] AE111..BZG,BZV |
88650-1E050 |
— | ||
|
88650E
|
88650E
88650-1E100
Amplifier Assy, Air Conditioner, No.1
[05.1995 - 04.1997] AE111..BZG,BZV ｱﾘ(ｵ-ﾄ ｴｱｺﾝ) |
88650-1E100 |
— | ||
|
88710A
|
88710A
88710-12330 Tube Assy, Air Conditioner[05.1995 - 04.1997] AE11# |
88710-12330 |
US $145.60 |
||
|
88750B
|
88750B
88750-12010
Transistor Assy, Blower Resistor
[05.1995 - 04.1997] AE111 |
88750-12010 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904381
|
9009904381
90099-04381
BOLT
|
90099-04381 |
— | ||
|
9009914119
|
9009914119
90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe) |
90099-14119 |
from US $2.27 |
||
| replacement | |||||
|
9009914119
|
9009914119
90099-14119-TH O RING |
90099-14119-TH |
US $0.72 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.79 |
||
|
9015960125
|
9015960125
90159-60125
New Genuine Part
|
90159-60125 |
— | ||
| replacement | |||||
|
9015960125
|
9015960125
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
|
9017906054
|
9017906054
90179-06054 NUT |
90179-06054 |
US $1.89 |
||
| replacement | |||||
|
9017906054
|
9017906054
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9048001434
|
9048001434
90480-01434 Grommet, (For Cooler Pipe) |
90480-01434 |
US $4.54 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
||
