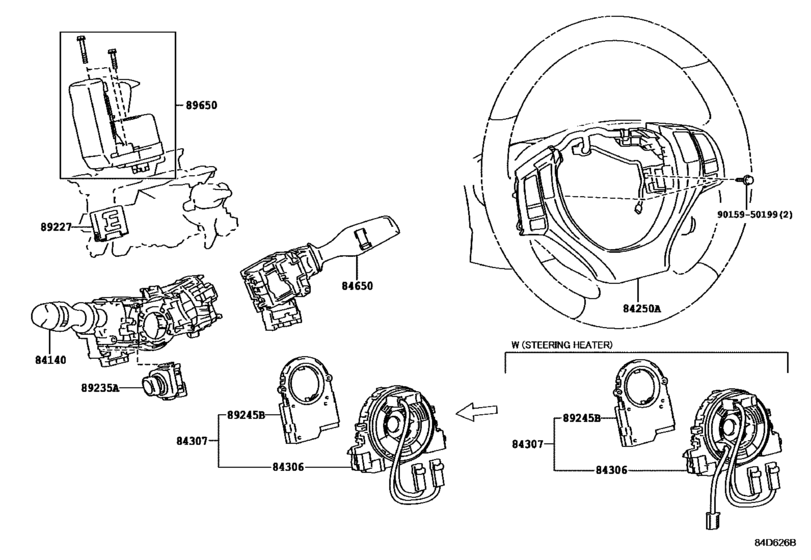

Switch & Relay & Computer ([06.2012 - 07.2015] STEERING (1206-1507)) Diagram Toyota LEXUS ES
- Year
- 2012 - 2015
- Sales region
- Europe
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- Model
- ES300 Hybrid
- From
- 06.2012
- To
- 07.2015
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- LHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-33290
Switch Assy, Headlamp Dimmer
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
84140-33290 |
— | ||
|
84250A
|
84250A
84250-33350
Switch Assy, Steering Pad
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
84250-33350 |
— | ||
| replacement | |||||
|
84250A
|
84250A
84250-33351
Switch Assy, Steering Pad
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
84250-33351 |
— | ||
|
84250A
|
84250A
84250-33360
Switch Assy, Steering Pad
[07.2013 - 07.2015] AVV60,GSV60 PRE-COLLISION SYSTEM-WITH |
84250-33360 |
— | ||
|
84250A
|
84250A
84250-33370
Switch Assy, Steering Pad
[06.2012 - 07.2015] ASV60,AVV60,GSV60 HEAD LAMP-DISCHARGE & *AHB & *DRL&LANE DEPARTURE ALERT-WITH |
84250-33370 |
— | ||
|
84250A
|
84250A
84250-33380
Switch Assy, Steering Pad
[07.2013 - 07.2015] AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-DISCHARGE & *AHB & *DRL&LANE DEPARTURE ALERT-W ITH |
84250-33380 |
— | ||
| replacement | |||||
|
84250A
|
84250A
84250-33381
Switch Assy, Steering Pad
[07.2013 - 07.2015] AVV60,GSV60 PRE-COLLISION SYSTEM-WITH&HEAD LAMP-DISCHARGE & *AHB & *DRL&LANE DEPARTURE ALERT-W ITH |
84250-33381 |
— | ||
|
84306
|
84306
84308-53010 Cable Sub-Assy, Spiral[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
84308-53010 |
US $211.46 |
||
| replacement | |||||
|
84306
|
84306
84308-53011 NR CABLE SET SPIRAL[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
84308-53011 |
from US $171.36 |
||
|
84306
|
84306
84308-53020 Cable Sub-Assy, Spiral[06.2012 - 07.2015] ASV60,AVV60,GSV60 STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER); ASV60,AVV60,GSV60 STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER) |
84308-53020 |
US $182.88 |
||
|
84307
|
84307
84307-33100
Cable Sub-Assy, Spiral W/sensor
[06.2012 - 08.2013] ASV60,AVV60,GSV60 |
84307-33100 |
— | ||
|
84307
|
84307
84307-33110
Cable Sub-Assy, Spiral W/sensor
[06.2012 - 08.2013] ASV60,AVV60,GSV60 STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER); ASV60,AVV60,GSV60 STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER) |
84307-33110 |
— | ||
|
84307
|
84307
84307-33120 Cable Sub-Assy, Spiral W/sensor[08.2013 - 07.2015] ASV60,AVV60,GSV60 |
84307-33120 |
US $399.98 |
||
|
84307
|
84307
84307-33130
Cable Sub-Assy, Spiral W/sensor
[08.2013 - 07.2015] ASV60,AVV60,GSV60 STEERING WHEEL-3-SPOKE,LEATHER & WOOD, WITH(HEATER); ASV60,AVV60,GSV60 STEERING WHEEL-3-SPOKE,LETHER & BAMBOO WITH(HEATER) |
84307-33130 |
— | ||
|
84650
|
84650
84652-33510
Switch Assy, Windshield Wiper
[06.2012 - 07.2015] AVV60,GSV60; ASV60 G PACKAGE |
84652-33510 |
— | ||
|
89227
|
89227
89227-33040
Computer, Multiplex Tilt & Telescopic
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
89227-33040 |
— | ||
|
89235A
|
89235A
89235-33010 Switch, Tilt & Telescopic[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
89235-33010 |
US $35.26 |
||
|
89245B
|
89245B
89245-39015 Sensor, Steering[06.2012 - 08.2013] ASV60,AVV60,GSV60 |
89245-39015 |
from US $202.60 |
||
|
89245B
|
89245B
89245-39055 Sensor, Steering[08.2013 - 07.2015] ASV60,AVV60,GSV60 |
89245-39055 |
US $196.56 |
||
|
89650
|
89650
89650-33420
Computer Assy, Power Steering
[06.2012 - 07.2014] AVV60 |
89650-33420 |
— | ||
| replacement | |||||
|
89650
|
89650
89650-33690
Computer Assy, Power Steering
[06.2012 - 07.2014] AVV60 |
89650-33690 |
— | ||
|
89650
|
89650
89650-33690
Computer Assy, Power Steering
[08.2014 - 07.2015] AVV60 |
89650-33690 |
— | ||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
||
