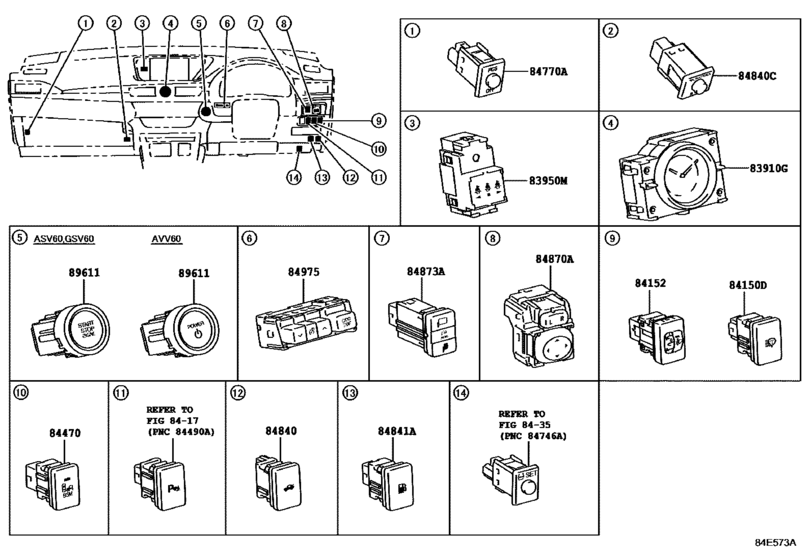

Switch & Relay & Computer ([08.2013 - 07.2015] INSTRUMENT PANEL 1/2 (1308-1507)RHD) Diagram Toyota LEXUS ES
- Year
- 2013 - 2018
- Sales region
- General
- Frame
- AVV60
- body
- SED
- ENGINE
- 2ARFXE
- TRANSMISSION
- CVT
- DESTINATION
- GEN
- Model
- ES300 Hybrid
- From
- 08.2013
- No.of Doors
- 4D
- Vehicle Model
- ES300 Hybrid
- Driver's Position
- RHD
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83910G
|
83910G
83910-33230
Clock Assy
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
83910-33230 |
— | ||
|
84150D
|
84150D
84150-33060
Switch Assy, Headlamp Cleaner
[06.2012 - 01.2015] ASV60..GCC;AVV60,GSV60..CHI,GCC,GEN; ASV60..CHI HEAD LAMP-DISCHARGE & *AHB & *DRL; ASV60..CHI,GEN HEAD LAMP-DISCHARGE & *DRL |
84150-33060 |
— | ||
| replacement | |||||
|
84150D
|
84150D
84150-33061
Switch Assy, Headlamp Cleaner
[06.2012 - 01.2015] ASV60..GCC;AVV60,GSV60..CHI,GCC,GEN; ASV60..CHI HEAD LAMP-DISCHARGE & *AHB & *DRL; ASV60..CHI,GEN HEAD LAMP-DISCHARGE & *DRL |
84150-33061 |
— | ||
|
84150D
|
84150D
84150-33061
Switch Assy, Headlamp Cleaner
[02.2015 - 07.2015] ASV60..GCC;AVV60,GSV60..CHI,GCC,GEN; ASV60..CHI HEAD LAMP-DISCHARGE & *AHB & *DRL; ASV60..CHI,GEN HEAD LAMP-DISCHARGE & *DRL; ASV60,AVV60,GSV60..ARL D PACKAGE&HEAD LAMP-DISCHARGE & *DRL |
84150-33061 |
— | ||
|
84470
|
84470
84470-33030
Switch Assy, Warning Canceling
[06.2012 - 01.2015] GSV60..GCC;ASV60,AVV60..GEN BLIND SPOT MONITOR-WITH |
84470-33030 |
— | ||
| replacement | |||||
|
84470
|
84470
84470-33031
Switch Assy, Warning Canceling
[06.2012 - 01.2015] GSV60..GCC;ASV60,AVV60..GEN BLIND SPOT MONITOR-WITH |
84470-33031 |
— | ||
|
84470
|
84470
84470-33031
Switch Assy, Warning Canceling
[02.2015 - 07.2015] ASV60,AVV60,GSV60..ARL; GSV60..GCC;ASV60,AVV60..GEN BLIND SPOT MONITOR-WITH; ASV60,AVV60,GSV60..CHI,GCC,GEN BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
84470-33031 |
— | ||
|
84770A
|
84770A
84770-48020 Switch Assy, Pre-Collision System CancelPRECRASH SYSTEM CANCEL [02.2014 - 07.2015] AVV60..GEN PRE-COLLISION SYSTEM-WITH |
84770-48020 |
US $31.16 |
||
|
84840
|
84840
84840-33110
Switch Assy, Luggage Compartment Door Opening
[06.2012 - 01.2015] ASV60,AVV60,GSV60 |
84840-33110 |
— | ||
| replacement | |||||
|
84840
|
84840
84840-33111
Switch Assy, Luggage Compartment Door Opening
[06.2012 - 01.2015] ASV60,AVV60,GSV60 |
84840-33111 |
— | ||
|
84840
|
84840
84840-33111
Switch Assy, Luggage Compartment Door Opening
[02.2015 - 07.2015] ASV60,AVV60,GSV60 |
84840-33111 |
— | ||
|
84840C
|
84840C
84840-51020 Switch Assy, Luggage Door Opening, Cancel[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
84840-51020 |
from US $31.16 |
||
|
84841A
|
84841A
84841-33020
Switch, Fuel Lid Opener
[06.2012 - 12.2014] ASV60,AVV60,GSV60 |
84841-33020 |
— | ||
| replacement | |||||
|
84841A
|
84841A
84841-33021
Switch, Fuel Lid Opener
[06.2012 - 12.2014] ASV60,AVV60,GSV60 |
84841-33021 |
— | ||
|
84841A
|
84841A
84841-33021
Switch, Fuel Lid Opener
[01.2015 - 07.2015] ASV60,AVV60,GSV60 |
84841-33021 |
— | ||
|
84870A
|
84870A
84872-33020
Switch Assy, Outer Mirror
[06.2012 - 07.2015] GSV60;ASV60,AVV60..ARL,GCC,GEN; AVV60..CHI TAIWAN SPEC&G PACKAGE; ASV60..CHI F PACKAGE; ASV60..CHI G PACKAGE |
84872-33020 |
— | ||
|
84873A
|
84873A
84873-33060
Switch, Retractable Outer Mirror
[06.2012 - 07.2015] GSV60;ASV60,AVV60..ARL,GCC,GEN; AVV60..CHI TAIWAN SPEC&G PACKAGE; ASV60..CHI F PACKAGE; ASV60..CHI G PACKAGE |
84873-33060 |
— | ||
|
84975
|
84975
84975-33030
Switch, Trip
[06.2012 - 07.2015] ASV60,AVV60,GSV60 |
84975-33030 |
— | ||
|
89611
|
89611
89611-30131 Switch, Push Start[11.2012 - 05.2015] AVV60 |
89611-30131 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-30132 Switch, Push Start[11.2012 - 05.2015] AVV60 |
89611-30132 |
US $135.41 |
||
|
89611
|
89611
89611-30132 Switch, Push Start[06.2015 - 07.2015] AVV60 |
89611-30132 |
US $135.41 |
||
|
89611
|
89611
89611-30133 Switch, Push Start[03.2016 -] AVV60 |
89611-30133 |
US $122.30 |
||
