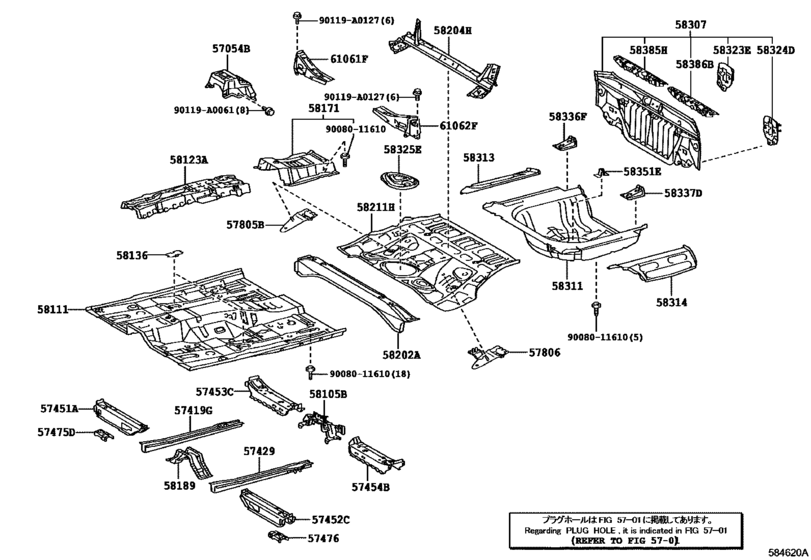

Floor Pan & Lower Back Panel ([10.2015 - ] FLOOR PANEL (1510- )) Diagram Toyota LEXUS ES
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- GSV60
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- Model
- ES350
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- ES350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57054B
|
57054B
57054-06080
Reinforcet Sub-Assy, Cross Member Floor, No.4
[10.2015 -] GSV60 |
57054-06080 |
— | ||
|
57419G
|
57419G
57419-07050
Reinforcement, Front Floor Under, Rear Rh
[10.2015 -] GSV60 |
57419-07050 |
— | ||
|
57429
|
57429
57429-07010
Reinforcement, Front Floor Under, Rear Lh
[10.2015 -] GSV60 |
57429-07010 |
— | ||
|
57451A
|
57451A
57451-07040
Member, Front Floor Cross, Rh
[10.2015 -] GSV60 |
57451-07040 |
— | ||
|
57452C
|
57452C
57452-07011
Member, Front Floor Cross, Lh
[10.2015 -] GSV60 |
57452-07011 |
— | ||
|
57453C
|
57453C
57453-06060
Member, Front Floor Cross Side, Rh
[10.2015 -] GSV60 |
57453-06060 |
— | ||
|
57454B
|
57454B
57454-06060
Member, Front Floor Cross Side, Lh
[10.2015 -] GSV60 |
57454-06060 |
— | ||
|
57475D
|
57475D
57475-06020
Plate, Front Floor Crossmember, Rh
[10.2015 -] GSV60 |
57475-06020 |
— | ||
|
57476
|
57476
57476-06010
Plate, Front Floor Crossmember, Lh
[10.2015 -] GSV60 |
57476-06010 |
— | ||
|
57805B
|
57805B
57805-06020
Reinforcement Sub-Assy, Belt Anchor, Rh
[10.2015 -] GSV60 |
57805-06020 |
— | ||
|
57806
|
57806
57806-06020
Reinforcement Sub-Assy, Belt Anchor, Lh
[10.2015 -] GSV60 |
57806-06020 |
— | ||
|
58105B
|
58105B
58105-06010
Panel Sub-Assy, Front Floor Rear Upper Sub
[10.2015 -] GSV60 |
58105-06010 |
— | ||
|
58111
|
58111
58111-07042
Pan, Front Floor
[10.2015 -] GSV60 |
58111-07042 |
— | ||
|
58123A
|
58123A
58013-33070 Support, Shift & Select Lever[10.2015 -] GSV60 |
58013-33070 |
US $88.82 |
||
|
58136
|
58136
58136-06050
Cover, Front Floor Hole
[10.2015 -] GSV60 |
58136-06050 |
— | ||
|
58171
|
58171
58171-07050
Reinforcement, Parking Brake Base
[10.2015 -] GSV60 |
58171-07050 |
— | ||
|
58189
|
58189
58189-33050 Reinforcement, Exhaust Pipe Clamp Bracket[10.2015 -] GSV60 |
58189-33050 |
US $55.47 |
||
|
58202A
|
58202A
58202-06050
Pan Sub-Assy, Center Floor, Front
[10.2015 -] GSV60 |
58202-06050 |
— | ||
|
58204H
|
58204H
58204-06040
Pan Sub-Assy, Center Floor, Rear
[10.2015 -] GSV60 |
58204-06040 |
— | ||
|
58211H
|
58211H
58211-06201
Pan, Center Floor
[10.2015 -] GSV60 |
58211-06201 |
— | ||
|
58307
|
58307
58307-06210
Panel Sub-Assy, Body Lower Back
[10.2015 -] GSV60 |
58307-06210 |
— | ||
|
58311
|
58311
58311-06151
Pan, Rear Floor
[10.2015 -] GSV60 |
58311-06151 |
— | ||
|
58313
|
58313
58313-06120 Panel, Rear Floor Side, Rh[10.2015 -] GSV60 |
58313-06120 |
US $58.23 |
||
|
58314
|
58314
58314-06120 Panel, Rear Floor Side, Lh[10.2015 -] GSV60 |
58314-06120 |
US $56.84 |
||
|
58323E
|
58323E
58303-06040
Reinforcement, Rear Bumper Arm Support, Rh
[10.2015 -] GSV60 |
58303-06040 |
— | ||
|
58324D
|
58324D
58304-06040
Reinforcement, Rear Bumper Arm Support, Lh
[10.2015 -] GSV60 |
58304-06040 |
— | ||
|
58325E
|
58325E
58325-06061
Cover, Rear Floor Service Hole
[10.2015 - 03.2016] GSV60 |
58325-06061 |
— | ||
|
58325E
|
58325E
58325-0W022
Cover, Rear Floor Service Hole
[03.2016 -] GSV60 |
58325-0W022 |
— | ||
|
58336F
|
58336F
58336-06070 Reinforcement, Rear Floor Pan[10.2015 -] GSV60 |
58336-06070 |
US $22.33 |
||
|
58337D
|
58337D
58336-06070 Reinforcement, Rear Floor Pan[10.2015 -] GSV60 |
58336-06070 |
US $22.33 |
||
|
58351E
|
58351E
58351-06030
Bracket, Spare Wheel Clamp
[10.2015 -] GSV60 |
58351-06030 |
— | ||
|
58385H
|
58385H
58385-06140
Bracket, Rear Bumper Cover, No.1
[10.2015 -] GSV60 |
58385-06140 |
— | ||
|
58386B
|
58386B
58386-06060
Bracket, Rear Bumper Cover, No.2
[10.2015 -] GSV60 |
58386-06060 |
— | ||
|
61061F
|
61061F
61061-06032
Gusset Sub-Assy, Quarter Wheel House, No.1
[10.2015 -] GSV60 |
61061-06032 |
— | ||
|
61062F
|
61062F
61062-06032
Gusset Sub-Assy, Quarter Wheel House, No.2
[10.2015 -] GSV60 |
61062-06032 |
— | ||
|
90119A0061
|
90119A0061
90119-A0061
New Genuine Part
|
90119-A0061 |
— | ||
|
90119A0127
|
90119A0127
90119-A0127
New Genuine Part
|
90119-A0127 |
— | ||
|
9008011610
|
9008011610
90080-11610
Bolt, Weld(For Front Floor Pan)
|
90080-11610 |
— |
