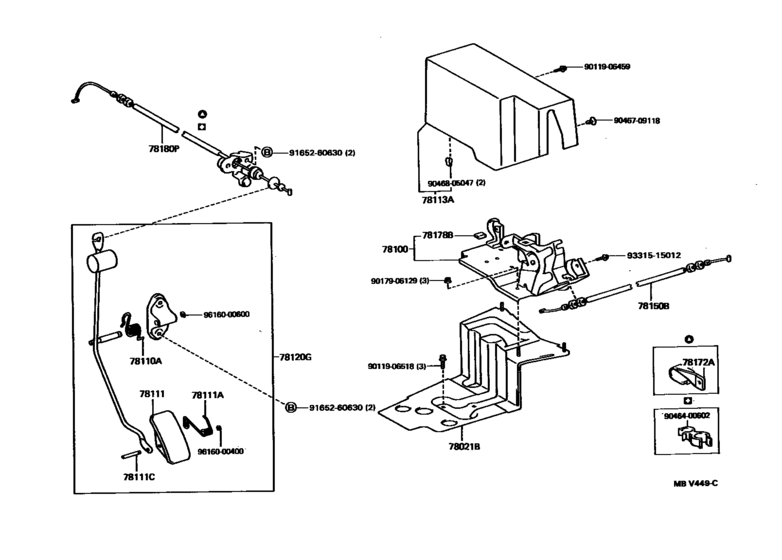

Accelerator Link ([07.1991 - ] (9107- )) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78021B
|
78021B
78021-33010 Bracket Sub-Assy, Accel Control Bellcrank[07.1991 - 08.1996] MCV10,VCV10 |
78021-33010 |
US $68.87 |
||
|
78100
|
78100
78100-33010 Link Assy, Accelerator[07.1991 - 08.1996] MCV10,VCV10 |
78100-33010 |
US $211.12 |
||
|
78110A
|
78110A
90508-26075 Spring (For Accelerator Pedal Rod)[07.1991 - 08.1996] MCV10,VCV10..ATM |
90508-26075 |
US $3.04 |
||
|
78111
|
78111
78111-32010 Pedal, Accelerator[07.1991 - 08.1996] MCV10,VCV10 |
78111-32010 |
US $8.56 |
||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[09.1991 - 08.1996] MCV10,VCV10 |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[07.1991 - 08.1996] MCV10,VCV10 |
90249-05001 |
US $3.32 |
||
|
78113A
|
78113A
78113-33010
Cover, Auto Drive Accelerator Link
[07.1991 - 08.1996] MCV10,VCV10 |
78113-33010 |
— | ||
|
78120G
|
78120G
78120-33010 Rod Assy, Accelerator PedalACCELERATOR PEDAL [07.1991 - 08.1996] MCV10,VCV10..ATM |
78120-33010 |
US $66.98 |
||
|
78150B
|
78150B
78150-33050 Cable Assy, Accelerator Auto Drive[07.1991 - 08.1996] MCV10,VCV10 |
78150-33050 |
US $52.85 |
||
|
78172A
|
78172A
78172-33010 Bracket, Accelerator Control No.2 Rod, Lh[07.1991 - 08.1996] MCV10,VCV10 |
78172-33010 |
US $12.38 |
||
|
78178B
|
78178B
78178-14010
Damper, Accel Control No.4 Rod Bracket
[07.1991 - 08.1996] MCV10,VCV10 |
78178-14010 |
— | ||
|
78180P
|
78180P
78180-33100 Cable Assy, Accelerator ControlACCELERATOR CONTROL [07.1991 - 08.1996] MCV10,VCV10 |
78180-33100 |
US $58.24 |
||
|
9011906459
|
9011906459
90119-06459 New Genuine Part |
90119-06459 |
US $1.51 |
||
|
9011906518
|
9011906518
90119-06518 BOLT W-WASHER |
90119-06518 |
US $1.92 |
||
|
9017906129
|
9017906129
90179-06129 NUT |
90179-06129 |
US $1.44 |
||
|
9046400602
|
9046400602
90464-00602
New Genuine Part
|
90464-00602 |
— | ||
|
9046709118
|
9046709118
90467-09118 Clip(For Hood Insulator) |
90467-09118 |
US $3.04 |
||
|
9046805047
|
9046805047
90468-05047 CLIP |
90468-05047 |
US $1.44 |
||
|
9165260630
|
9165260630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.78 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
