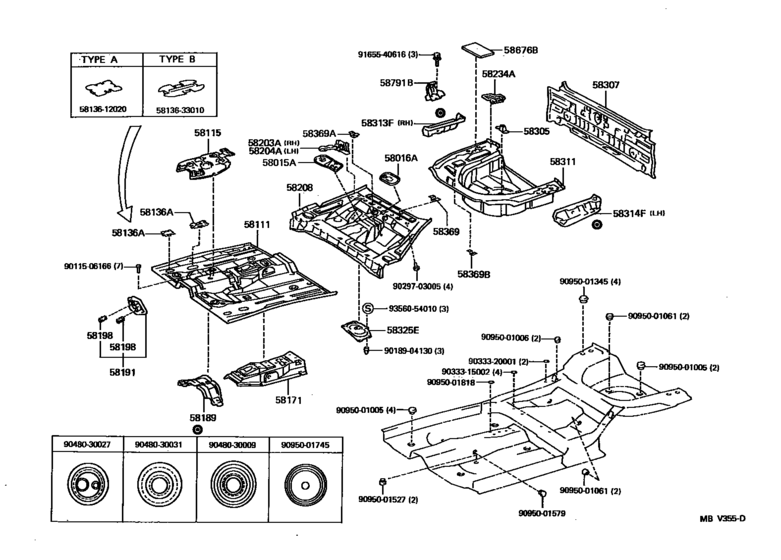

Floor Pan & Lower Back Panel ([07.1991 - ] (9107- )) Diagram Toyota LEXUS ES
- Year
- 1993 - 1996
- Sales region
- U.S.A.
- Frame
- MCV10
- ENGINE
- 1MZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- ES300
- From
- 08.1993
- To
- 08.1996
- Vehicle Model
- ES300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58015A
|
58015A
58015-33010 Reinforce Sub-Assy, Belt Anchor, No.3 Rh[07.1991 - 08.1996] MCV10,VCV10 |
58015-33010 |
US $29.12 |
||
|
58016A
|
58016A
58016-33020 Reinforce Sub-Assy, Belt Anchor, No.3 Lh[08.1993 - 08.1996] MCV10 |
58016-33020 |
US $24.32 |
||
|
58111
|
58111
58111-33010 Pan, Front Floor[07.1991 - 08.1996] MCV10,VCV10 |
58111-33010 |
US $711.98 |
||
| replacements | |||||
|
58111
|
58111
58111-33030 Pan, Front Floor[07.1991 - 08.1996] MCV10,VCV10 |
58111-33030 |
US $713.44 |
||
|
58111
|
58111
90333-30002 Cover, Front Floor Hole[07.1991 - 08.1996] MCV10,VCV10 |
90333-30002 |
from US $1.05 |
||
|
58115
|
58115
58013-33010 Reinforcement, Front Floor Panel, Front[07.1991 - 08.1994] MCV10,VCV10 |
58013-33010 |
US $122.30 |
||
| replacement | |||||
|
58115
|
58115
58013-33020 Reinforcement, Front Floor Panel, Front[07.1991 - 08.1994] MCV10,VCV10 |
58013-33020 |
US $122.30 |
||
|
58115
|
58115
58013-33020 Reinforcement, Front Floor Panel, Front[08.1994 - 08.1996] MCV10 |
58013-33020 |
US $122.30 |
||
|
58136A
|
58136A
58136-12020 Cover, Front Floor Service Hole[07.1991 - 08.1996] MCV10,VCV10 TYPE A |
58136-12020 |
US $2.91 |
||
|
58136A
|
58136A
58136-33010 Cover, Front Floor Hole[07.1991 - 08.1996] MCV10,VCV10 TYPE B |
58136-33010 |
US $3.06 |
||
|
58171
|
58171
58107-33010 Reinforcement, Parking Brake Base[07.1991 - 02.1996] MCV10,VCV10 |
58107-33010 |
US $119.39 |
||
|
58171
|
58171
58107-33040 Reinforcement, Parking Brake Base[02.1996 - 08.1996] MCV10 |
58107-33040 |
US $116.48 |
||
|
58189
|
58189
58189-33010 Reinforcement, Exhaust Pipe Clamp Bracket[07.1991 - 08.1996] MCV10,VCV10 |
58189-33010 |
US $87.36 |
||
|
58191
|
58191
58192-33010 Footrest, Front FloorFRONT FLOOR [07.1991 - 08.1996] MCV10,VCV10 |
58192-33010 |
US $39.17 |
||
|
58198
|
58198
58198-33010 Clip, Footrest[07.1991 - 08.1996] MCV10,VCV10 |
58198-33010 |
US $4.02 |
||
|
58203A
|
58203A
58203-33010 Reinforcement Sub-Assy, Center Floor Panel, Rh[07.1991 - 08.1996] MCV10,VCV10 |
58203-33010 |
US $18.78 |
||
|
58204A
|
58204A
58204-33010 Reinforcement Sub-Assy, Center Floor Panel, Lh[07.1991 - 08.1996] MCV10,VCV10 |
58204-33010 |
US $18.78 |
||
|
58208
|
58208
58211-33050 Pan, Center Floor[08.1993 - 08.1996] MCV10 |
58211-33050 |
US $502.32 |
||
| replacements | |||||
|
58208
|
58208
58211-33040 Pan, Center Floor[08.1993 - 08.1996] MCV10 |
58211-33040 |
US $502.32 |
||
|
58208
|
58208
90333-25001 Plug, Hole(For Hood)[08.1993 - 08.1996] MCV10 |
90333-25001 |
from US $1.31 |
||
|
58234A
|
58234A
58234-33010 Bracket, Exhaust Pipe Mounting, Inner[07.1991 - 08.1994] MCV10,VCV10 |
58234-33010 |
US $23.88 |
||
|
58234A
|
58234A
58234-41010 Bracket, Exhaust Pipe Mounting, Inner[08.1994 - 08.1996] MCV10 |
58234-41010 |
US $23.59 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[07.1991 - 08.1996] MCV10,VCV10 |
58351-33010 |
US $6.56 |
||
|
58307
|
58307
58307-33020 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [07.1991 - 08.1994] MCV10,VCV10 |
58307-33020 |
US $298.48 |
||
|
58307
|
58307
58307-33060 Panel Sub-Assy, Body Lower BackBODY LOWER BACK [08.1994 - 08.1996] MCV10 |
58307-33060 |
US $291.20 |
||
|
58311
|
58311
58311-33010 Pan, Rear Floor[07.1991 - 08.1996] MCV10,VCV10 |
58311-33010 |
US $511.06 |
||
| replacement | |||||
|
58311
|
58311
58311-06010 Pan, Rear Floor[07.1991 - 08.1996] MCV10,VCV10 |
58311-06010 |
US $503.78 |
||
|
58313F
|
58313F
58305-33010 Extension, Rear Floor Pan To Quarter Panel, Rh[07.1991 - 08.1996] MCV10,VCV10 |
58305-33010 |
US $68.14 |
||
|
58314F
|
58314F
58314-33010 Extension, Rear Floor Pan To Quarter Panel, Lh[07.1991 - 08.1996] MCV10,VCV10 |
58314-33010 |
US $57.95 |
||
|
58325E
|
58325E
58325-33010 Cover, Rear Floor Service Hole[07.1991 - 08.1996] MCV10,VCV10 |
58325-33010 |
US $18.78 |
||
|
58369
|
58369
58369-32010 Bracket, Insulator Heat[07.1991 - 08.1996] MCV10,VCV10 |
58369-32010 |
US $3.32 |
||
|
58369A
|
58369A
58369-32010 Bracket, Insulator Heat[07.1991 - 08.1996] MCV10,VCV10 |
58369-32010 |
US $3.32 |
||
|
58369B
|
58369B
58369-32010 Bracket, Insulator Heat[07.1991 - 08.1994] MCV10,VCV10 |
58369-32010 |
US $3.32 |
||
|
58676B
|
58676B
58676-33010 Pad, Rear Floor Silencer, No.1 Rh[11.1992 - 08.1996] MCV10,VCV10 |
58676-33010 |
US $5.82 |
||
|
58791B
|
58791B
58791-32060 Carrier, Jack[07.1991 - 08.1996] MCV10,VCV10 |
58791-32060 |
US $15.14 |
||
|
5813612020
|
5813612020
58136-12020 Cover, Front Floor Service Hole |
58136-12020 |
US $2.91 |
||
|
5813633010
|
5813633010
58136-33010 Cover, Front Floor Hole |
58136-33010 |
US $3.06 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9018904130
|
9018904130
90189-04130 GROMMET SCREW |
90189-04130 |
from US $1.05 |
||
|
9029703005
|
9029703005
90297-03005 New Genuine Part |
90297-03005 |
US $1.02 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9048030009
|
9048030009
90480-30009
New Genuine Part
|
90480-30009 |
— | ||
|
9048030027
|
9048030027
90480-30027 New Genuine Part |
90480-30027 |
US $3.20 |
||
|
9048030031
|
9048030031
90480-30031 New Genuine Part |
90480-30031 |
US $2.77 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001345
|
9095001345
90950-01345 New Genuine Part |
90950-01345 |
US $6.40 |
||
|
9095001527
|
9095001527
90950-01527 PLUG |
90950-01527 |
US $1.76 |
||
|
9095001579
|
9095001579
90950-01579 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01579 |
US $2.62 |
||
| replacement | |||||
|
9095001579
|
9095001579
90950-01881 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01881 |
US $1.76 |
||
|
9095001745
|
9095001745
90950-01745 Cover, Front Floor Hole |
90950-01745 |
US $1.75 |
||
| replacement | |||||
|
9095001745
|
9095001745
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095001818
|
9095001818
90950-01818 Plug, Hole(For Front Fender) |
90950-01818 |
US $2.48 |
||
| replacement | |||||
|
9095001818
|
9095001818
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9356054010
|
9356054010
93560-54010 SCREW |
93560-54010 |
US $1.12 |
||
